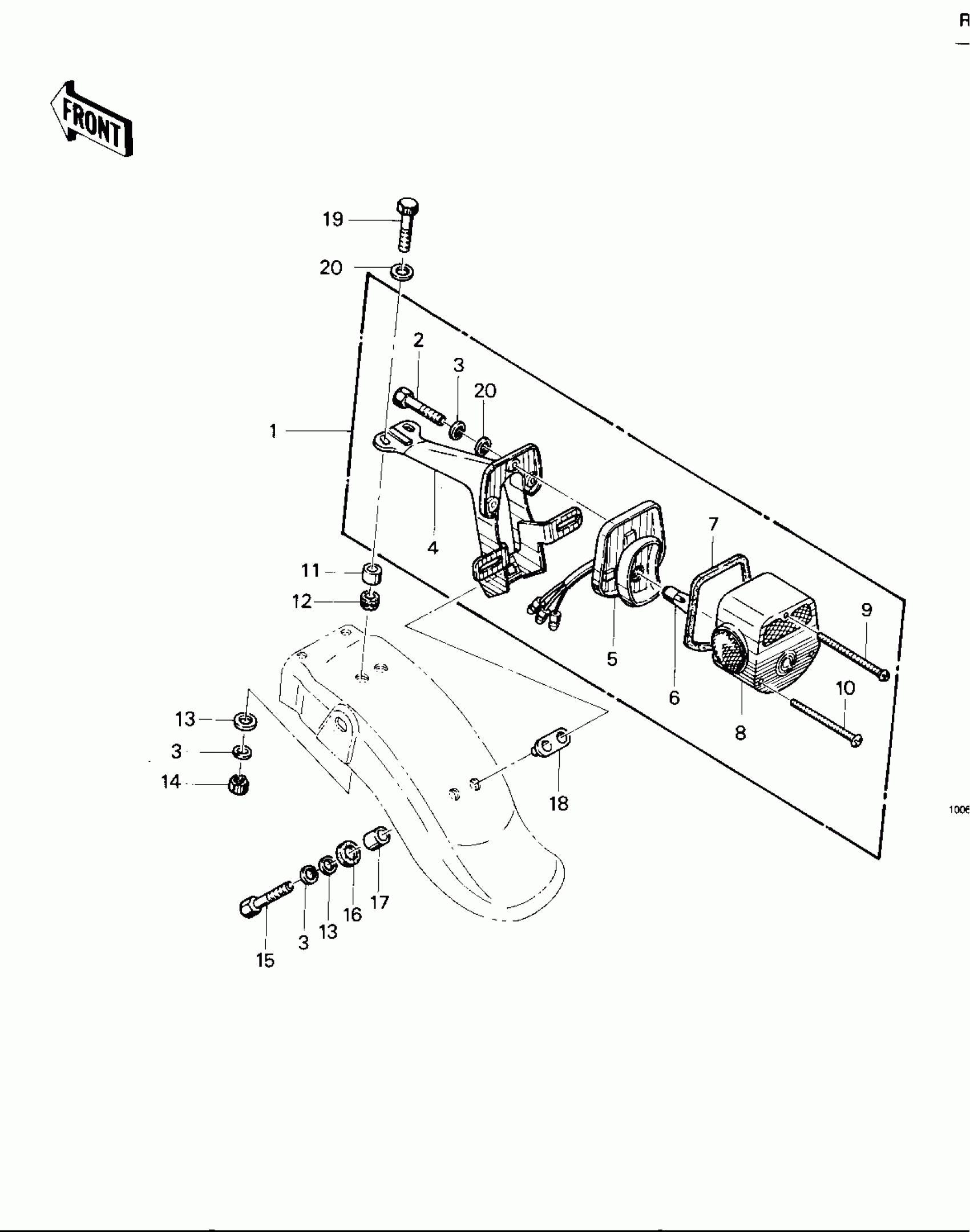

Kawasaki KZ400-D4 TAILLIGHT ('76 -'77 KZ400 - D3/D4) Diagram

#

Description
Price

1

LIGHT ASSY TAIL BLACK

23024-059-10

$149.57

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

BKT LICENSE PLT BLACK

23036-041-10

$62.29

5

BODY-COMP-TAIL LAMP

23027-1019

$68.34

5

BODY-COMP-TAIL LAMP

23027-1019

Unavailable

6

BULB,12V 27/8W

92069-059

$6.19

7

GASKET,TAIL LAMP LENS

23028-019

Unavailable

8

LENS,TAIL LAMP

23026-028

$57.72

9

SCREW

220R0455

$4.44

9

SCREW

220R0455

Unavailable

10

SCREW PAN HEAD 4X50

220E0450

Unavailable

11

COLLAR,6.8X10X8.5

92027-129

$3.81

12

DAMPER RUBBER

92075-076

$3.80

13

WASHER,6.5X20X1.6

92022-125

$1.08

14

NUT 6MM

311B0600

Unavailable

15

BOLT-UPSET

112G0625

Unavailable

16

DAMPER,FENDER

92075-121

$3.49

17

COLLAR,6.8X10X12

92027-162

$4.93

18

DAMPER RUBBER,FENDER

92075-273

Unavailable

19

BOLT 6X22

112B0622

Unavailable

20

WASHER PLAIN 6MM

411B0600

Unavailable
