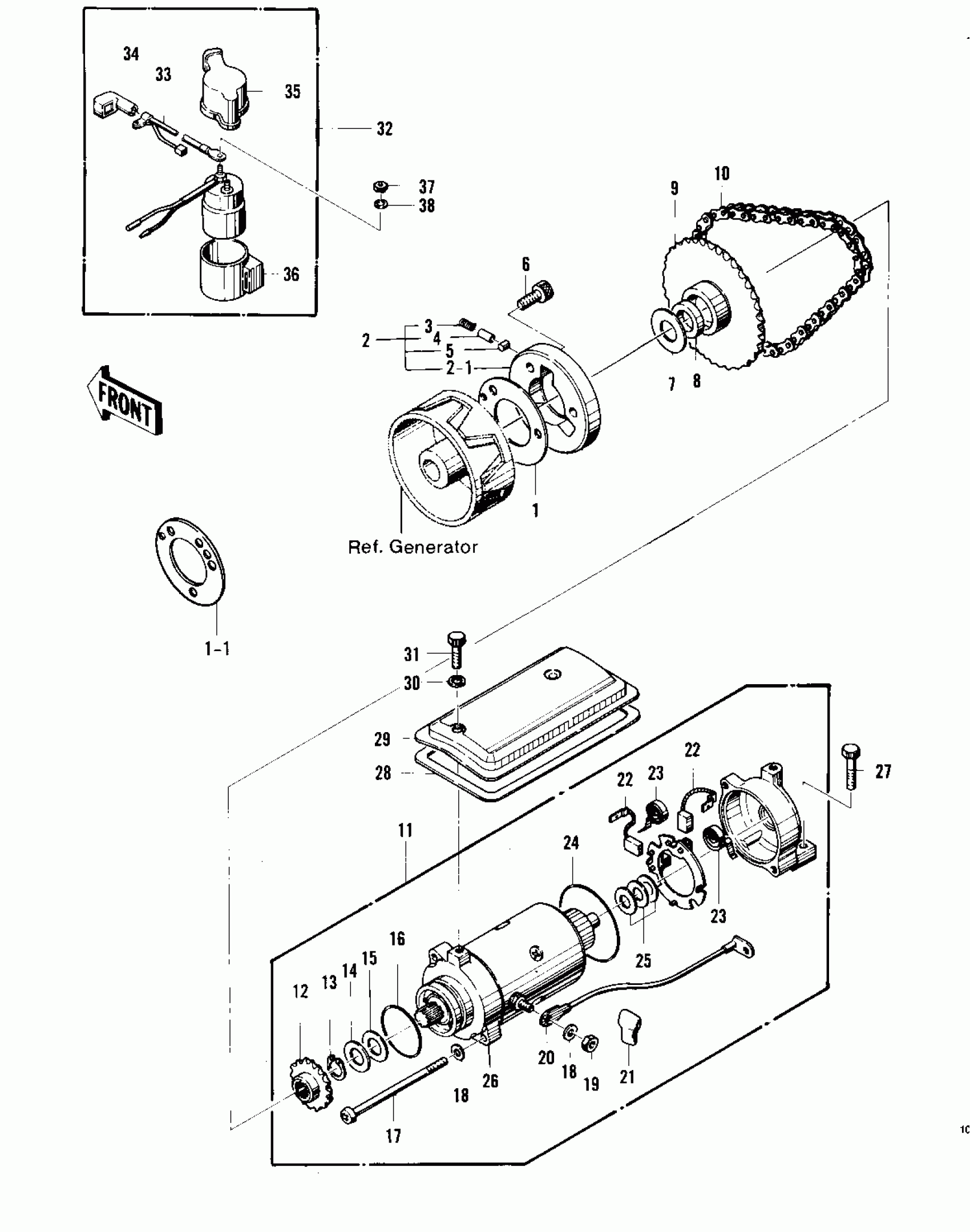

Kawasaki KZ400-D4 STARTER MOTOR/STARTER CLUTCH ('76 -'77 Diagram

#

Description
Price

1

WASHER,FREE WHEEL

92026-082

Unavailable

1-1

PLATE,CLUTCH STARTER

92026-112

Unavailable

2

CLUTCH ASSY,STARTER

13193-1001

Unavailable

2-1

CLUTCH ASSY,STARTER

13193-1001

Unavailable

3

SPRING

92081-110

$4.76

4

PIN

92043-087

$12.76

5

ROLLER,15X13

92122-004

$11.07

6

BOLT-SOCKET,8X16

120P0816

$4.15

7

WASHER,THRUST

92026-100

$9.55

8

OIL SEAL

92050-066

$10.20

9

GEAR STARTER CLUTCH

21170-001

$83.27

10

CHAIN,DYNAMO

92057-1009

$49.50

10

CHAIN,DYNAMO

92057-1009

Unavailable

11

MOTOR ASSY,STARTER

21163-1011

Unavailable

11

MOTOR ASSY,STARTER

21163-1011

Unavailable

12

SPROCKET-ASSY

21053-002

Unavailable

13

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

14

WASHER,PLAIN,14MM

21025-008

Unavailable

15

WASHER PLAIN 14MM

21025-009

Unavailable

16

RING-O,42.8MM

21027-005

Unavailable

17

SCREW PAN HEAD 6X110

220B06110

$3.58

18

WASHER SPRING 6MM

461F0600

$0.69

19

NUT 6MM

312B0600

$0.72

20

WIRE STRTER MOT LEAD

26010-035

$45.78

21

CAP,STARTING MOTOR

21017-020

$8.42

22

BRUSH CARBON

21039-004

$41.68

23

SPRING CARBON BRUSH

21040-004

Unavailable

24

"0" RING,62MM

21027-006

Unavailable

25

WASHER,PLAIN,9MM

21025-007

$3.60

26

.REPAIR KIT,KZ400 STAT

99990-536

$39.03

27

BOLT-UPSET

112G0625

$3.62

28

GASKET START MOT COV

21166-002

Unavailable

29

COVER STARTER MOTOR

21165-002

$16.38

30

WASHER,PLAIN,6MM

410D0600

$0.77

31

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

32

SWITCH ASSY,MAGNETIC

21164-006

$109.68

33

WIRE,LEAD,MAG SWITCH

26011-1027

$30.57

34

CAP,MAG SWTCH TERMNL

21017-021

$13.09

35

CAP,MAGNETIC SWITCH

21141-004

Unavailable

36

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

37

NUT 6MM

311B0600

$0.93

38

WASHER SPRING 6MM

461F0600

$0.69
