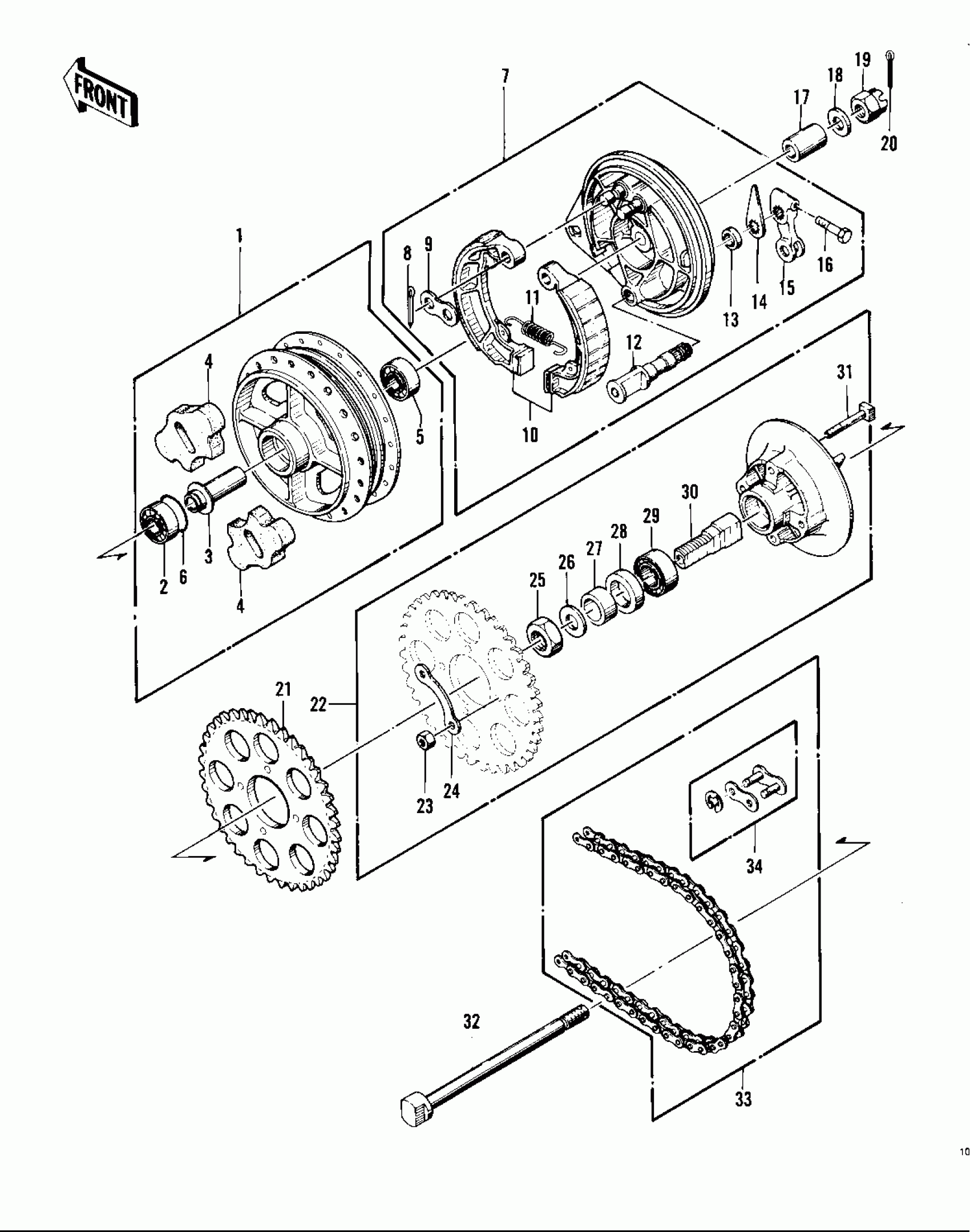

Kawasaki KZ400-D4 REAR HUB/BRAKE/CHAIN ('76 -'77 KZ400 - D Diagram
#
Description
Price
1
DRUM ASY,RR BK,BUFF
42005-044-80
$536.22
2
BEARING-BALL,#6303C3
601B6303
$8.29
3
SPACER,RR HUB BEARING
42010-027
$18.88
4
DAMPER REAR HUB SHOCK
42014-008
Unavailable
5
BEARING BALL #6303Z
601B6303Z
$24.50
6
O RING,60MM
671B2560
$6.91
7
PANEL-ASY,RR BRK,BUFF
42006-055-80
$316.58
8
PIN COTTER 2.0X25
550D2025
$2.81
9
WASHER,BRAKE SHOE
41045-007
Unavailable
10
SHOE REAR BRAKE
42019-003
$47.81
11
SPRING BRAKE SHOE
41049-003
$3.66
12
CAM SHAFT,REAR BRAKE
42026-024
$23.28
13
SEAL,BRAKE CAM
41051-001
$4.26
14
INDICATOR,RR BK SHOE
41085-016
Unavailable
15
LEVER,REAR BRAKE CAM
42029-036
$55.33
16
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
17
COLLAR,REAR AXLE
42032-053
$35.89
18
WASHER,17.3X32X3.2
42046-009
$7.84
19
NUT,16MM
92015-055
$11.50
20
PIN-COTTER,4.0X35
550D4035
$2.17
21
REAR SPROCKET,45T
42041-145
$171.45
22
COUPLING ASSY,RR HUB
42008-024
$172.78
23
NUT-HEX-FINE,10MM
314B1000
$0.67
24
WASHER,SPROCKET LOCK
92088-005
$6.24
25
NUT SLEEVE
42045-006
Unavailable
26
WASHER,PLAIN,24MM
92022-293
$4.64
27
COLLAR,RR HUB COUPLNG
42037-026
$15.47
28
SEAL-OIL,TWC35527
92052-006
Unavailable
29
BEARING-BALL,#6205C3
601B6205
$19.57
30
SLEEVE,RR HUB COUPLNG
42036-021
$39.29
31
BOLT,HUB SPROCKET,10X55
92003-156
Unavailable
32
AXLE,REAR
42031-050
$53.30
33
DR CHAIN 530X100
92057-092
$162.09
34
CHAIN JOINT 530
92058-008
Unavailable
