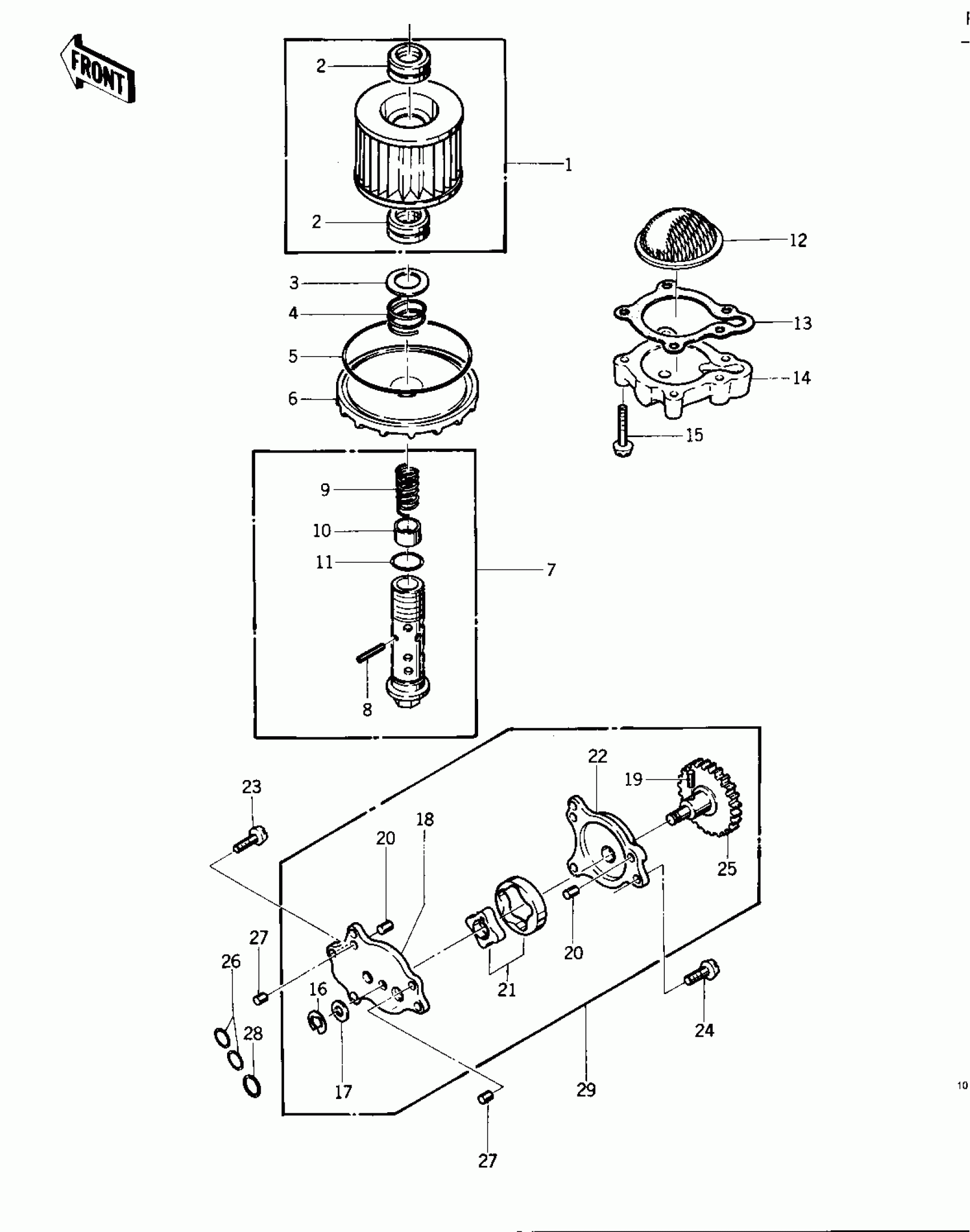

Kawasaki KZ400-D4 OIL PUMP/OIL FILTER ('76 -'77 KZ400 - D3 Diagram

#

Description
Price

1

ELEMENT-OIL FILTER

16099-003

$12.20

2

GROMMET,OIL FILTER

16135-010

$3.79

3

WASHER,20.5X30X0.5,STEEL

92022-144

$7.62

4

SPRING,OIL FILTER

92081-1018

$4.65

4

SPRING,OIL FILTER

92081-1018

$4.65

5

O RING,90MM

671B2590

$9.91

6

COVER,OIL FILTER

16101-004

$44.52

7

VALVE,OIL FILTER

16126-1108

$41.98

7

VALVE,OIL FILTER

16126-1108

$41.98

8

PIN,SPRING,2X20

92043-111

$6.27

9

SPRING

92081-133

Unavailable

10

PISTON

92136-001

Unavailable

11

O RING,16MM

670B2016

$1.36

12

FILTER,OIL

16111-003

$20.68

13

GASKET,OIL FILTER COVER

11009-1874

$7.55

14

COVER,OIL STRAINER

16101-003

$19.22

15

SCREW PAN HEAD 6X30

220B0630

$3.41

16

CIRCLIP 5MM

482K5000

Unavailable

17

WASHER,THRUST

92026-098

Unavailable

18

COVER,OIL PUMP

16142-002

$21.17

19

PIN-DOWEL,4X8

551A0408

$0.78

20

PIN-DOWEL,6X8

551A0608

$3.92

21

ROTOR ASSY,OIL PUMP

16154-001

$44.71

22

BODY,OIL PUMP

16141-002

$43.19

23

SCREW PAN HEAD 6X18

220B0618

$3.67

24

SCREW PAN HEAD 6X25

220B0625

$2.60

25

GEAR,OIL PUMP DRIVEN

16085-023

$77.66

26

"O" RING,11.5MM

92055-072

Unavailable

27

PIN-DOWEL,6X8

551A0608

$3.92

28

RING-O,13.5MM

92055-073

$10.04

29

OIL PUMP ASSY

16083-004

$154.58
