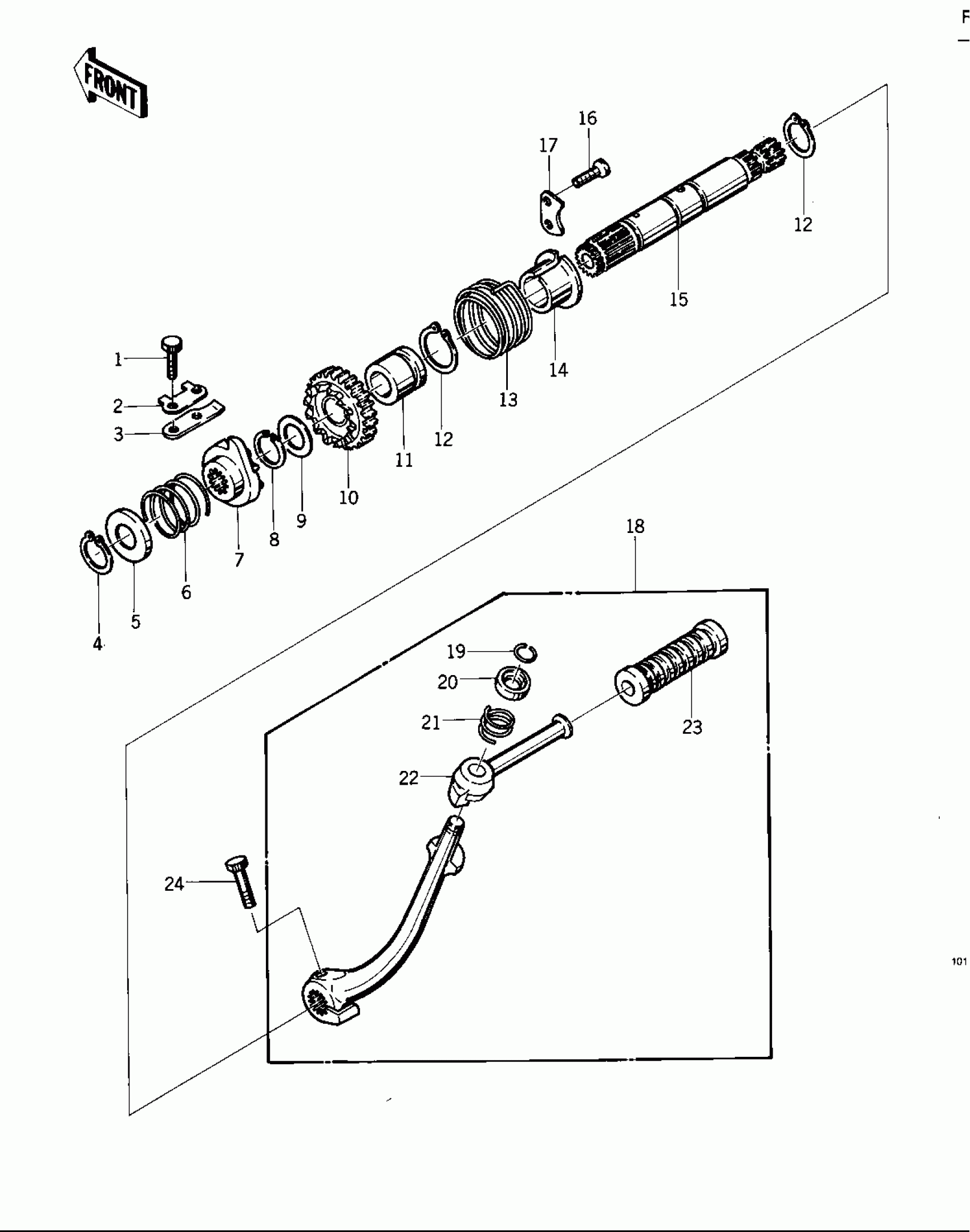

Kawasaki KZ400-D4 KICKSTARTER MECHANISM ('76 -'77 KZ400 - Diagram
#
Description
Price
1
BOLT-UPSET 6X14
112B0614
Unavailable
2
WASHER-LOCK
92024-036
Unavailable
3
STOPPER,KICKSTARTER
13072-012
Unavailable
4
CIRCLIP-TYPE-C,19MM
480J1900
$1.28
5
CAP,KICKSTARTER
92102-008
Unavailable
6
SPRING RATCHET
92081-104
$10.23
7
RATCHET,KICK SHAFT
13078-011
Unavailable
7
RATCHET,KICK SHAFT
13078-011
Unavailable
8
RING-SNAP,18MM
92033-029
$9.82
9
WASHER,20.5X30X1,STEEL
92022-112
$8.86
10
GEAR,KICKSTARTER
13068-031
Unavailable
11
BUSHING,KICK SHAFT
92028-175
$17.51
12
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
13
SPRING,KICK RETURN
92082-006
Unavailable
14
GUIDE,KICK SPRING
13070-009
Unavailable
15
SHAFT,KICKSTARTER
13066-036
Unavailable
16
SCREW-CSK-CROS,6X16
221B0616
$0.59
17
PLATE-DRUM LEV POSTON
13169-007
Unavailable
18
PEDAL ASY,KICKSTARTER
13058-053
Unavailable
19
CIRCLIP,KICK
92036-025
$4.83
19
CIRCLIP,KICK
92036-026
$3.14
20
WASHER,KICKPEDAL
92022-294
Unavailable
21
SPRING,KICK PEDAL
92081-136
Unavailable
22
PEDAL,KICKSTARTER
13060-017
Unavailable
23
DAMPER,KICK PEDAL
13063-004
$10.94
24
BOLT HEX HEAD 8X28
114G0828
$3.71
24
BOLT HEX HEAD 8X28
114G0828
$3.71
