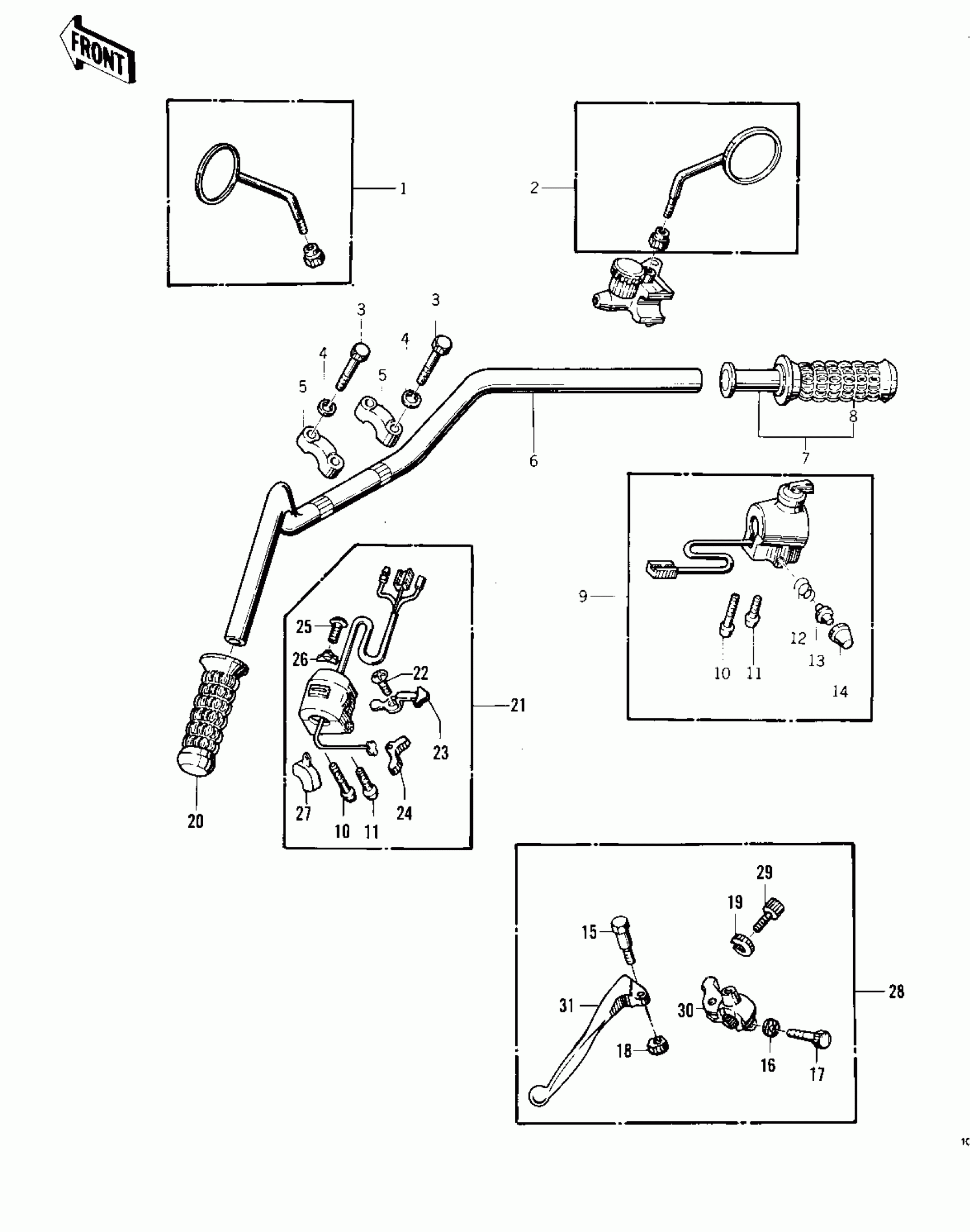

Kawasaki KZ400-D4 HANDLEBAR ('76 -'77 KZ400 - D3/D4) Diagram
#
Description
Price
1
REAR VIEW MIRROR,L.H
56003-019
Unavailable
1
REAR VIEW MIRROR,L.H
56003-019
Unavailable
2
REAR VIEW MIRROR,R.H
56002-029
Unavailable
2
REAR VIEW MIRROR,R.H
56002-029
Unavailable
3
BOLT 8X38
92001-1405
$16.50
4
WASHER SPRING 8MM
461F0800
$0.40
5
HOLDER-HANDLE,UPP
46012-008
$37.74
6
HANDLEBAR
46003-034
$115.35
7
GRIP ASSY,THROTTLE
46019-038
$118.44
8
RUBBER,R.H GRIP
46061-018
Unavailable
9
HOUSING ASSY,R.H
46091-1039
Unavailable
9
HOUSING ASSY,R.H
46091-1039
Unavailable
10
SCREW-PAN-CROS
220B0535
$3.70
11
SCREW PAN HEAD 5X30
220B0530
$3.41
12
SWITCH,PUSH BUTTON
27010-1009
$9.20
13
SWITCH,PUSH BUTTON
27010-1009
$9.20
14
SWITCH,PUSH BUTTON
27010-1009
$9.20
15
BOLT,HEX HEAD
92007-047
$13.77
16
WASHER PLAIN 6MM
411B0600
$2.84
17
BOLT 6X22
112B0622
$3.48
17
BOLT,6X22
110N0622
$3.23
18
NUT,LOCK,6MM
92019-008
$4.26
18
NUT,LOCK,5MM
92019-014
$4.50
19
NUT,CABLE ADUST NUT
46056-007
Unavailable
20
RUBBER,L.H GRIP
46075-028
$39.98
21
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
22
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
23
KNOB,LIGHTING SW L.H
46043-005
Unavailable
24
BUTTON, HORN PUSH
46028-006
Unavailable
25-27
L.H GRIP SWITCH KIT
99990-530
$2.94
25
SCREW PAN HEAD 3X5
220B0305A
$0.59
26
KNOB,LIGHTING SW L.H
46044-013
$12.37
27
SWITCH,L.H
46089-014
Unavailable
28
LEVER ASSY,CLUTCH
46076-052
$102.73
29
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
29
SCREW,CABLE ADJUSTER
92009-1022
Unavailable
30
HOLDER,CLUTCH LEVER
46094-017
Unavailable
31
LEVER-GRIP,CLUTCH
46092-023
$35.96
