1977 Kawasaki KZ400-D4 Generator/regulator/rectifier ('76 -'77 Diagram

← All diagrams

Find the part on the Generator/regulator/rectifier ('76 -'77 diagram for your 1977 Kawasaki KZ400-D4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

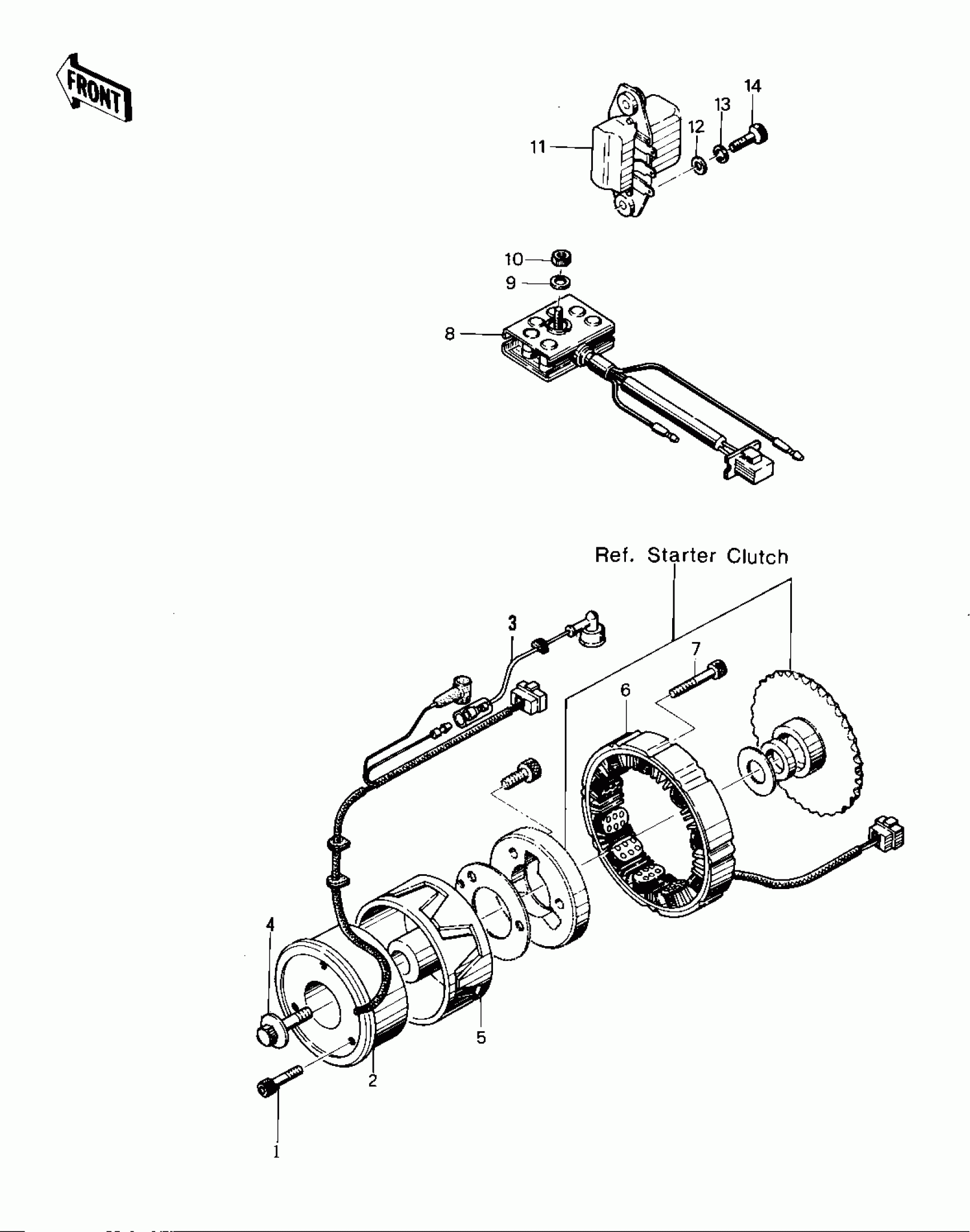

1977 Kawasaki KZ400-D4 Generator/regulator/rectifier ('76 -'77 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SOCKET,6X18

120P0618

1
Out of stock

2

COIL,FIELD

21077-004

1
Out of stock

3

WIRE DYNAMO LEAD

26011-087

1
Out of stock

4

BOLT,10X40

92002-1303

1
Out of stock

5

ROTOR

21007-030

1
Out of stock

6

STATOR ASSY

21076-021

1
Out of stock

7

BOLT,ALLEN,6X32

120Q0632

1
Out of stock

8

RECTIFIER

21061-030

1
Out of stock

8

RECTIFIER

21061-030

1
Out of stock

9

WASHER SPRING 6MM

461F0600

1
Out of stock

10

NUT 6MM

311B0600

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

21066-018

1
Out of stock

12

WASHER,6.5X20X1.6

92022-125

1
Out of stock

13

WASHER SPRING 6MM

461F0600

1
Out of stock

14

BOLT-UPSET,6X20

112G0620

1
Out of stock
