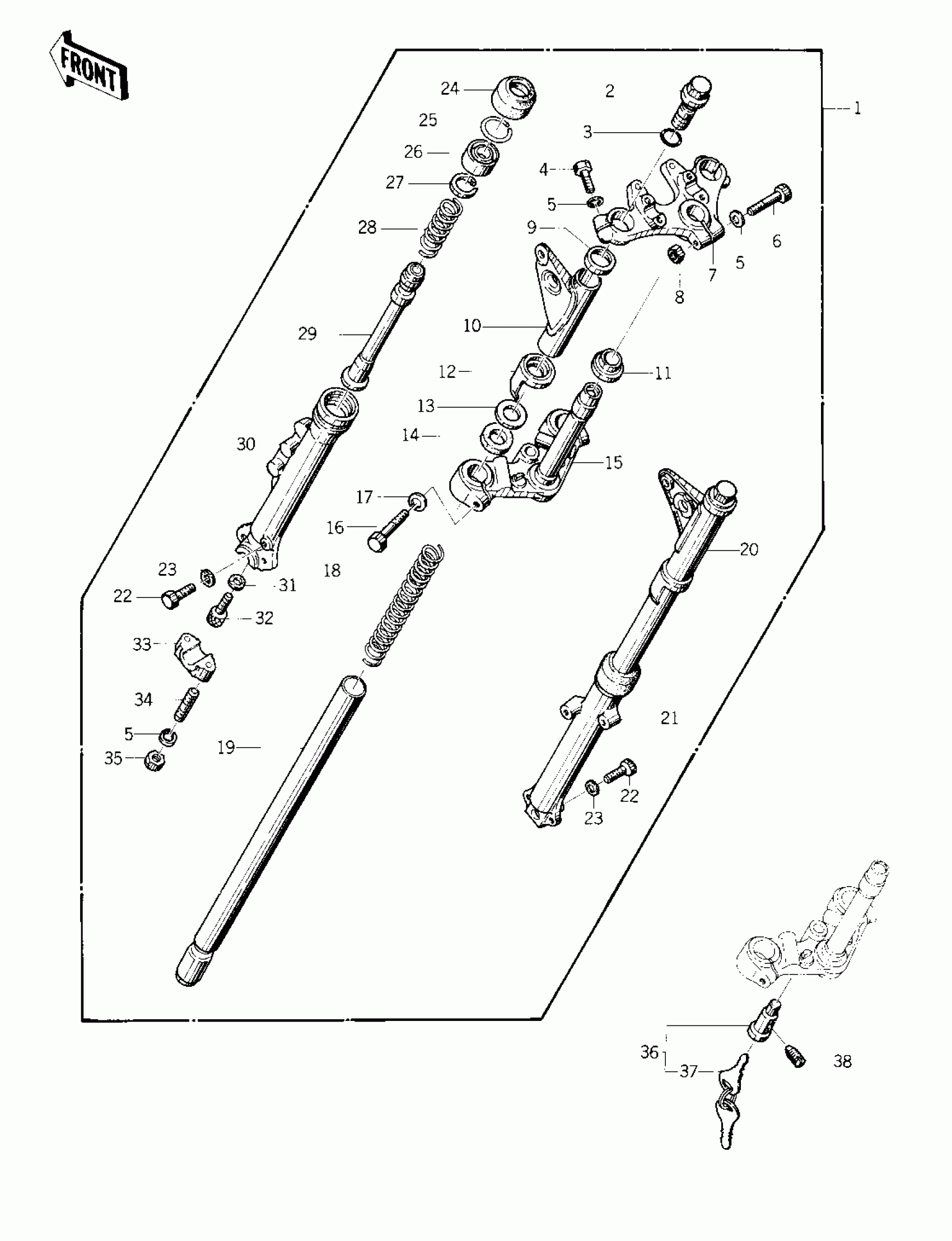

Kawasaki KZ400-D4 FRONT FORK ('76 -'77 KZ400 - D3/D4) Diagram

#

Description
Price

1

FORK-FRONT

44001-181

$935.63

2

BOLT, FORK TOP

44032-012

$12.83

3

"O" RING,FORK TOP BLT

44046-023

Unavailable

4

BOLT-HEX HEAD.8M/M

44041-045

$24.03

5

WASHER SPRING 8MM

461F0800

Unavailable

6

BOLT FORK FIT 10MM

44041-026

$3.97

7

HEAD,STEERING STEM

44039-080

$189.06

8

NUT,LOCK,8MM

92015-1124

$4.10

9

CAP,FORK COVER

44064-026

$6.44

10

COVER,L.H FORK

44033-080

$76.90

11

RACE,STEERING STEM BEARING

92047-006

$12.39

12

CAP, FORK COVER

44064-021

$20.61

13

WASHER,FORK COVER

92022-297

$7.85

14

DAMPER RUBBER,FK COV

92075-240

Unavailable

15

STEM, STEERING

44037-077

$501.31

16

BOLT, HEX HEAD,10X30

44041-079

$11.66

17

WASHER SPRING 10MM

461F1000

Unavailable

18

SPRING, FORK

44026-061

Unavailable

19

TUBE,FORK INNER

44013-049

Unavailable

20

COVER,R.H FORK

44034-080

$118.74

21

TUBE,RH,FORK OUTER

44006-056

$161.44

22

BOLT HEX HEAD 6X8

110B0608

Unavailable

23

GASKET,DRAIN PLUG

44045-047

$7.12

24

SEAL,FORK

92093-1063

$30.66

25

RING,OIL SEAL STOPPER

44043-057

$4.88

26

SEAL-OIL,FORK

92049-1077

$16.80

27

RING, PISTON

44025-003

$8.85

28

SPRING,FORK CYLINDER

44026-054

$4.34

29

CYLINDER-FORK

44022-035

$59.20

30

TUBE,LH,FORK OUTER

44005-058

$183.98

31

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

32

BOLT,FORK CYLINDER

44041-078

$9.56

33

HOLDER, FRONT AXLE

44063-010

$27.63

34

STUD 8X50

172G0850

Unavailable

35

NUT 8MM

312B0800

Unavailable

35

NUT,LOCK,8MM

92017-013

$7.89

36

LOCK ASSY,STEERING

27016-043

$36.25

38

SCREW,SEAT LOCK

92014-016

Unavailable
