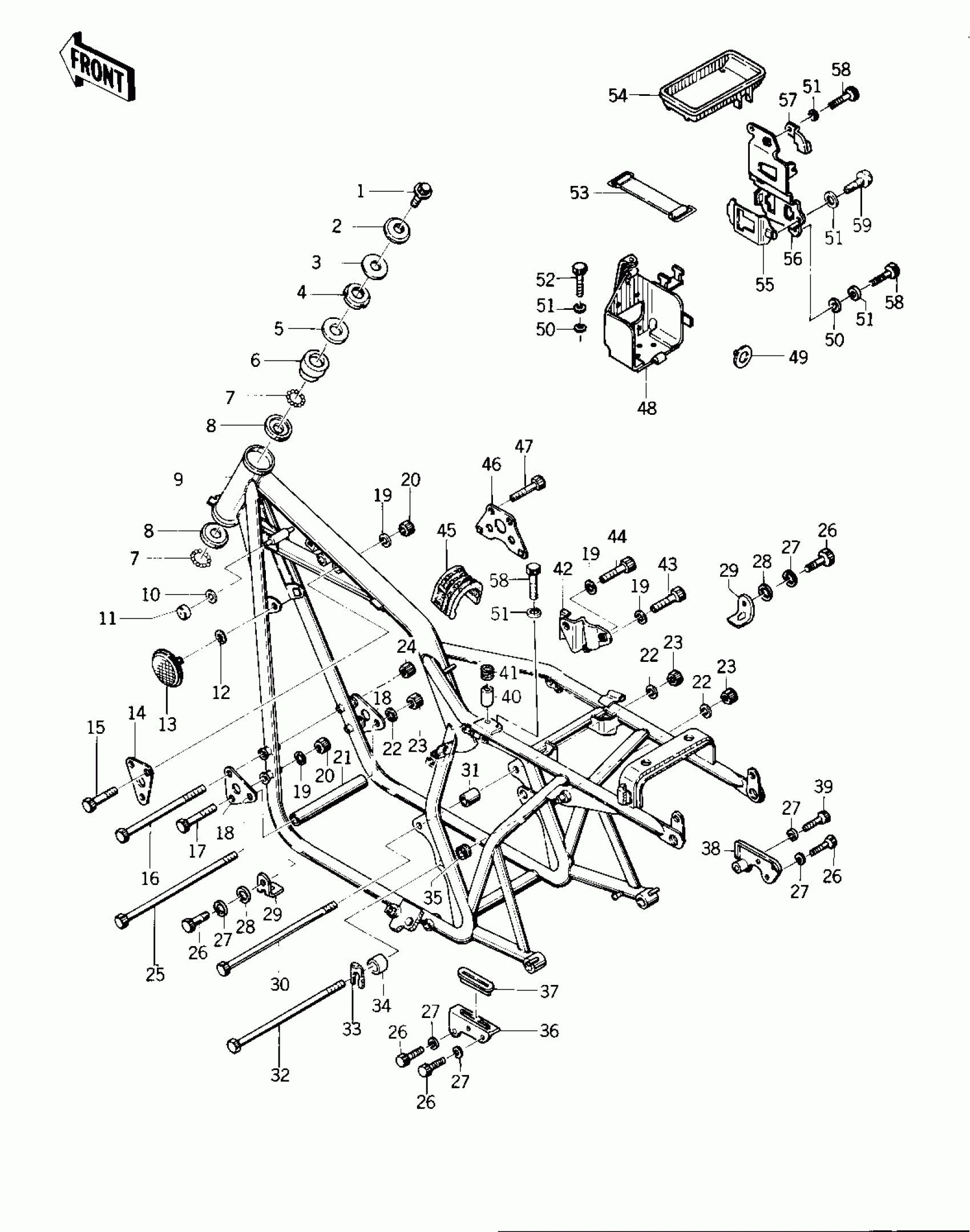

Kawasaki KZ400-D4 FRAME/FRAME FITTINGS ('76 -'77 KZ400 - Diagram
#
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
$11.93
3
WASHER,WAVE
46100-003
$11.39
4
NUT,30MM
92090-007
$11.71
5
CAP,STEERING STEM
46098-016
$6.51
6
RACE,STEERING STEM BEARING
92047-006
$12.67
7
BALL-STEEL,1/4
600A0800
$0.62
8
RACE,STEERING STEM BEARING
92048-006
$11.61
9
FRAME
32002-168
$842.19
9
FRAME
32002-168
$842.19
10
WASHER,10.5X26X2.3
92022-044
$3.92
11
DAMPER,FUEL TANK
92075-125
$6.22
12
DAMPER,REFLECTOR
92094-011
$4.60
13
REFLECTOR,REFLEX,REAR
28012-009
$26.16
14
PLATE,ENG MOUNT,UPPER
32030-038
Unavailable
15
BOLT FLANGED 8X55
92001-1398
$4.04
15
BOLT FLANGED 8X55
92001-1398
$4.04
15
BOLT,8X55
92001-1386
Unavailable
15
BOLT,8X55
92001-1386
Unavailable
16
BOLT,HEX HEAD,8X253
92003-171
Unavailable
17
BOLT,HEX HEAD,8X59
110G0859
Unavailable
17
BOLT,FLANGED,8X60
92001-1581
$5.14
18
PLATE,ENG MOUNT,FRNT
32030-044
Unavailable
19
WASHER SPRING 8MM
461F0800
$0.40
20
NUT,8MM
311B0800
$0.67
21
COLLAR,ENG PLAT,FRNT
92027-233
Unavailable
22
WASHER SPRING 10MM
461F1000
$0.67
23
NUT,LOCK,10MM
92019-021
$6.11
24
NUT,LOCK,8MM
92015-1124
$5.42
24
NUT,LOCK,8MM
92015-1124
$5.42
24
NUT,LOCK,8MM
92017-013
$10.35
25
BOLT,FLANGED,10X255
92001-1609
Unavailable
26
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
27
WASHER SPRING 8MM
461F0800
$0.40
28
WASHER,8.5X20X1.6
92022-1561
$4.31
29
BRACKET,AIR CLEANER
32070-033
Unavailable
30
BOLT,FLANGED,10X220
92002-1197
$24.03
31
COLLAR,ENG MOUNT UPPE
92027-228
Unavailable
32
BOLT,HEX HEAD,10X292
92003-162
Unavailable
33
SHIM-ENG FIT FR,0.5MM
92025-053
Unavailable
33
SHIM-ENG FIT FR,0.8MM
92025-054
Unavailable
33
SHIM-ENG FIT FR,1.0MM
92025-055
Unavailable
33
SHIM-ENG FIT FR,1.6MM
92025-056
Unavailable
33
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
33
SHIM-ENG FIT FR,2.3MM
92025-058
Unavailable
34
COLLAR
92027-250
Unavailable
35
COLLAR,ENG MOUNTING
92027-160
Unavailable
36
BRACKET,BASE
32129-008
$6.03
37
DAMPER
92075-280
Unavailable
38
BRACKET,BASE
32129-009
Unavailable
39
BOLT
92001-1578
$8.19
40
COLLAR,6.8X10X8.5
92027-129
$5.00
41
DAMPER RUBBER
92075-076
$4.78
42
PLATE,ENG MOUNT,REAR
32030-034
$12.15
43
BOLT,8X20
115G0820
$5.14
44
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
45
DAMPER RUBBER,FL TNK
92075-215
Unavailable
46
BRACKET,IGNITON COIL
32058-049
$11.85
47
BOLT,FLANGED,6X11
92003-208
$4.31
48
CASE,BATTERY
32097-041
Unavailable
49
DAMPER,RUBBER
92075-078
$4.39
50
WASHER,6.5X20X1.6
92022-125
$1.40
51
WASHER SPRING 6MM
461F0600
$0.69
51
WASHER SPRING 6MM
461F0600
$0.69
52
BOLT 6X22
112B0622
$3.48
53
BAND,L=142.1
92072-006
$12.76
54
CASE,TOOL
32098-025
$16.71
55
BRACKET,ELECT BASE
32129-004
$4.88
56
BRACKET,BASE
32129-010
$10.45
57
BRACKET,SIGNAL RELAY
32122-047
$2.74
58
BOLT-UPSET 6X14
112B0614
Unavailable
58
BOLT-UPSET 6X14
112B0614
Unavailable
59
SCREW PAN HEAD 6X12
220B0612
Unavailable
