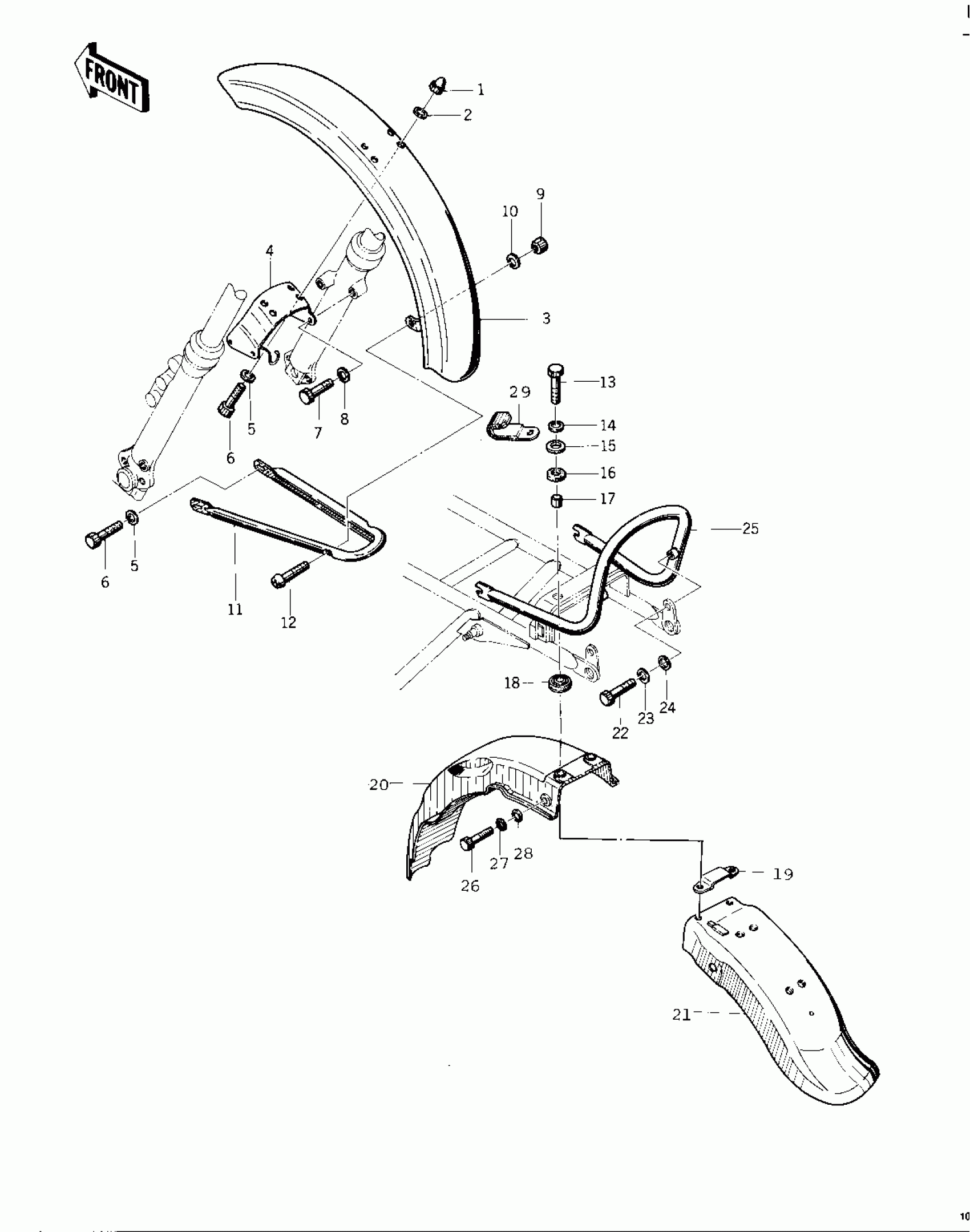

Kawasaki KZ400-D4 FENDERS ('76 -'77 KZ400 - D3/D4) Diagram
#
Description
Price
1
NUT,6MM
92015-009
Unavailable
1
NUT-6MM
322N0600
$1.08
1
NUT-6MM
322N0600
Unavailable
2
WASHER PLAIN 6MM
411B0600
$2.84
3
FENDER-FR
35004-095
$201.74
4
BRACE,FRONT FENDER
35009-032
$41.54
5
WASHER SPRING 6MM
461F0600
$0.69
6
BOLT-UPSET,6X12
112G0612
$1.45
7
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
8
WASHER SPRING 8MM
461F0800
$0.40
9
NUT-HEX
311B0500
$0.47
10
WASHER SPRING 5MM
461F0500
$0.69
11
STAY,FRONT FENDER
35010-027
Unavailable
12
SCREW OVL CNTSNK 5X16
222E0516A
$2.80
12
SCREW-CSK-RD-CROS,5X20
222E0520A
$3.29
13
BOLT-UPSET
112G0625
$3.62
14
WASHER SPRING 6MM
461F0600
$0.69
15
WASHER,7X24X1.6
92022-228
$3.92
16
RUBBER,FENDER COVER
92075-174
$4.78
17
COLLAR,6.8X10X12
92027-162
$6.57
17
COLLAR
92027-241
$6.57
18
DAMPER,FEMALE
92075-175
$4.39
19
PLATE,REAR FENDER
35042-003
$2.42
20
FENDER-RR
35022-138
$59.53
21
FENDER-RR
35022-114
$87.14
22
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
23
WASHER SPRING 8MM
461F0800
$0.40
24
WASHER PLAIN 8MM
411B0800
$0.93
25
STAY,REAR FENDER
35032-029
Unavailable
25
STAY,REAR FENDER
35032-042
Unavailable
26
BOLT-UPSET
112G0618
$1.01
27
WASHER SPRING 6MM
461F0600
$0.69
28
WASHER,7X24X1.6
92022-228
$3.92
29
CLAMP,WIRING HARNESS
21126-008
$4.73
29
CLAMP,WIRING HARNESS
21126-008
Unavailable
