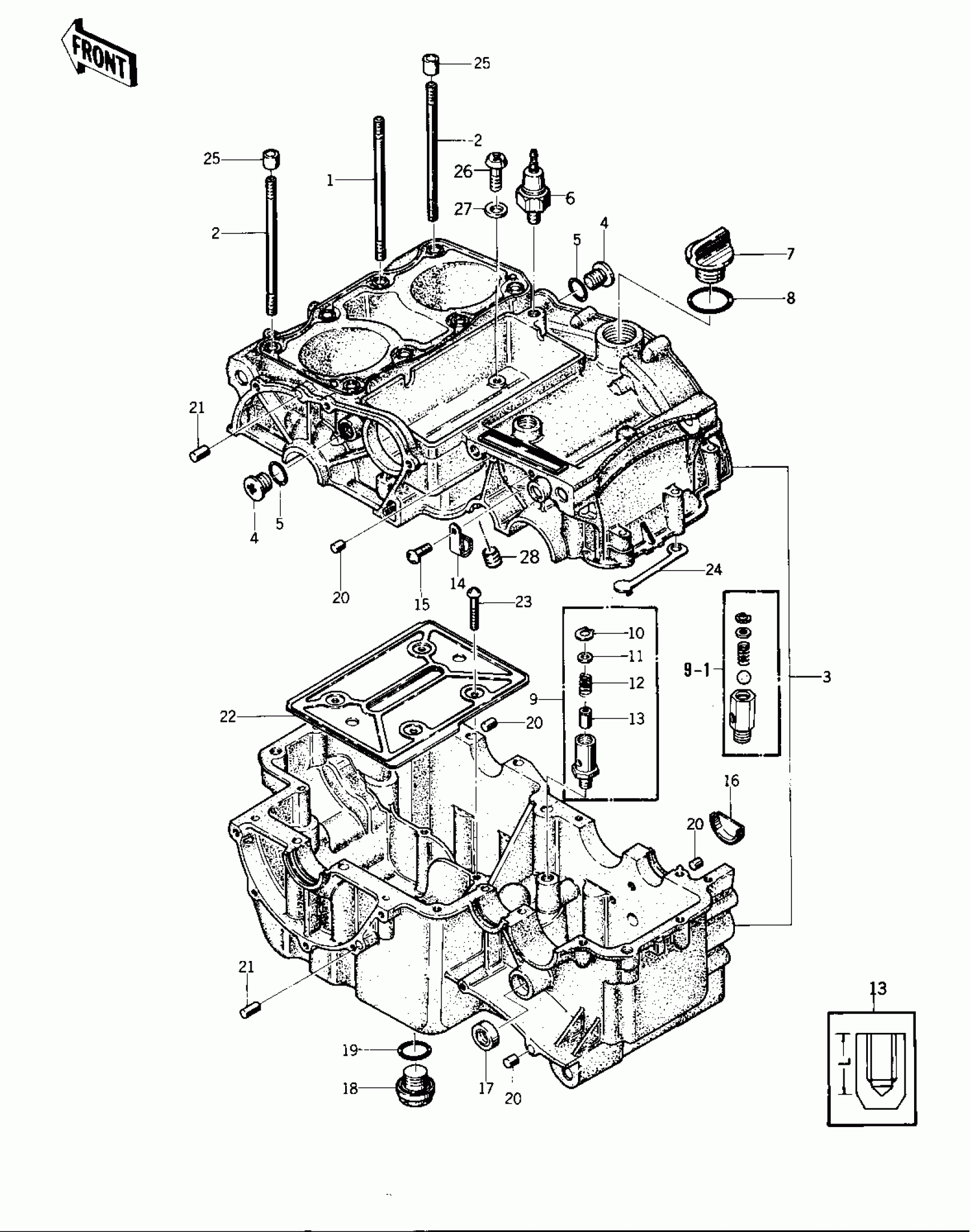

Kawasaki KZ400-D4 CRANKCASE ('76 -'77 KZ400 - D3/D4) Diagram

#

Description
Price

1

.STUD,8X201

92004-052

$4.89

2

.STUD,8X210

92004-053

$8.05

3

CRANKCASE SET

14001-102

Unavailable

3

CRANKCASE SET

14001-102

Unavailable

4

.PLUG

92066-067

$6.40

4

.PLUG

92066-067

$6.40

5

RING-O,13.5MM

92055-073

$10.04

6

SWITCH,OIL PRESSURE

27010-1157

Unavailable

7

CAP-OIL FILLER

16115-013

$19.96

8

RING-O,31.5X2.6

92055-049

$4.31

9

VALVE-ASSY-RELIEF

16130-1001

Unavailable

9-1

VALVE-ASSY-RELIEF

16130-1001

Unavailable

10

CIRCLIP, 12MM

481J1200

$1.33

11

SPACER,RELEAF VALVE

92026-097

$1.76

12

SPRING,RELEAF VALVE

16133-003

Unavailable

13

PISTON,RELEAF VALVE

16126-002

$9.79

14

CLAMP,WIRING HARNESS

21126-008

$4.73

14

CLAMP,WIRING HARNESS

21126-008

$4.73

15

SCREW PAN HEAD 6X12

220B0612

Unavailable

16

RECEIVER,OIL

14015-005

Unavailable

17

SEAL-OIL,TB13225.5

92051-005

$7.74

18

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

19

GASKET,12X22X2

92065-097

$0.74

20

PIN,DOWEL,6.3X8X14

92042-007

$5.70

21

PIN-DOWEL,6X12

551A0612

$0.94

22

PLATE

14082-001

$7.72

23

SCREW PAN HEAD 6X12

220B0612

Unavailable

24

CLAMP,OVERFLOW HOSE

92037-149

Unavailable

25

PIN,DOWEL,10X14

92043-1037

$0.74

26

SCREW PAN HEAD 6X12

220B0612

Unavailable

27

WASHER,6.2X11X1

92022-304

$3.65

28

NOZZLE,BLACK

92062-011

$8.58
