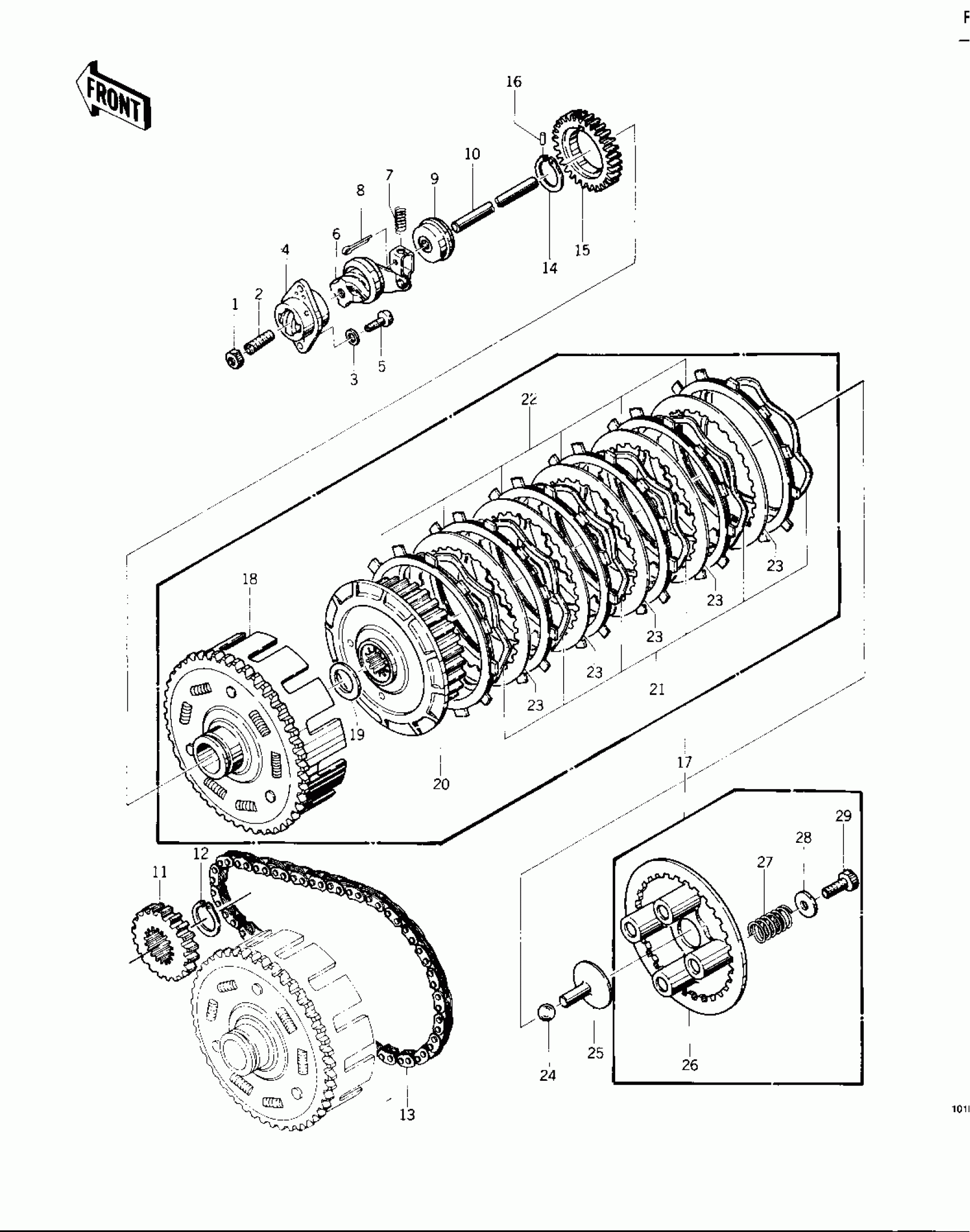

Kawasaki KZ400-D4 CLUTCH ('76 -'77 KZ400 - D3/D4) Diagram
#
Description
Price
1
NUT-HEX-SMALL,8MM
318B0800
$0.59
2
SCREW,SLOTTED,8X25
92014-014
Unavailable
3
WASHER PLAIN 6MM
411B0600
$2.84
4
OUTER,CLUTCH RELEASE
13118-007
Unavailable
5
SCREW-PAN-CROS,6X16
220B0616
$2.84
6
INNER,CLUTCH RELEASE
13102-013
Unavailable
7
SPRING,CLUTCH RELEASE
92081-069
$7.51
8
PIN-COTTER,1.6X15
550D1615
$2.51
9
OIL SEAL,PUSH ROD
92050-068
$32.73
9
OIL SEAL,PUSH ROD
92049-1041
Unavailable
10
ROD,PUSH,CLUTCH
13116-1017
Unavailable
10
ROD,PUSH,CLUTCH
13116-1017
Unavailable
11
SPROCKET,PRIMARY
13121-030
Unavailable
12
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
13
CHAIN,PRIMARY DRIVE
13122-005
Unavailable
14
CIRCLIP, 38MM
480J3800
$5.44
15
GEAR,OIL PUMP
16084-019
$46.20
15
GEAR,OIL PUMP
16084-019
$46.20
16
PIN, DOWELL, 6X6
610A0606
$2.60
17
CLUTCH-ASSY
13081-074
Unavailable
18
HOUSING,CLUTCH
13095-045
Unavailable
19
WASHER,CLUTCH THRUST
92022-288
$12.83
20
HUB,CLUTCH
13087-040
Unavailable
21
RING,CLUTCH STEEL
13229-005
Unavailable
22
PLATE,FRICTION
13088-1001
Unavailable
22
PLATE,FRICTION
13088-1001
Unavailable
23
PLATE-CLUTCH,T=2.0
13089-026
$12.80
24
BALL-STEEL,3/8"
600A1200
$1.56
25
PUSHER,CLTCH SPRG PLT
13116-029
Unavailable
26
PLATE,CLUTCH SPRING
13187-007
Unavailable
27
SPRING,CLUTCH
92081-1033
$7.38
27
SPRING,CLUTCH
92081-1033
$7.38
28
HOLDER,CLUTCH SPRING
13091-011
$5.78
29
BOLT-UPSET
112G0618
$1.01
