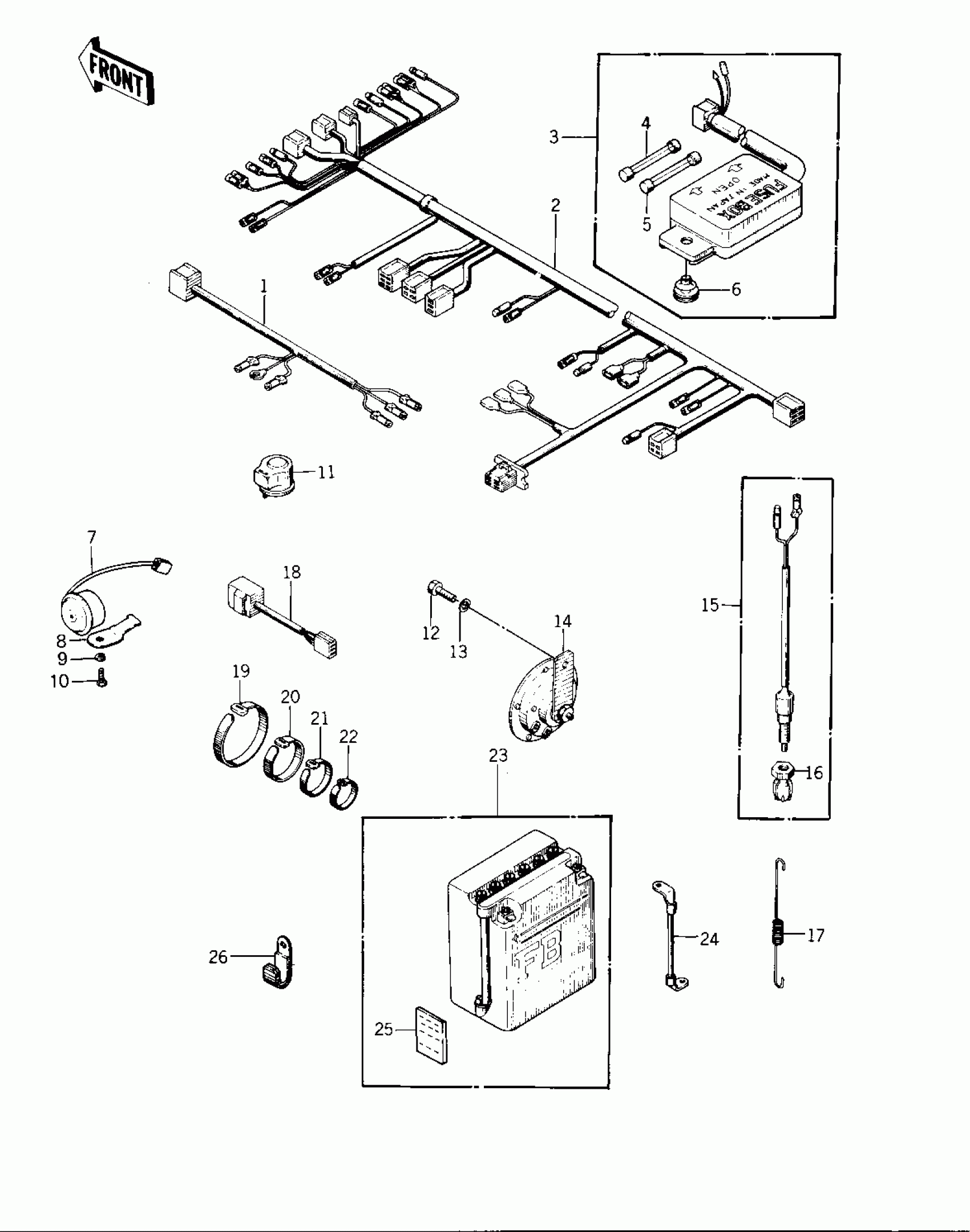

Kawasaki KZ400-D4 CHASSIS ELECTRICAL EQUIPMENT ('76 -'77 Diagram
#
Description
Price
1
WIRING HARNESS REAR
26002-049
Unavailable
2
WIRING HARNESS,MAIN
26001-136
Unavailable
3
FUSE-ASSY
26004-035
Unavailable
4
FUSE,20A,L=25
26006-005
$5.06
5
FUSE,10A,L=25
26006-003
$4.72
6
DAMPER,FUSE
92075-279
$6.45
7
ALARM,TURN SIGNAL
27040-001
$37.27
8
BRACKET,ALARM
27023-004
$3.45
9
WASHER SPRING 6MM
461F0600
$0.69
10
SCREW PAN HEAD 6X10
220B0610
$3.14
11
RELAY-ASSY,TURN SIGNAL
27002-011
$101.43
12
BOLT,8X20
115G0820
$5.14
13
WASHER SPRING 8MM
461F0800
$0.40
14
HORN
27003-1006
Unavailable
15
SWITCH,BRAKE LAMP
27010-025
$29.24
16
NUT,BRAKE LAMP SWITCH
27037-001
$29.24
17
SPRING,BRAKE LIGHT SW
27011-015
$10.29
18
SWITCH,BK LIGHT IND
28019-002
$67.73
19
BAND,L=218
92072-032
$5.00
20
BAND,L=149
92072-031
$5.00
21
BAND,L=123
92072-030
$5.00
22
BAND,L=95
92072-067
Unavailable
23
YUA BAT 12N12A-4A-1
26012-045
$57.01
23
YUA BAT 12N12A-4A-1
26012-045
$57.01
24
WIRE,LEAD
26010-044
$19.06
25
UNAVAILABLE IN PRICE BOOK
56022-057
Unavailable
26
CLAMP,WIRING HARNESS
21126-008
$4.73
