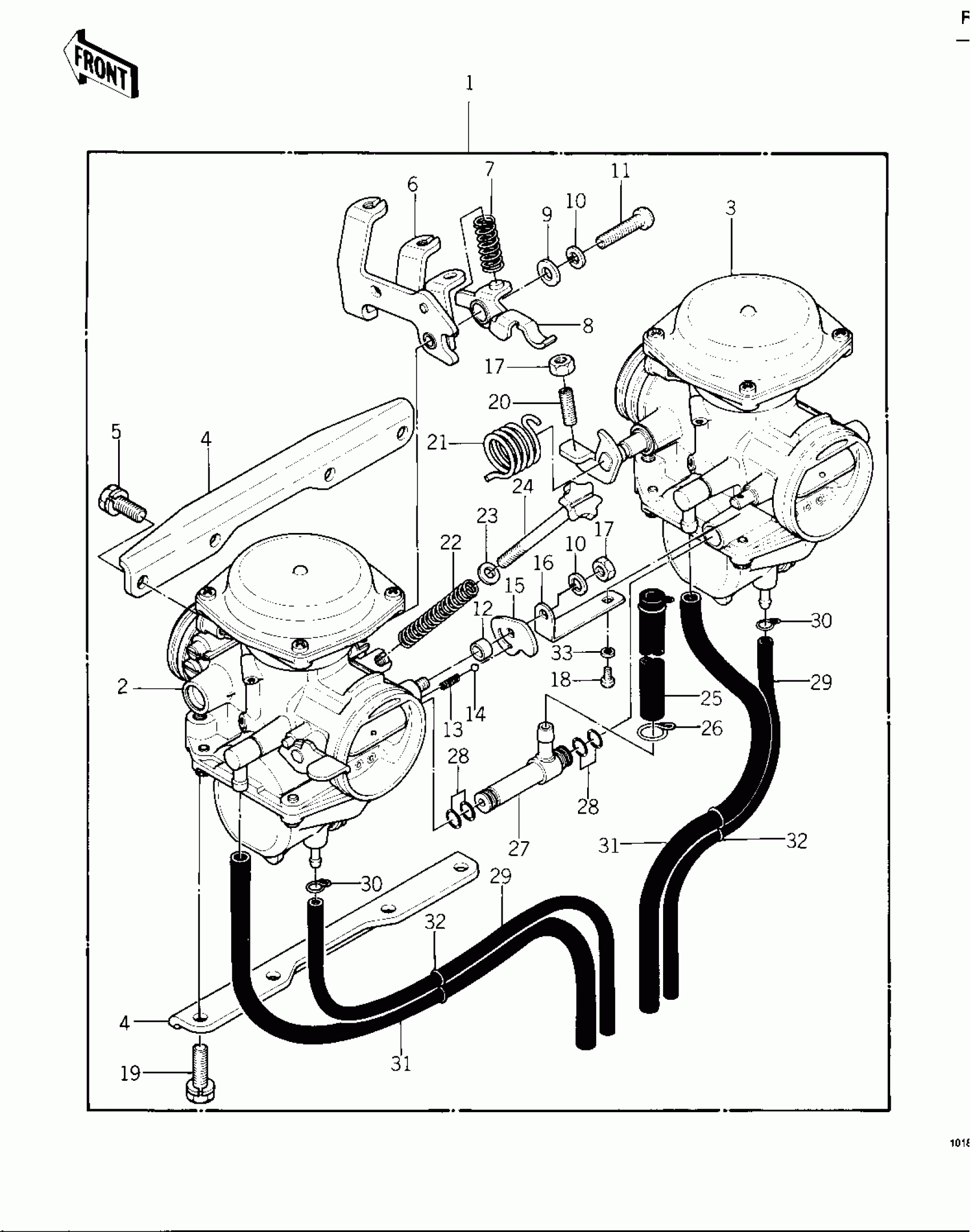

Kawasaki KZ400-D4 CARBURETOR ASSY (KZ400-D4) ('76 -'77 KZ4 Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-300

$698.97

2

CARBURETOR,L.H.

16001-1006

$260.67

3

CARBURETOR,R.H.

16001-1007

$259.63

4

PLATE,STAY

16065-1001

$21.24

5

SCREW,6X16

92009-1129

Unavailable

6

BRACKET,THR.CBL

11034-1008

Unavailable

7

SPRING

92081-1003

$14.25

8

ROCKER ARM

11034-1009

Unavailable

9

WASHER,PLAIN

16039-027

Unavailable

10

WASHER SPRING 5MM

461F0500

Unavailable

11

SCREW-PAN-CROS,5X25

220B0525

$3.24

12

COLLAR,CHOKE LEVER

16073-1001

$2.42

13

SPRING

92081-1004

Unavailable

14

BALL,STEEL,1/8"

600A0400

$1.66

15

CAM,CHOKE LINK

13169-1007

Unavailable

16

BRACKET,CHOKE LEVER

11034-1010

Unavailable

17

NUT-HEX

311B0500

$0.47

18

SCREW-PAN-CROS,3X6

220B0306

Unavailable

19

BOLT,6X22

92009-1006

$4.22

20

SCREW,SLOTTED

16021-1002

$1.97

21

SPRING

92081-1006

$5.19

22

SPRING,THR.STOP SCREW

92081-1005

$15.39

23

WASHER PLAIN 5MM

410B0500

Unavailable

24

SCREW,THROTTLE STOP

16021-1001

$20.71

25

TUBE,5.3X10.5X200

92059-1001

Unavailable

26

CLAMP,FUEL HOSE

92037-1040

Unavailable

27

NIPPLE,FUEL HOSE

16046-013

Unavailable

28

RING-O

92055-1004

$3.29

29

TUBE,3.5X6.5X330

92059-111

$20.69

30

CLAMP,TUBE

92037-1142

$3.29

31

TUBE,4.5X8X380

92059-110

Unavailable

32

CLAMP,OVERFLOW HOSE

16044-002

Unavailable

33

WASHER SPRING 3MM

461F0300

Unavailable
