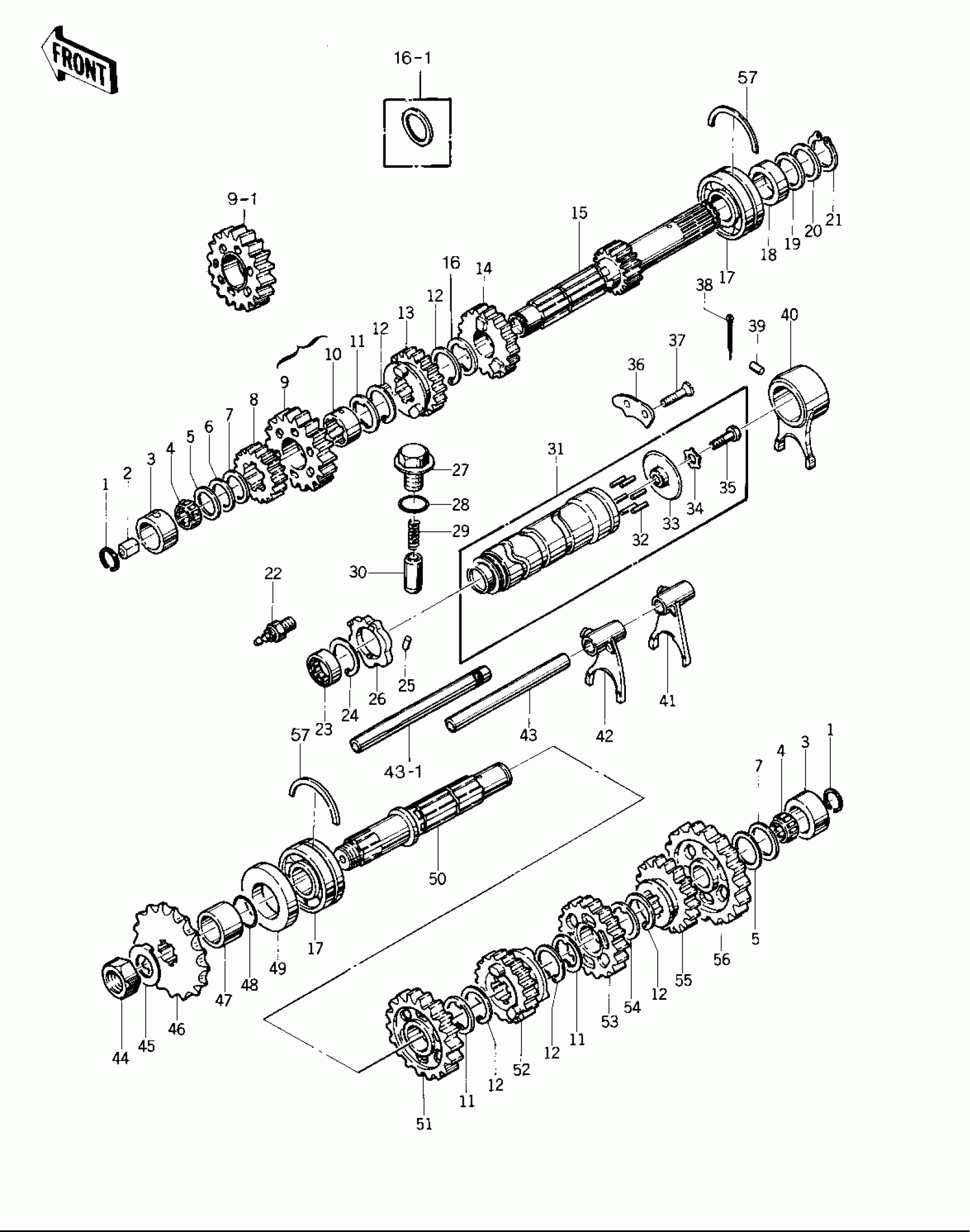

Kawasaki KZ400-D TRANSMISSION/CHANGE DRUM ('74 -'75 Diagram
#
1
RING-SNAP,20MM
92033-015
$4.26
2
BUSHING,DRIVE SHAFT
92028-155
Unavailable
3
BUSHING,OUTPUT&DRIVE
92028-170
$8.89
3
BUSHING,OUTPUT&DRIVE
92028-170
$8.89
4
BEARING-NEEDLE,20R2513P
92046-044
$22.69
5
WASHER,20.5X30X1,STEEL
92022-112
$8.86
6
WASHER THRUST
92022-113
Unavailable
7
WASHER,20.5X30X0.5,STEEL
92022-144
$7.62
8
2ND GEAR,DRIVE SHAFT
13130-038
Unavailable
9
TOP GEAR,DRIVE SHAFT
13136-056
Unavailable
9-1
TOP GEAR,DRIVE SHAFT
13136-056
Unavailable
10
BUSHING,DRIVE TOP GE
92028-154
$29.84
11
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
12
RING-SNAP,24MM
92033-026
$8.79
13
3RD GEAR,DRIVE SHAFT
13132-037
Unavailable
14
4TH GEAR,DRIVE SHAFT
13134-021
Unavailable
15
SHAFT,DRIVE
13127-047
Unavailable
15
SHAFT,DRIVE
13127-056
Unavailable
16
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
16-1
WASHER,25.3X32X0.5
92022-225
$5.52
17
BEARING,B,5205ANX4PX
92045-031
$67.65
18
COLLAR
92027-289
Unavailable
19
WASHER,25.3X32X0.5
92022-225
$5.52
20
WASHER,CLUTCH TRUST
92022-302
Unavailable
21
RING-SNAP,24MM
92033-026
$8.79
22
SWITCH,NEUTRAL
13151-5002
Unavailable
23
BRG,N,24BTM3010A
92046-039
Unavailable
24
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
25
ROLLER,4X6
610A0406
$4.31
26
CAM-CHANGE DRUM
13145-1058
$22.72
27
BOLT, NEUTRAL POSITON
92001-147
Unavailable
28
RING-O
92055-078
$6.87
29
SPRING
92081-112
$6.16
30
PIN
92043-076
$11.71
31
DRUM ASSY,GEAR SHIFT
13239-014
Unavailable
32
PIN,DOWEL,4X15.8
92042-014
$0.43
33
PLATE,SHIFT DRUM PIN
13142-016
Unavailable
34
WASHER LOCK 6MM
464G0600
$1.78
35
SCREW-PAN-CROS,6X14
220B0614
$1.48
36
PLATE,SHIFT DRUM PSTN
13169-010
Unavailable
37
SCREW CNTSNK HD 6X16
212B0616
Unavailable
38
PIN-COTTER,3.0X20
550D3020
$1.78
39
PIN,DOWEL,8X18
92042-021
$11.51
40
SHIFT FORK,4TH&TOP
13140-068
Unavailable
41
SHIFT FORK,LOW
13140-066
Unavailable
42
SHIFT FORK,2ND 3RD
13140-067
Unavailable
43
ROD,SHIFT
13209-018
Unavailable
43-1
SHIFT ROD
13209-020
Unavailable
44
NUT,20MM
92016-028
$9.91
45
WASHER,LOCK,20MM
92024-044
$13.52
46
ENGINE SPROCKET,15T
13144-1002
Unavailable
47
COLLAR,ENG SPROCKET
92027-288
$39.34
48
RING-O
92055-035
$5.00
49
SEAL-OIL,SC325210
92050-024
$8.17
50
SHAFT,OUTPUT
13128-042
Unavailable
51
2ND GEAR,OUTPUT SHAFT
13131-045
Unavailable
52
TOP GEAR,OUTPUT SHAFT
13137-031
Unavailable
53
3RD GEAR,OUTPUT SHAFT
13133-037
Unavailable
54
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
55
4TH GEAR,OUTPUT SHAFT
13135-026
Unavailable
56
LOW REAR,OUTPUT SHAFT
13129-053
Unavailable
57
RING-POSITION
14013-004
$10.19
