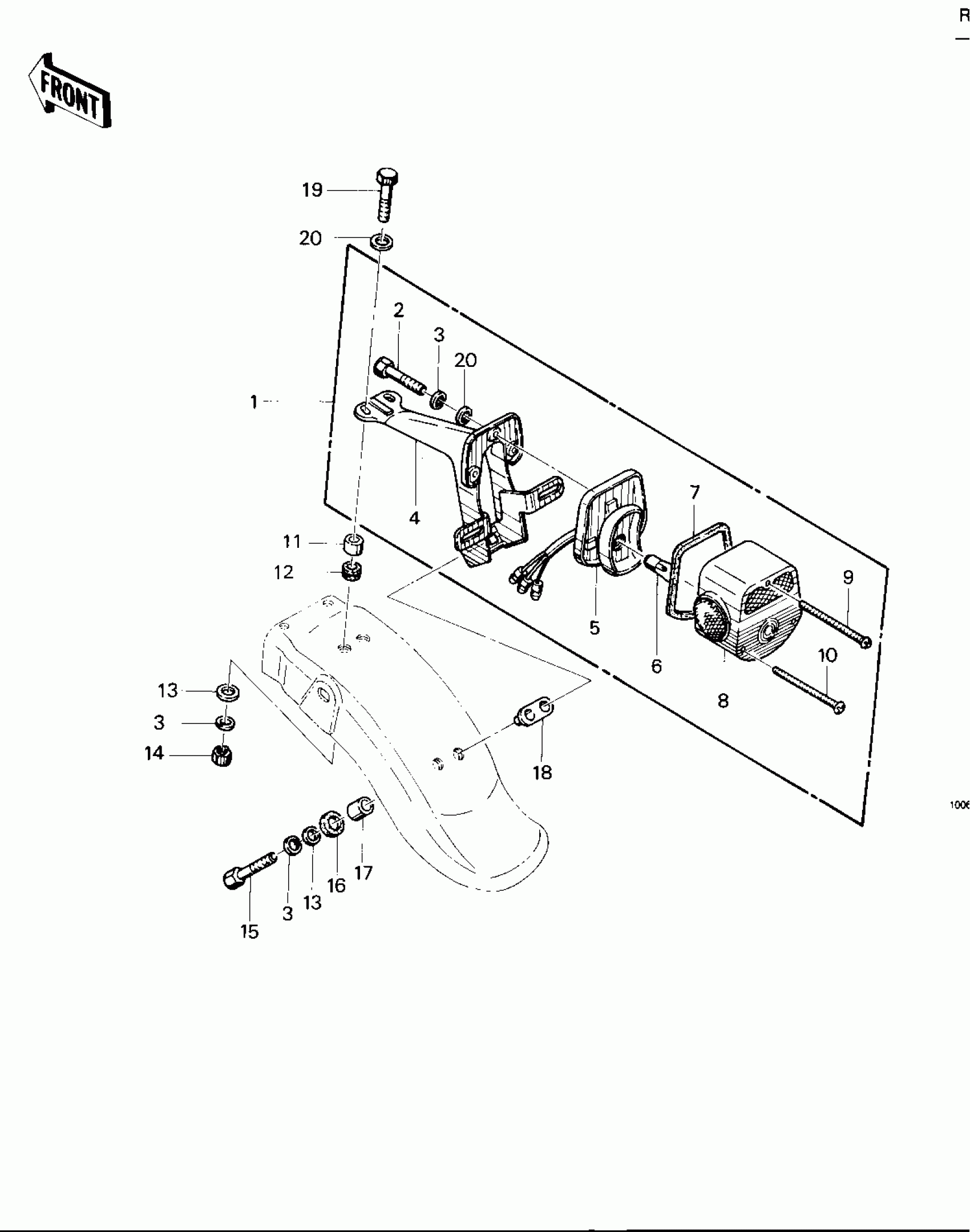

Kawasaki KZ400-D TAILLIGHT ('74 -'75 KZ400/KZ400D) Diagram

#

Description
Price

1

LIGHT ASSY TAIL BLACK

23024-059-10

$147.46

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

BKT LICENSE PLT BLACK

23036-041-10

$62.24

5

BODY-COMP-TAIL LAMP

23027-1019

$68.16

5

BODY-COMP-TAIL LAMP

23027-1019

Unavailable

6

BULB,12V 27/8W

92069-059

$8.12

7

GASKET,TAIL LAMP LENS

23028-019

$9.80

8

LENS,TAIL LAMP

23026-028

$56.62

9

SCREW

220R0455

$5.03

9

SCREW

220R0455

Unavailable

10

SCREW PAN HEAD 4X50

220E0450

$6.15

11

COLLAR,6.8X10X8.5

92027-129

$5.00

12

DAMPER RUBBER

92075-076

$4.78

13

WASHER,6.5X20X1.6

92022-125

$1.40

14

NUT 6MM

311B0600

$0.93

15

BOLT-UPSET

112G0625

$3.62

16

DAMPER,FENDER

92075-121

$4.56

17

COLLAR,6.8X10X12

92027-162

$6.57

18

DAMPER RUBBER,FENDER

92075-273

$7.29

19

BOLT 6X22

112B0622

$3.48

20

WASHER PLAIN 6MM

411B0600

$2.84
