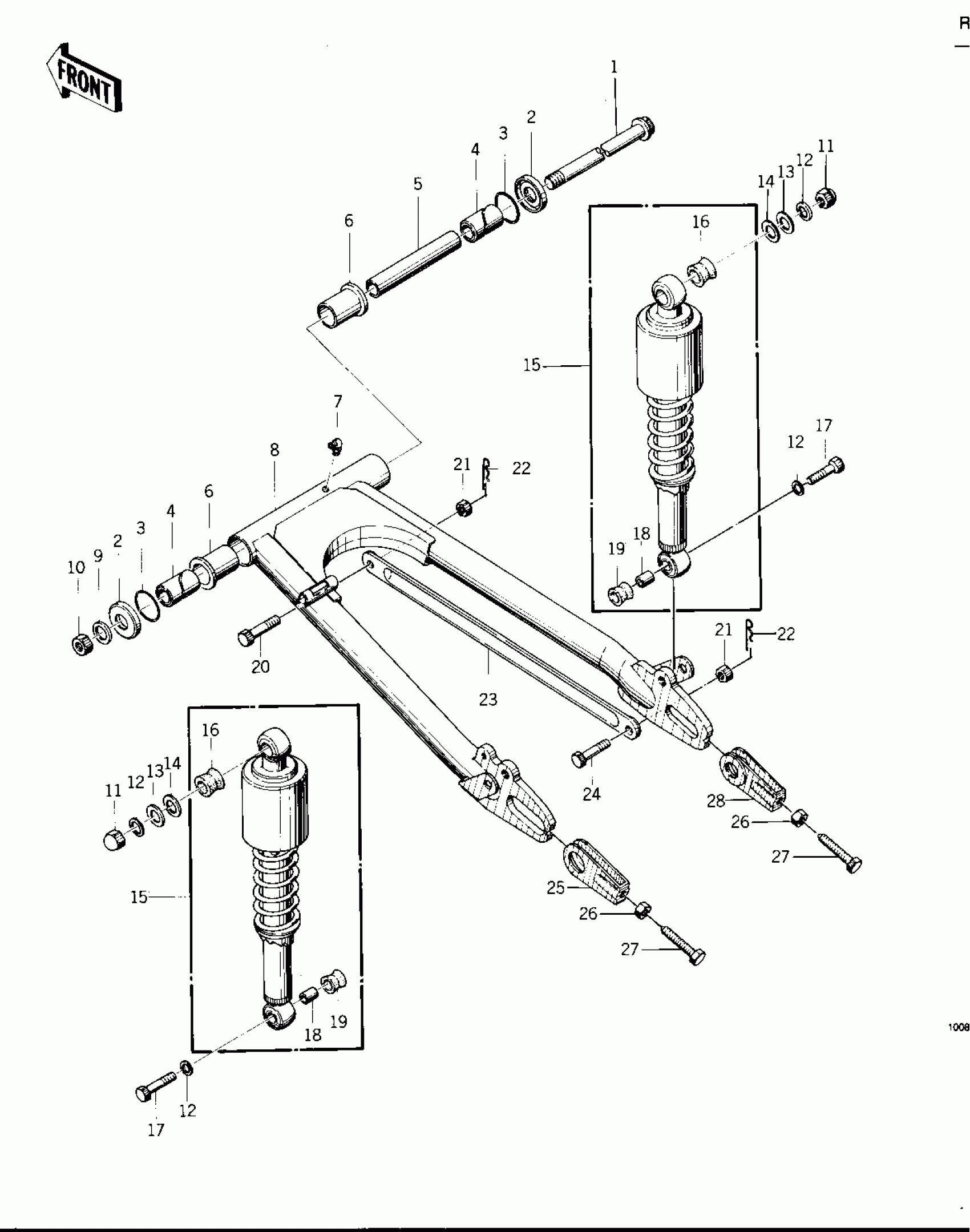

Kawasaki KZ400-D SWING ARM/SHOCK ABSORBERS ('74 -'75 KZ40 Diagram
#
Description
Price
1
SHAFT,SWING ARM PIVOT
33032-046
$65.01
2
CAP-SWING ARM
33035-004
Unavailable
3
"0" RING,30MM
671B2530
$5.05
4
SLEEVE-SWING ARM,SHRT
33034-013
Unavailable
5
COLLAR,SWING ARM
33036-006
$4.60
6
BUSHING-SWING ARM
33033-009
Unavailable
7
GREASE NIPPLE
92005-002
Unavailable
8
ARM,SWING
33001-073
$152.38
9
WASHER BRAKE PEDAL
92022-085
$3.92
10
NUT-LOCK,14MM
92019-011
Unavailable
11
NUT,CAP,10MM
92020-003
$6.52
12
WASHER SPRING 10MM
461F1000
$0.67
13
WASHER-PLAIN,10MM
411B1000
$0.93
14
WASHER,10.5X26X2.3
92022-044
$3.92
15
SHOCK ABSBR RR
45014-101
$254.93
16
DAMPER,SHOCKABSORBER
45017-015
Unavailable
17
BOLT HEX HEAD 10X35
113N1035
$9.14
18
COLLAR,SHOCKABSORBER
45016-008
$9.91
19
DAMPER,SHOCKABSORBER
45017-012
$14.90
20
BOLT,10X29
92003-096
$10.72
21
NUT-HEX-FINE,10MM
314B1000
$0.67
22
PIN-SNAP,8MM
554A0800
$1.26
23
TORQUE LINK REAR BRK
43007-016
Unavailable
24
BOLT,10X35
92003-034
$13.21
25
ADJUSTER,CHAIN,L.H
33040-062
$23.93
26
NUT 8MM
312B0800
$0.58
27
BOLT,8X50
92001-1399
$9.48
27
BOLT,8X50
92001-1399
$9.48
28
ADJUSTER-CHAIN
33040-043
$28.47
