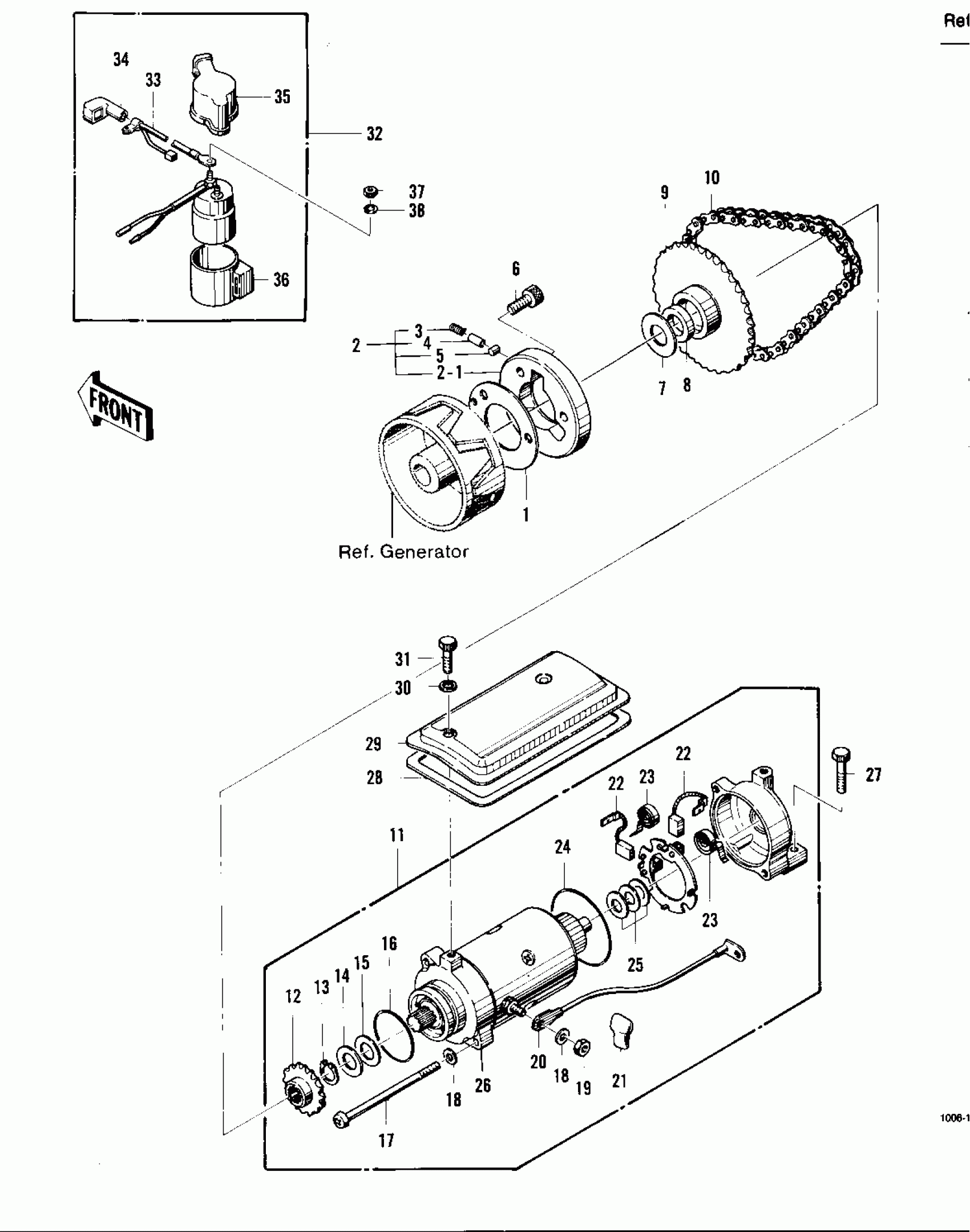

Kawasaki KZ400-D STARTER MOTOR/STARTER CLUTCH ('74 -'75 K Diagram
#
1
WASHER,FREE WHEEL
92026-082
Unavailable
2
CLUTCH ASSY,STARTER
13193-1001
Unavailable
2-1
CLUTCH ASSY,STARTER
13193-1001
Unavailable
3
.UNAVAILABLE IN PRICE BOOK
92061-110
Unavailable
4
PIN
92043-087
$12.76
5
ROLLER,15X13
92122-004
$11.07
6
BOLT-SOCKET,8X16
120P0816
$4.15
7
WASHER,THRUST
92026-100
$9.55
8
OIL SEAL
92050-066
$10.20
9
GEAR STARTER CLUTCH
21170-001
$83.27
10
CHAIN,DYNAMO
92057-1009
$49.50
10
CHAIN,DYNAMO
92057-1009
Unavailable
11
MOTOR ASSY,STARTER
21163-1011
Unavailable
11
MOTOR ASSY,STARTER
21163-1011
Unavailable
12
SPROCKET-ASSY
21053-002
Unavailable
13
CIRCLIP-TYPE-C,14MM
480J1400
$5.00
14
WASHER,PLAIN,14MM
21025-008
Unavailable
15
WASHER PLAIN 14MM
21025-009
Unavailable
16
RING-O,42.8MM
21027-005
Unavailable
17
SCREW PAN HEAD 6X110
220B06110
$3.58
18
WASHER SPRING 6MM
461F0600
$0.69
19
NUT 6MM
312B0600
$0.72
20
WIRE STRTER MOT LEAD
26010-035
$45.78
21
CAP,STARTING MOTOR
21017-020
$8.42
22
BRUSH CARBON
21039-004
$41.68
23
SPRING CARBON BRUSH
21040-004
Unavailable
24
"0" RING,62MM
21027-006
Unavailable
25
WASHER,PLAIN,9MM
21025-007
$3.60
26
.REPAIR KIT,KZ400 STAT
99990-536
$39.03
27
BOLT-UPSET
112G0625
$3.62
28
GASKET START MOT COV
21166-002
Unavailable
29
COVER STARTER MOTOR
21165-002
$16.38
30
WASHER,PLAIN,6MM
410D0600
$0.77
31
BOLT-FLANGED-SMALL,6X12
132E0612
$4.41
32
SWITCH ASSY MAGNETIC
21164-003
$145.29
33
.WIRE MAG SWITCH LEAD
21095-005
$21.33
34
CAP,MAG SWTCH TERMNL
21017-021
$13.09
35
CAP,MAGNETIC SWITCH
21141-004
Unavailable
36
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
37
NUT 6MM
311B0600
$0.93
38
WASHER SPRING 6MM
461F0600
$0.69
