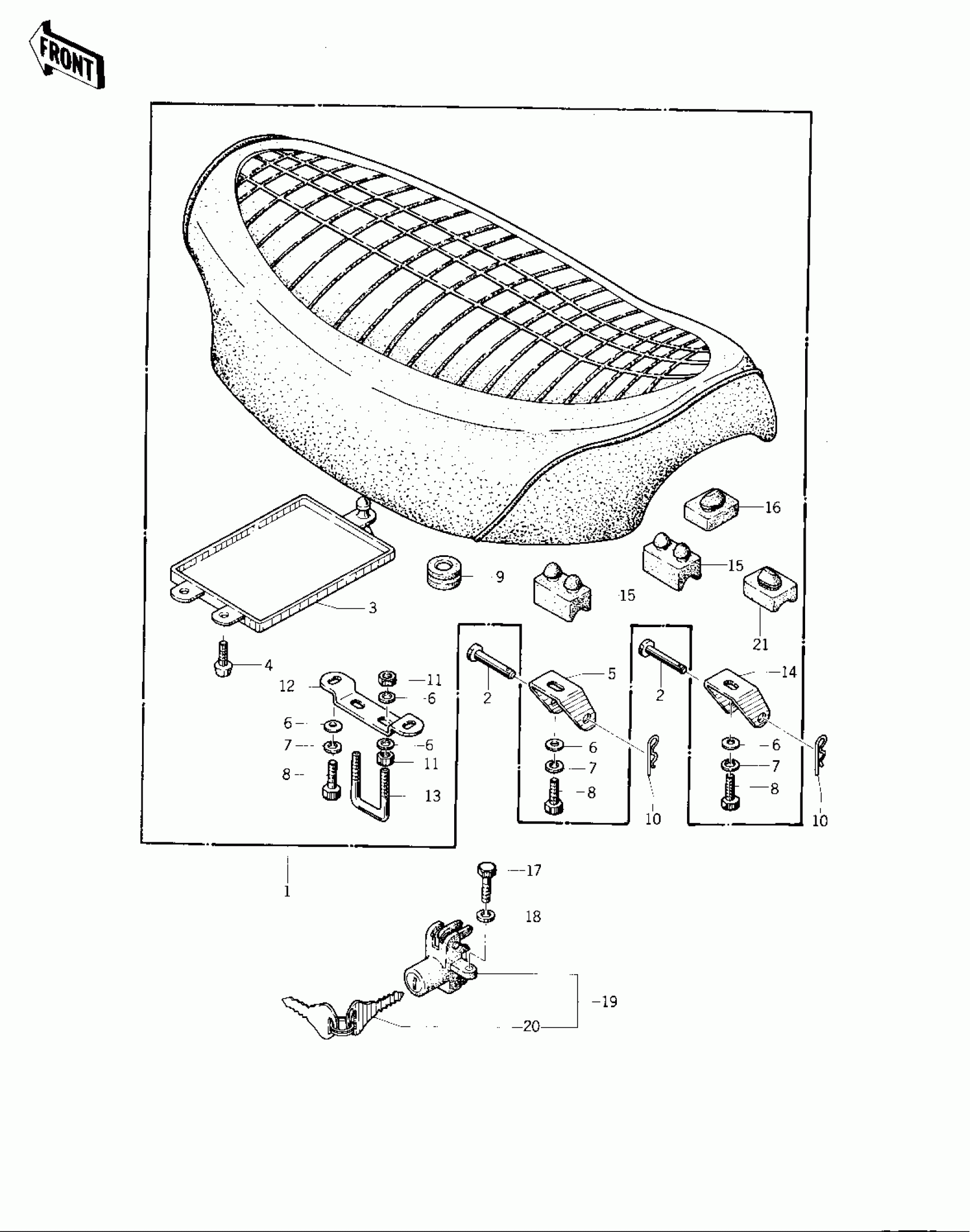

Kawasaki KZ400-D SEAT ('74 -'75 KZ400/KZ400D) Diagram

#

Description
Price

1

SEAT-ASSY,DUAL

53001-106

$195.08

2

PIN, DUAL SEAT PIVOT

53011-006

$4.61

3

CASE,MANUAL

32099-011

$12.64

4

SCREW PAN HEAD 5X10

220B0510

Unavailable

5

HINGE, FRONT

53009-025

$5.49

6

WASHER PLAIN 6MM

411B0600

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

BOLT-UPSET 6X14

112B0614

Unavailable

9

GROMMET

92071-056

$3.25

10

COTTER PIN

92041-003

$4.35

11

NUT 6MM

311B0600

Unavailable

12

BRACKET, SEAT CATCH

53058-001

Unavailable

13

HOOK,SEAT

53056-002

$15.71

14

HINGE, REAR

53009-026

$15.68

15

DAMPER RUBBER,SEAT

92075-139

$8.72

16

DAMPER

92075-099

$4.18

17

BOLT-UPSET,6X12

112G0612

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

LOCK ASSY,SEAT

27030-002

Unavailable

21

DAMPER RUBBER-SEAT

92075-156

Unavailable
