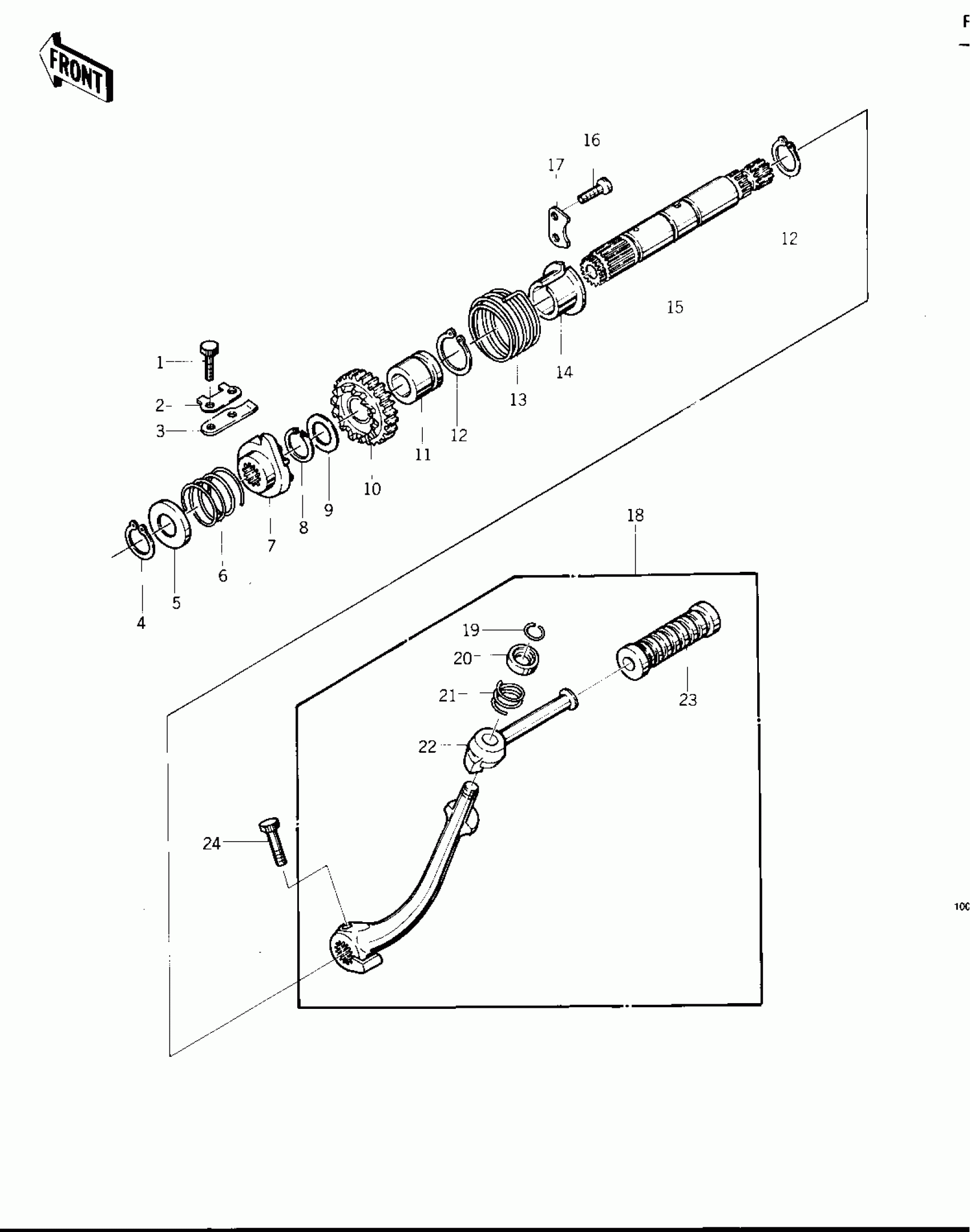

Kawasaki KZ400-D KICKSTARTER MECHANISM ('74 -'75 KZ400/KZ Diagram

#

Description
Price

1

BOLT-UPSET 6X14

112B0614

Unavailable

2

WASHER-LOCK

92024-036

Unavailable

3

STOPPER,KICKSTARTER

13072-012

Unavailable

4

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

5

CAP,KICKSTARTER

92102-008

Unavailable

6

SPRING RATCHET

92081-104

$10.23

6

RATCHET,KICK SHAFT

13078-011

Unavailable

8

RING-SNAP,18MM

92033-029

$9.82

9

WASHER,20.5X30X1,STEEL

92022-112

$8.86

10

GEAR,KICKSTARTER

13068-031

Unavailable

11

BUSHING,KICK SHAFT

92028-175

$17.51

12

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

13

SPRING,KICK RETURN

92082-006

Unavailable

14

GUIDE,KICK SPRING

13070-009

Unavailable

15

SHAFT,KICKSTARTER

13066-036

Unavailable

16

SCREW-CSK-CROS,6X16

221B0616

$0.59

17

PLATE-DRUM LEV POSTON

13169-007

Unavailable

18

PEDAL ASY,KICKSTARTER

13058-053

Unavailable

19

CIRCLIP,KICK

92036-025

$4.83

20

WASHER,KICKPEDAL

92022-294

Unavailable

21

SPRING,KICK PEDAL

92081-136

Unavailable

22

PEDAL,KICKSTARTER

13060-017

Unavailable

23

DAMPER,KICK PEDAL

13063-004

$10.94

24

BOLT HEX HEAD 8X28

114G0828

$3.71
