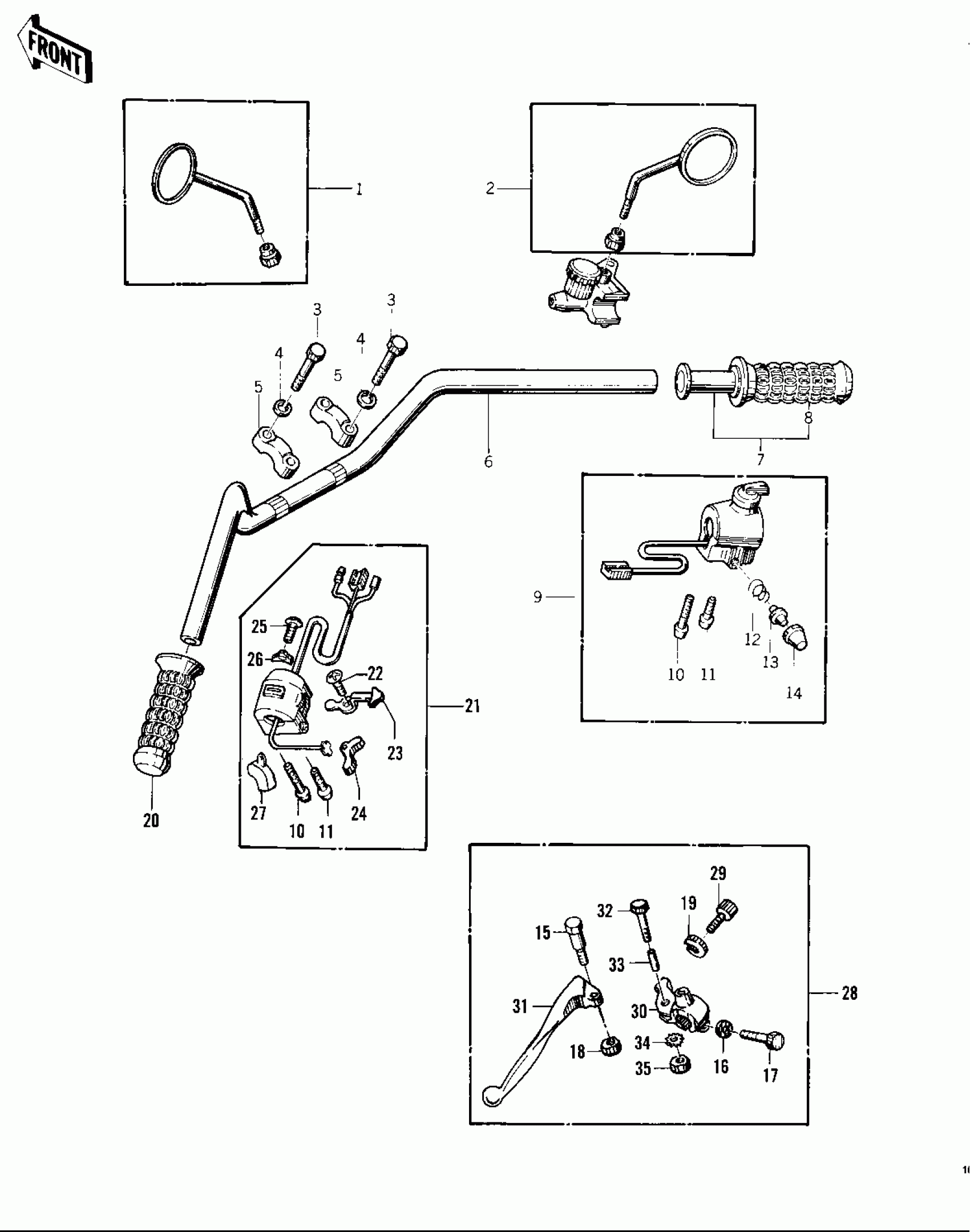

Kawasaki KZ400-D HANDLEBAR ('74 -'75 KZ400/KZ400D) Diagram
#
Description
Price
1
MIRROR-ASSY,LH
56003-009
Unavailable
2
MIRROR-ASSY,RH
56002-020
$67.12
3
BOLT 8X38
92001-1405
$16.50
4
WASHER SPRING 8MM
461F0800
$0.40
5
HOLDER-HANDLE,UPP
46012-008
$37.74
6
HANDLEBAR
46003-034
$115.35
7
UNAVAILABLE IN PRICE BOOK
46019-026
Unavailable
7
GRIP ASSY,THROTTLE
46019-025
Unavailable
8
RUBBER-R.H GRIP
46061-012
Unavailable
9
CASE ASSY R.H
46132-014
$121.10
10
SCREW-PAN-CROS
220B0535
$3.70
11
SCREW PAN HEAD 5X30
220B0530
$3.41
12
SWITCH,PUSH BUTTON
27010-1009
$9.20
13
SWITCH,PUSH BUTTON
27010-1009
$9.20
14
SWITCH,PUSH BUTTON
27010-1009
$9.20
15
BOLT,5X22
92007-046
$7.62
16
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
17
BOLT HEX HEAD 6X25
110N0625
$5.46
18
NUT,LOCK,5MM
92019-014
$4.50
19
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
20
RUBBER-L.H GRIP
46075-017
Unavailable
21
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
22
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
23
KNOB,LIGHTING SW L.H
46043-005
Unavailable
24
BUTTON, HORN PUSH
46028-006
Unavailable
25-27
L.H GRIP SWITCH KIT
99990-530
$2.94
25
SCREW PAN HEAD 3X5
220B0305A
$0.59
26
KNOB,LIGHTING SW L.H
46044-013
$12.37
27
SWITCH,L.H
46089-014
Unavailable
28
LEVER-ASSY-GRIP,CLUTCH
46076-044
$41.66
29
SCREW ADJUST
46055-006
Unavailable
30
HOLDER,F.BLACK
46094-011-21
Unavailable
31
LEVER-GRIP,CLUTCH
46092-015
Unavailable
32
BOLT HEX HEAD 5X20
92007-020
Unavailable
33
COLLAR LEVER
46059-011
Unavailable
34
WASHER LOCK 5MM
464H0500
$1.86
35
NUT-HEX,5MM
312B0500
$0.46
