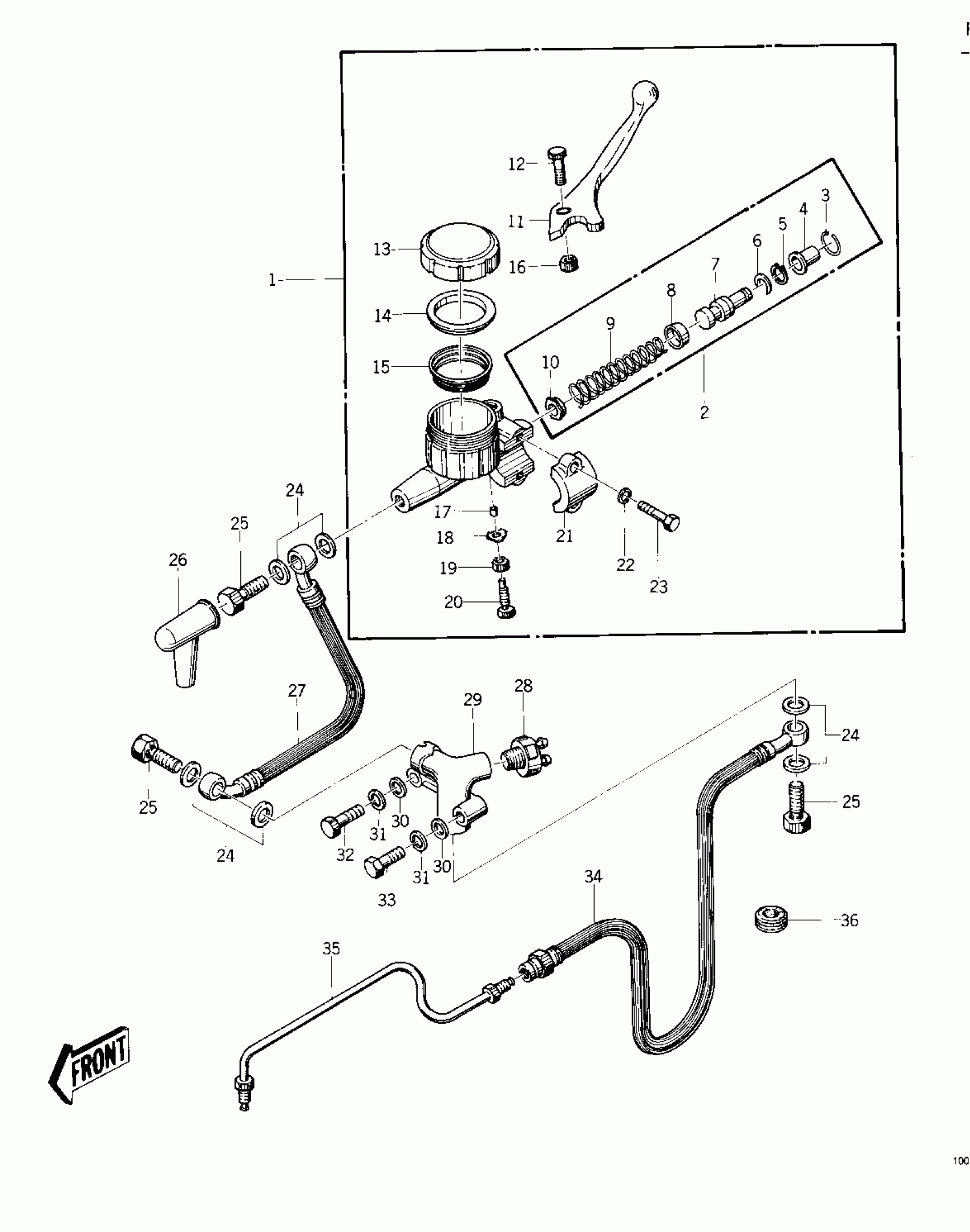

Kawasaki KZ400-D FRONT MASTER CYLINDER ('74 -'75 KZ400/KZ Diagram
#
1
CYLINDER ASSY,MASTER
43015-032
Unavailable
1
CYLINDER ASSY,MASTER
43015-032
Unavailable
1
CYLINDER ASSY,MASTER
43015-032
Unavailable
2
REPAIR SET-MASTER CYL
43073-001
$102.17
3
STOPPER-BOOTS
43025-001
Unavailable
4
BOOTS
43024-001
$7.20
5
CIRCLIP-TYPE-C,18MM
481J1800
$4.31
6
STOPPER-PISTON
43022-001
Unavailable
7
PISTON ASSY
43072-001
Unavailable
8
CUP-PRIMARY
43019-001
$16.61
9
SPRING ASSY-RETURN
43018-001
$24.74
10
VALVE ASSY-CHECK
43017-001
$14.80
11
LEVER,FRONT BRAKE
43029-003
$105.99
11
LEVER,FRONT BRAKE
43029-003
Unavailable
12
BOLT-LEVER FITTING
43033-001
Unavailable
13
CAP,OIL CUP
43026-003
Unavailable
14
PLATE-MASTER CYLINDE
43027-001
Unavailable
15
DIAPHRAGM
43028-001
$43.88
16
NUT,6MM
312N0600
$3.93
17
TUBE
43074-001
$4.23
18
WASHER-LOCK,8MM
43031-001
Unavailable
19
NUT,8MM
314N0800
$0.46
19
NUT,8MM
314N0800
Unavailable
20
BOLT-LEVER ADJUST
43030-002
Unavailable
21
HOLDER-MASTER CYL
43034-001
$39.96
22
WASHER PLAIN 6MM
411B0600
$2.84
23
BOLT HEX HEAD 6X25
110N0625
$5.46
24
WASHER,10.5X15X1.5
43067-001
$2.15
25
BOLT,OIL,L=23
92002-1888
$5.48
26
BOOT,DUST
49006-1041
$11.49
26
BOOT,DUST
49006-1041
$11.49
27
HOSE,CYLINDER BRAKE
43059-019
Unavailable
28
SWITCH-FRONT BRAKE
43065-001
Unavailable
29
JOINT,THREE WAY
43061-002
Unavailable
30
WASHER PLAIN 6MM
411B0600
$2.84
31
WASHER SPRING 6MM
461F0600
$0.69
32
BOLT 6X22
112B0622
$3.48
33
BOLT-HEX HEAD,6X32
110N0632
Unavailable
34
HOSE,CALIPER BRAKE
43059-020
Unavailable
35
PIPE,BRIDGE
43060-012
Unavailable
36
GROMMET-HOSE BRACKET
43064-001
Unavailable
