Description

Price

1

AXLE,FRONT

41068-045

Unavailable

2

COLLAR,FRONT AXLE

41069-028

Unavailable

3

DRUM ASY,FR BRK,BUFF

41034-035-80

$149.23

3

DRUM-ASSY,FR BRK,BUFF

41034-038-80

$198.80

4

OIL SEAL,WTC22427

92052-011

Unavailable

5

RING-SNAP,42MM

92033-1041

$6.16

6

BEARING-BALL,#6302C3

601B6302

$6.24

7

COLLAR,FR HUB BEARING

41039-026

Unavailable

8

OIL SEAL,WTC40528

92052-012

Unavailable

9

GEAR BOX ASSY

41078-005

$69.50

9

GEAR BOX ASSY

41078-006

$133.57

10

PIN,SPRING

41082-001

$3.92

11

WASHER,5.1X9X0.4

41063-001

$4.69

12

PINION,SPEEDOMETER

41060-016

Unavailable

13

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

14

DRIVE,SPEED,GEAR

41064-012

Unavailable

15

GEAR,SPEEDOMETER

41059-025

Unavailable

16

NUT,CASTLE,14MM

42045-020

$9.91

17

PIN-COTTER,3.0X25

550D3025

$0.58

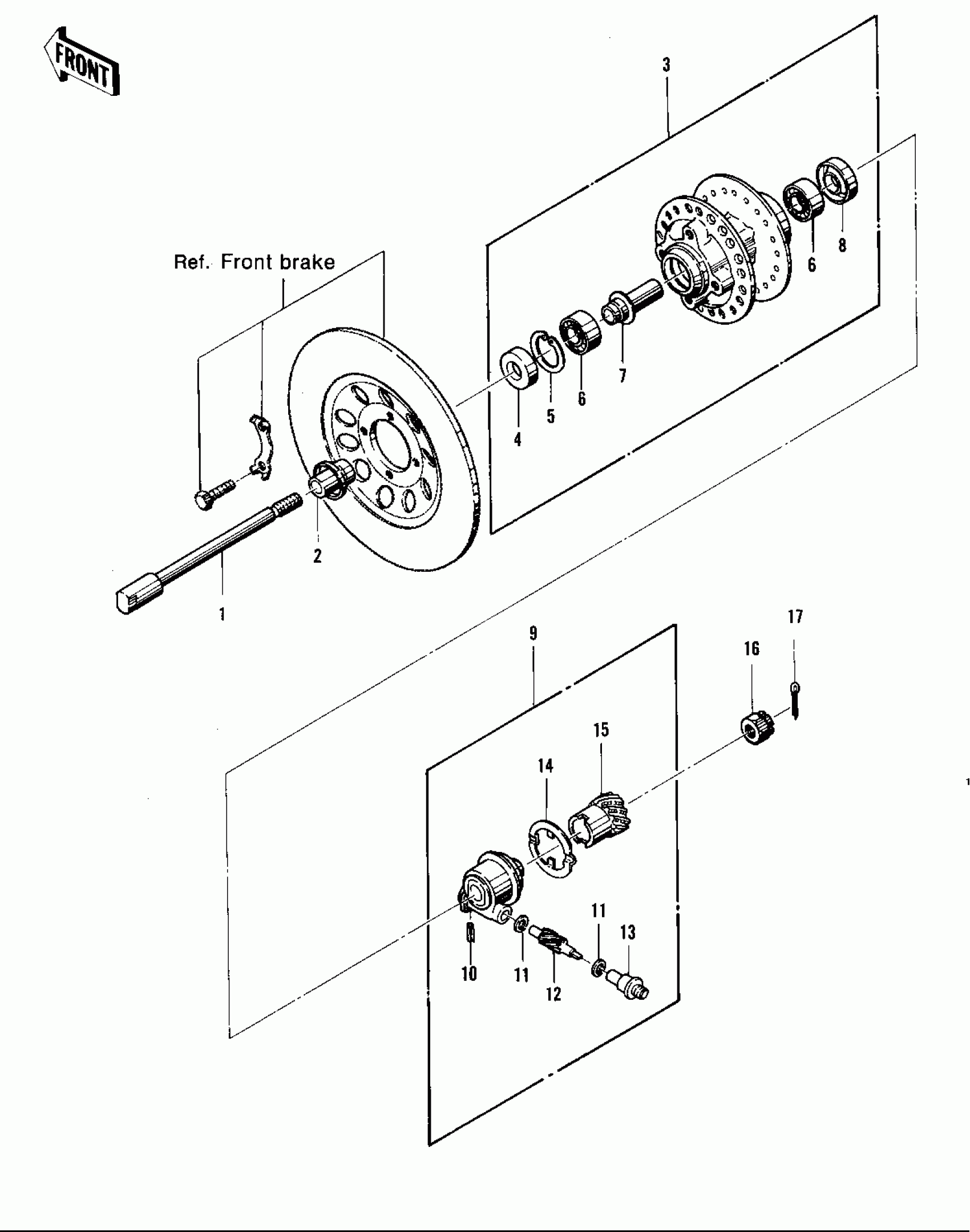

Kawasaki KZ400-D FRONT HUB ('74 -'75 KZ400/KZ400D) Diagram

AXLE,FRONT

COLLAR,FRONT AXLE

DRUM ASY,FR BRK,BUFF

DRUM-ASSY,FR BRK,BUFF

OIL SEAL,WTC22427

RING-SNAP,42MM

BEARING-BALL,#6302C3

COLLAR,FR HUB BEARING

OIL SEAL,WTC40528

GEAR BOX ASSY

GEAR BOX ASSY

PIN,SPRING

WASHER,5.1X9X0.4

PINION,SPEEDOMETER

BUSHING,SPEEDOMETER CABLE

DRIVE,SPEED,GEAR

GEAR,SPEEDOMETER

NUT,CASTLE,14MM

PIN-COTTER,3.0X25
