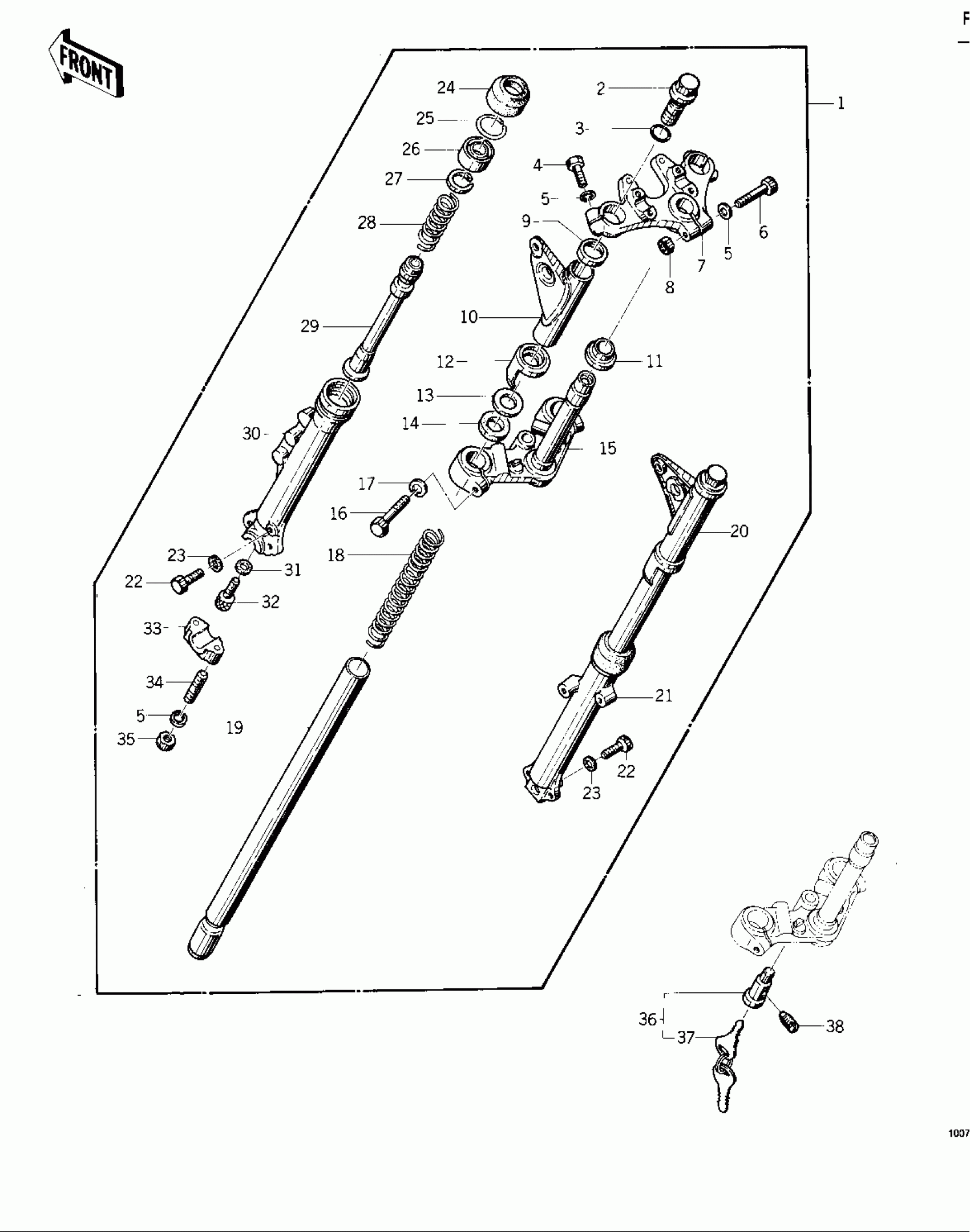

Kawasaki KZ400-D FRONT FORK ('74 -'75 KZ400/KZ400D) Diagram
#
Description
Price
1
FORK-FRONT
44001-181
$920.85
2
BOLT, FORK TOP
44032-012
$13.75
3
"O" RING,FORK TOP BLT
44046-023
Unavailable
4
BOLT-HEX HEAD.8M/M
44041-045
$25.59
5
WASHER SPRING 8MM
461F0800
$0.40
6
BOLT-HEX HEAD,8X55
44041-038
Unavailable
7
HEAD, STEERING STEM
44039-064
$180.35
8
NUT,LOCK,8MM
92015-1124
$5.42
9
GUIDE, FORK COVER
44064-022
$7.29
10
COVER,L.H.FORK,W/CAP
44033-5001
$93.39
11
RACE,STEERING STEM BEARING
92047-006
$12.67
12
CAP, FORK COVER
44064-021
$22.54
13
WASHER,FORK COVER
92022-297
$8.42
14
DAMPER RUBBER,FK COV
92075-240
Unavailable
15
STEM, STEERING
44037-077
$493.74
16
BOLT, HEX HEAD,10X30
44041-079
$12.37
17
WASHER SPRING 10MM
461F1000
$0.67
18
SPRING, FORK
44026-061
Unavailable
19
TUBE,FORK INNER
44013-049
Unavailable
20
COVER,R.H,FORK,W/CAP
44033-5002
$97.86
21
TUBE,RH,FORK OUTER
44006-056
$159.08
22
BOLT HEX HEAD 6X8
110B0608
$0.18
23
GASKET,DRAIN PLUG
44045-047
$9.34
24
SEAL,FORK
92093-1063
$34.25
25
RING,OIL SEAL STOPPER
44043-057
$6.52
26
SEAL-OIL,FORK
92049-1077
$20.75
27
RING, PISTON
44025-003
$9.18
28
SPRING,FORK CYLINDER
44026-054
$5.14
29
CYLINDER-FORK
44022-024
$59.20
30
TUBE,LH,FORK OUTER
44005-058
$181.64
31
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
32
BOLT,FORK CYLINDER
44041-078
$9.89
33
HOLDER, FRONT AXLE
44063-010
$29.78
34
NUT 8MM
312B0800
$0.58
35
NUT 8MM
312B0800
$0.58
36
LOCK ASSY,STEERING
27016-043
$35.97
38
SCREW,SEAT LOCK
92014-016
Unavailable
