Description

Price

1

CALIPER ASSY

43041-009

Unavailable

2

CAP,BREEDER

43057-004

Unavailable

3

BREEDER

43056-004

Unavailable

4

.SHAFT

43045-004

$20.76

5

.EMBLEM,CALIPER

56018-175

Unavailable

6

.CALIPER

43042-005

$131.14

7

RING,DUST SEAL

43058-003

Unavailable

8

DUST SEAL

43052-004

$17.27

9

"O" RING

43053-004

$7.53

10

.HOLDER,CALIPER

43044-007

$119.15

11

.PISTON,CALIPER

43048-004

$61.86

12

.RING,PISTON SEAL

43049-003

$7.10

13

.DUST SEAL,PISTON

43083-001

$7.58

14

.SHIM

43076-002

Unavailable

15

.PAD,INNER

43050-003

Unavailable

16

.PAD,OUTER

43051-002

Unavailable

17

.PLATE,PAD

43084-001

Unavailable

18

WASHER SPRING 5MM

461F0500

$0.69

19

SCREW-PAN-CROS

220B0512

$0.47

20

WASHER PLAIN 10MM

410B1000

$0.58

21

WASHER SPRING 10MM

461F1000

$0.67

22

BOLT,HEX HEAD,10X57

92007-044

Unavailable

23

SPRING

43086-001

Unavailable

24

BOLT, HEX HEAD, 8X25

92001-141

Unavailable

25

WASHER-LOCK

92088-016

Unavailable

26

DISC PLATE,FRONT BRK

41080-004

$253.99

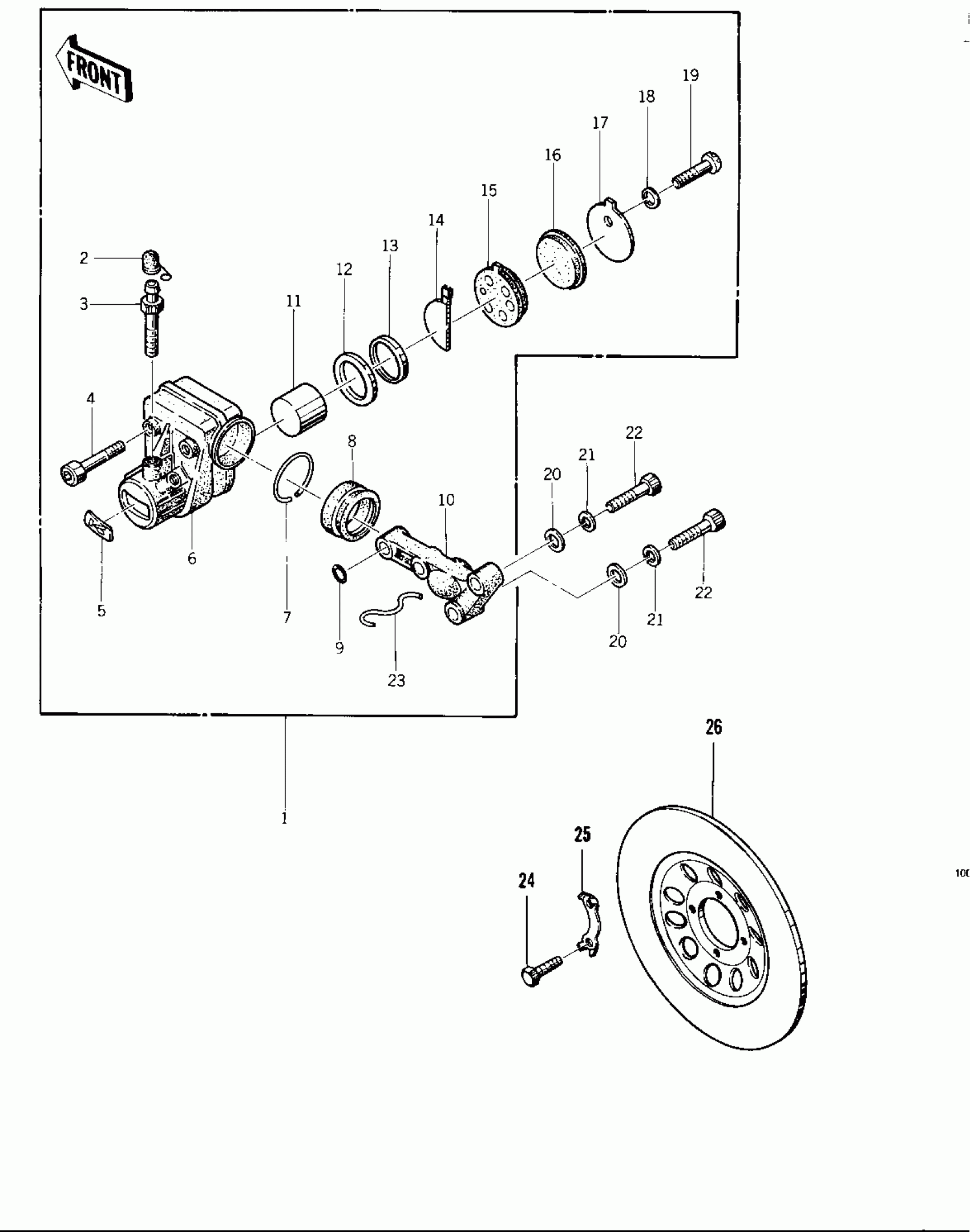

Kawasaki KZ400-D FRONT BRAKE ('74 -'75 KZ400/KZ400D) Diagram

CALIPER ASSY

CAP,BREEDER

BREEDER

.SHAFT

.EMBLEM,CALIPER

.CALIPER

RING,DUST SEAL

DUST SEAL

"O" RING

.HOLDER,CALIPER

.PISTON,CALIPER

.RING,PISTON SEAL

.DUST SEAL,PISTON

.SHIM

.PAD,INNER

.PAD,OUTER

.PLATE,PAD

WASHER SPRING 5MM

SCREW-PAN-CROS

WASHER PLAIN 10MM

WASHER SPRING 10MM

BOLT,HEX HEAD,10X57

SPRING

BOLT, HEX HEAD, 8X25

WASHER-LOCK

DISC PLATE,FRONT BRK
