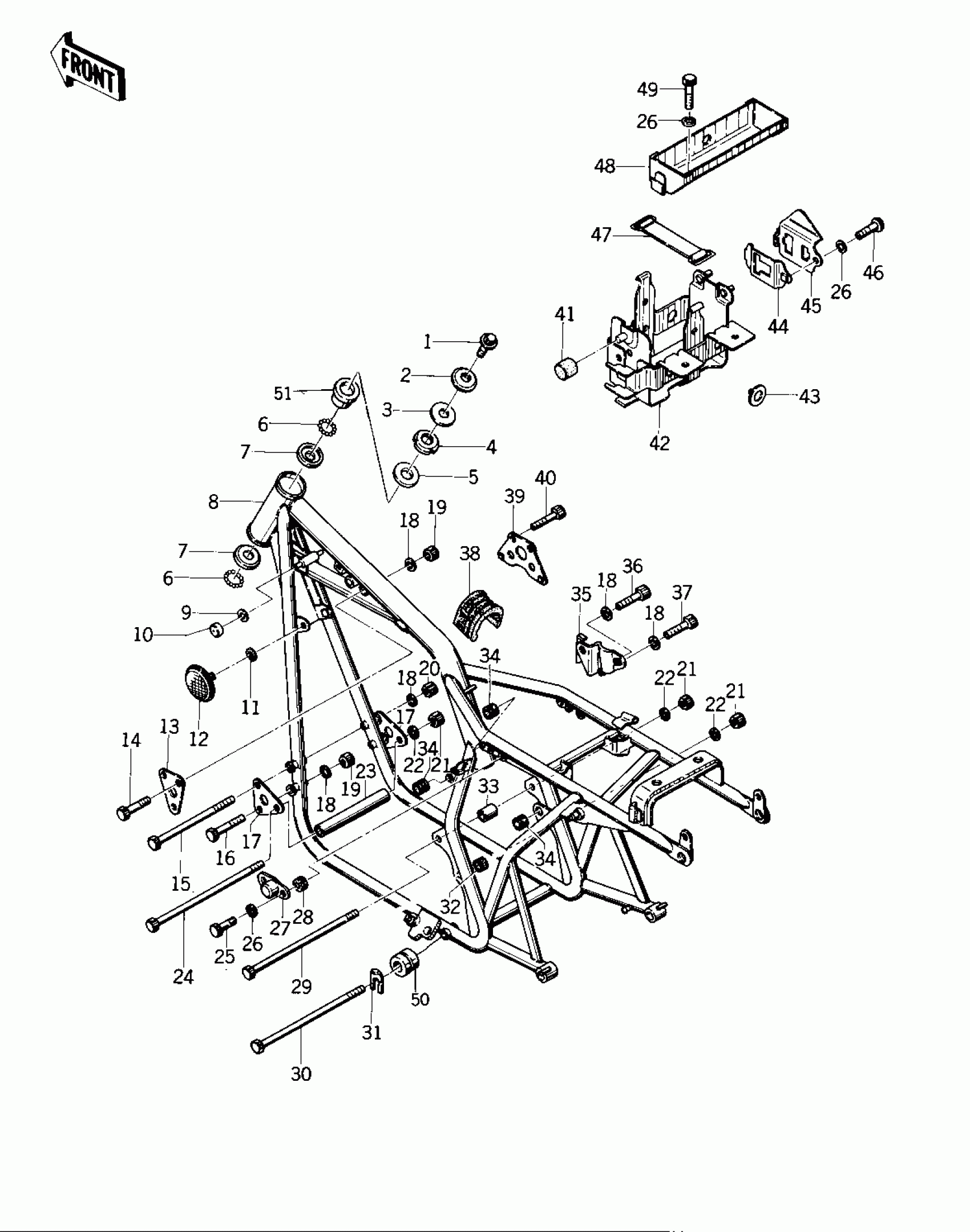

Kawasaki KZ400-D FRAME/FRAME FITTINGS ('74 -'75 KZ4 Diagram
#
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
$11.93
3
WASHER,WAVE
46100-003
$11.39
4
NUT,30MM
92090-007
$11.71
5
CAP,STEERING STEM
46098-016
$6.51
6
BALL-STEEL,1/4
600A0800
$0.62
7
RACE,STEERING STEM BEARING
92048-006
$11.61
8
FRAME
32002-093
Unavailable
9
WASHER,10.5X26X2.3
92022-044
$3.92
10
DAMPER,FUEL TANK
92075-125
$6.22
11
DAMPER,REFLECTOR
92094-011
$4.60
12
REFLECTOR,REFLEX,REAR
28012-009
$26.16
13
PLATE,ENG MOUNT,UPPER
32030-038
Unavailable
14
BOLT FLANGED 8X55
92001-1398
$4.04
14
BOLT FLANGED 8X55
92001-1398
$4.04
15
BOLT,HEX HEAD,8X253
92003-171
Unavailable
16
BOLT,HEX HEAD,8X59
110G0859
Unavailable
16
BOLT,FLANGED,8X60
92001-1581
$5.14
17
PLATE,ENG MOUNT,FRNT
32030-044
Unavailable
18
WASHER SPRING 8MM
461F0800
$0.40
19
NUT,8MM
311B0800
$0.67
20
NUT,LOCK,8MM
92015-1124
$5.42
20
NUT,LOCK,8MM
92015-1124
$5.42
21
NUT,LOCK,10MM
92019-021
$6.11
22
WASHER SPRING 10MM
461F1000
$0.67
23
COLLAR,ENG PLAT,FRNT
92027-233
Unavailable
24
BOLT,FLANGED,10X255
92001-1609
Unavailable
25
BOLT-UPSET 6X14
112B0614
Unavailable
26
WASHER SPRING 6MM
461F0600
$0.69
27
BRACKET,BATTERY CASE
32122-031
$5.49
28
DAMPER RUBBER
92075-242
$1.74
29
BOLT,FLANGED,10X220
92002-1197
$24.03
30
BOLT,HEX HEAD,10X292
92003-162
Unavailable
31
SHIM-ENG FIT FR,0.5MM
92025-053
Unavailable
31
SHIM-ENG FIT FR,0.8MM
92025-054
Unavailable
31
SHIM-ENG FIT FR,1.0MM
92025-055
Unavailable
31
SHIM-ENG FIT FR,1.6MM
92025-056
Unavailable
31
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
31
SHIM-ENG FIT FR,2.3MM
92025-058
Unavailable
32
COLLAR,ENG MOUNTING
92027-160
Unavailable
33
COLLAR,ENG MOUNT UPPE
92027-228
Unavailable
34
GROMMET
92071-056
$4.26
34
GROMMET
92071-056
$4.26
35
PLATE,ENG MOUNT,REAR
32030-034
$12.15
36
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
37
BOLT,8X20
115G0820
$5.14
38
DAMPER RUBBER,FL TNK
92075-215
Unavailable
39
BRACKET,IGNITION COIL
32058-045
$8.54
39
BRACKET,IGNITON COIL
32058-049
$11.85
40
BOLT,FLANGED,6X11
92003-208
$4.31
41
DAMPER
92075-243
Unavailable
42
CASE,BATTERY
32097-035
Unavailable
43
DAMPER,RUBBER
92075-078
$4.39
44
BRACKET,ELECT BASE
32129-004
$4.88
45
BRACKET,ELECT BASE
32129-003
$5.75
46
SCREW PAN HEAD 6X12
220B0612
Unavailable
47
BAND,L=90
92072-045
$14.90
48
CASE,TOOL
32098-023
Unavailable
49
BOLT,6X10
112G0610
$0.58
50
COLLAR
92027-250
Unavailable
51
RACE,STEERING STEM BEARING
92047-006
$12.67
