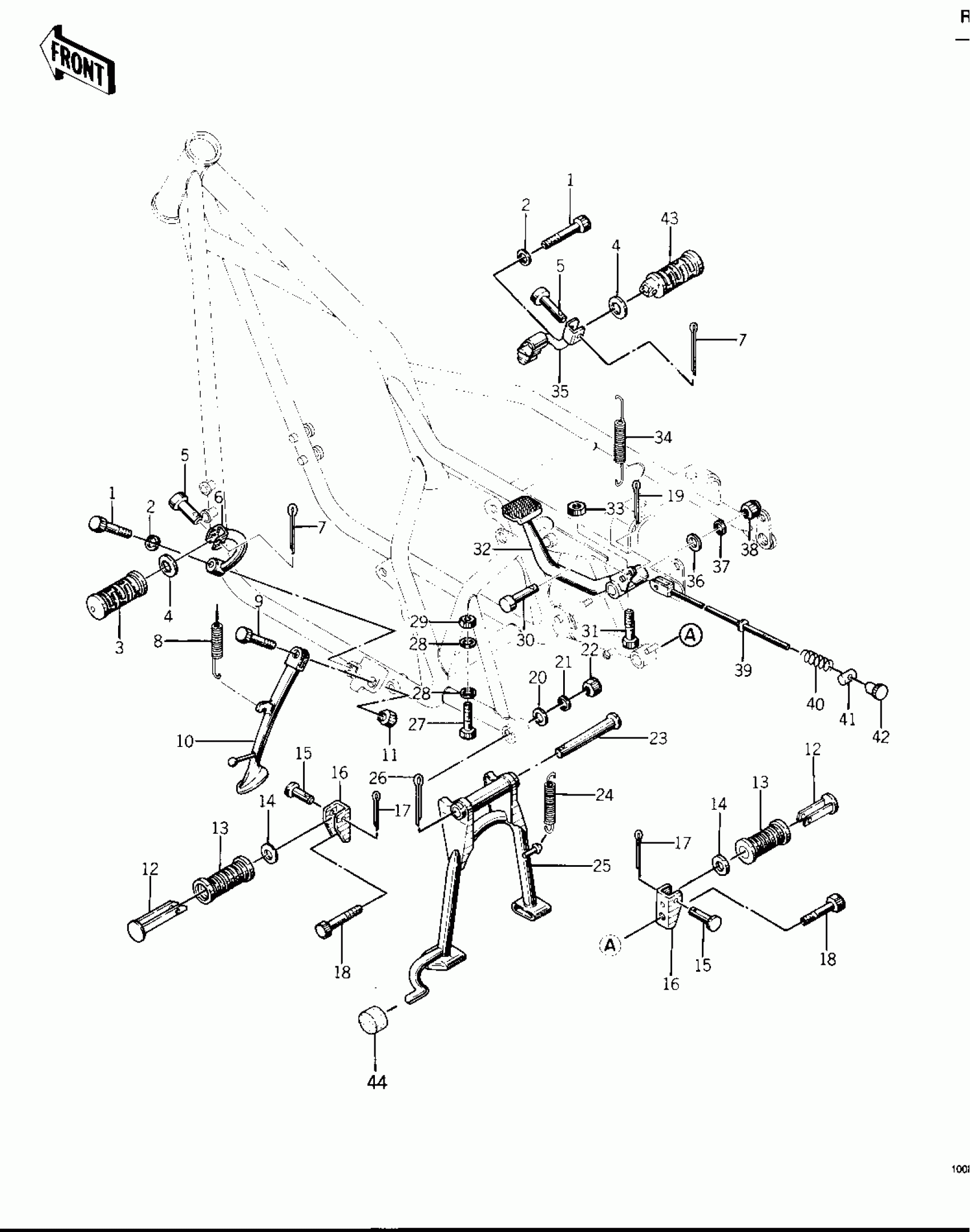

Kawasaki KZ400-D FOOTRESTS/STANDS/BRAKE PEDAL ('74 -'75 K Diagram
#
1
BOLT-HEX HEAD,12X36
113B1236A
$5.16
2
WASHER-SPRING,12MM
461F1200
$0.96
3
BAR-FOOTREST,L.H
34028-011
Unavailable
4
WASHER,25X36X2.3
92022-250
$5.00
5
PIN,8X31
92043-080
$5.52
6
BRACKET,FOOTREST,L.H
34003-053
$112.13
7
PIN COTTER 2.5X16
550D2516
$2.79
8
SPRING,SIDE STAND
34025-007
Unavailable
9
BOLT,SIDE STAND
92003-157
$9.91
10
STAND-SIDE
34024-048
$31.80
11
NUT-HEX-FINE,10MM
315B1000
$0.58
12
STEP,RR
34028-009
$26.11
12
STEP,RR
34028-009
$26.11
13
RUBBER,REAR FOOTREST
92076-024
$24.87
14
WASHER-PLAIN (OPT)
92022-199
Unavailable
15
PIN,6X28
92043-1464
$8.10
16
BRACKET,STEP
32054-1021
Unavailable
17
PIN-COTTER,2.0X12
550D2012
$1.11
18
BOLT,HEX HEAD,10X50
92001-1254
$4.38
19
PIN COTTER 2.5X16
550D2516
$2.79
20
WASHER PLAIN 10MM
410B1000
$0.58
21
WASHER SPRING 10MM
461F1000
$0.67
22
NUT-HEX-FINE,10MM
314B1000
$0.67
23
SHAFT-STAND,CNT
34019-015
$17.42
24
SPRING,STAND,CNT
34023-016
$16.50
25
STAND-MAIN
34011-053
$113.04
26
PIN-COTTER,3.0X30
550D3030
$2.51
27
BOLT 6X35
110R0635
Unavailable
28
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
29
NUT,LOCK,6MM
92019-008
$4.26
30
PIN,BRAKE ROD FITTING
92043-090
Unavailable
31
BOLT-UPSET
112G0625
$3.62
32
PEDAL,BRAKE
43001-064
$111.77
33
NUT 6MM
311B0600
$0.93
34
SPRING,BRAKE PEDAL
43005-029
$9.34
35
BRACKET,FOOTREST,R.H
34003-054
Unavailable
36
WASHER,8.5X20X1.6
92022-1561
$4.31
37
WASHER SPRING 8MM
461F0800
$0.40
38
NUT,CAP AND LOCK,8MM
92019-013
$14.88
39
SPRING,BRAKE ROD
43012-001
$4.65
40
SPRING,BRAKE ROD
43012-001
$4.65
41
PIN,BRAKE ROD
92043-065
$5.57
42
NUT,BRAKE ROD
92015-042
$6.22
43
BAR-FOOTREST,R.H
34028-012
$29.20
44
DAMPER RUBB-MAIN STND
92075-115
$9.48
