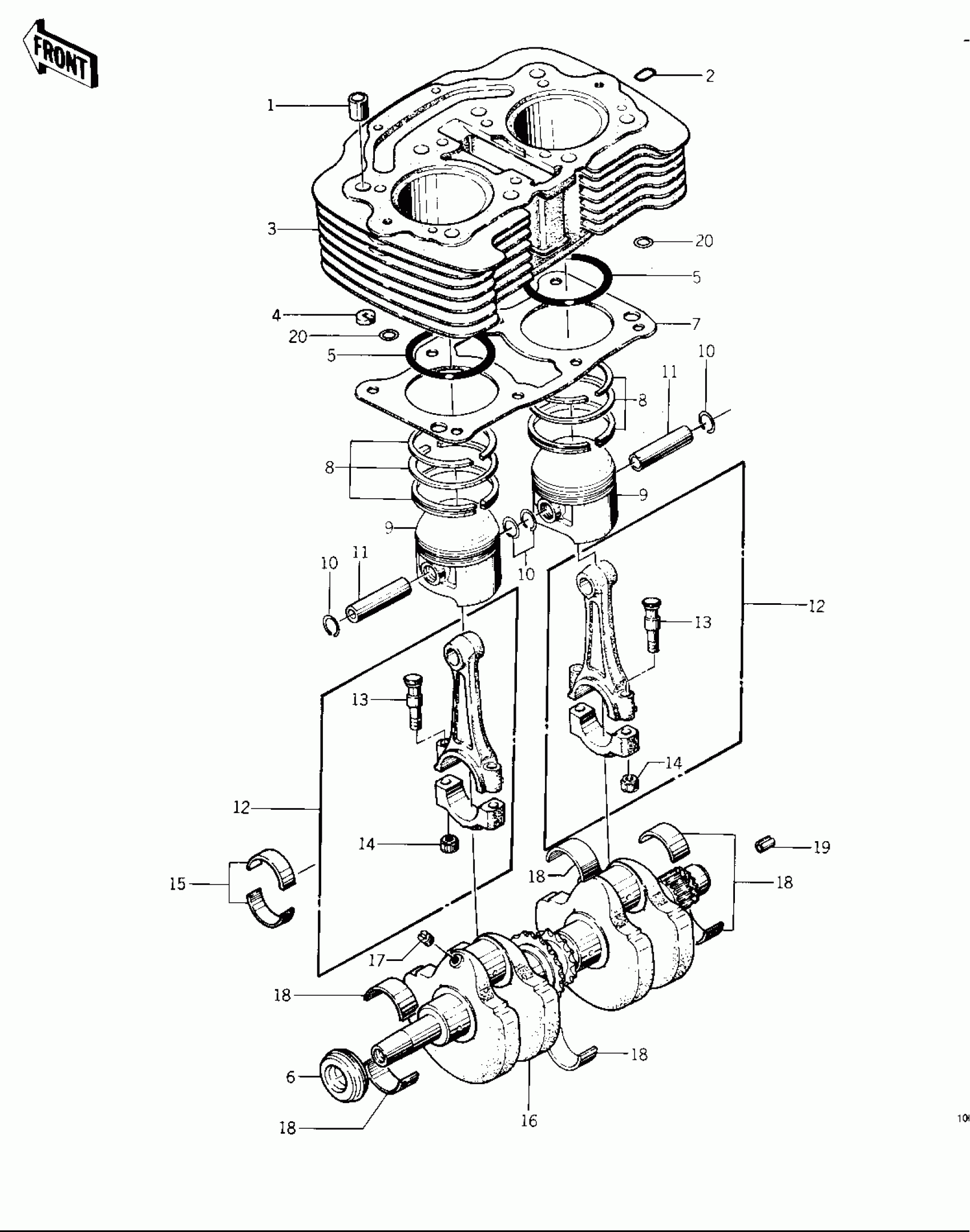

Kawasaki KZ400-D CYLINDER/PISTONS/CRANKSHAFT ('74 -'75 KZ Diagram
#
1
PIN,DOWEL,14X14
92042-032
Unavailable
2
"O" RING,CYLINDER
11009-1012
Unavailable
3
CYLINDER,
11005-146
Unavailable
3
CYLINDER,
11005-146
Unavailable
4
DAMPER RUBBER,CYLNDR
92075-256
Unavailable
5
"O" RING
92055-056
$27.55
6
OIL SEAL,L.H CRNKSFT
92050-064
$17.27
7
GASKET,CYLINDER BASE
11009-040
Unavailable
8
RING SET,PISTON,STD
13008-5028
Unavailable
8
RING SET,PISTON,STD
13008-5028
Unavailable
8
RING SET,0.020",O/S
13025-5013
Unavailable
8
RING SET,0.020",O/S
13025-5013
Unavailable
8
RING SET,0.040",O/S
13024-5012
Unavailable
8
RING SET,0.040",O/S
13024-5012
Unavailable
9
PISTON,STD
13001-069
Unavailable
9
PISTON,0.020" O.S
13029-070
Unavailable
9
PISTON,0.040" O.S
13027-063
Unavailable
10
RING-SNAP
92036-005
$4.07
11
PIN-PISTON
13002-029
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,H
13032-046-HH
Unavailable
12
CONNECTING ROD ASSY,I
13032-046-II
Unavailable
12
CONNECTING ROD ASSY,J
13032-046-JJ
Unavailable
12
UNAVAILABLE IN PRICE BOOK
13032-046-KK
Unavailable
13
BOLT
92001-169
Unavailable
13
BOLT
92001-169
Unavailable
14
NUT,CONNECTING ROD
92016-053
$2.13
14
NUT,FLANGED,8MM
92015-1311
Unavailable
15
METAL,CONROD BEARING
13034-037
Unavailable
15
METAL,CON ROD
13034-047
Unavailable
15
METAL,CON ROD
13034-048
Unavailable
16
CRANKSHAFT ASSY
13037-061
Unavailable
17
SCREW,SLOTTED,6X8
291H0608
$2.53
18
BUSHING,CRANKSHAFT,BROWN
92028-1102
$16.90
18
BUSHING,CRANKSHAFT,BROWN
92028-1102
$16.90
18
BUSHING,CRANKSHAFT,BROWN
92028-1102
$16.90
18
BUSHING,CRANKSHAFT,BROWN
92028-1102
$16.90
19
PIN-SPRING,4X8
555A0408
$3.92
20
RING-O,OD=13
92055-074
$8.58
20
"O" RING
92055-090
Unavailable
