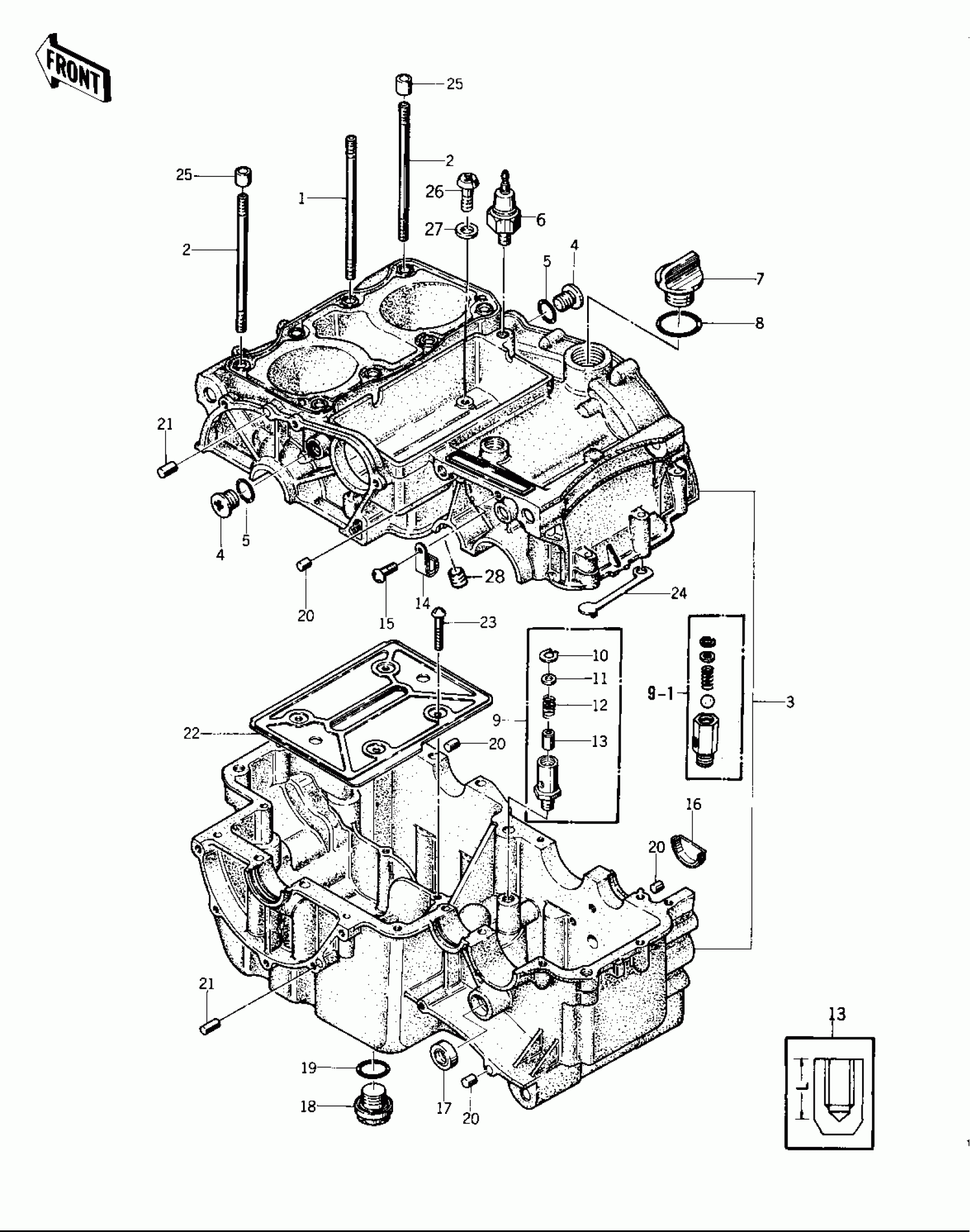

Kawasaki KZ400-D CRANKCASE ('74 -'75 KZ400/KZ400D) Diagram

#

Description
Price

1

.STUD,8X201

92004-052

$4.17

2

.STUD,8X210

92004-053

$7.90

3

CRANKCASE SET

14001-102

Unavailable

3

CRANKCASE SET

14001-102

Unavailable

3

CRANKCASE SET

14001-102

Unavailable

4

.PLUG

92066-067

$5.47

4

.PLUG

92066-067

$5.47

5

RING-O,13.5MM

92055-073

$9.71

6

SWITCH,OIL PRESSURE

27010-1157

Unavailable

7

CAP-OIL FILLER

16115-013

$18.64

8

RING-O,31.5X2.6

92055-049

$3.29

9

VALVE-ASSY-RELIEF

16130-1001

$41.95

9

VALVE-ASSY-RELIEF

16130-1001

$41.95

9-1

VALVE-ASSY-RELIEF

16130-1001

$41.95

10

CIRCLIP, 12MM

481J1200

Unavailable

11

SPACER,RELEAF VALVE

92026-097

$1.51

12

UNAVAILABLE IN PRICE BOOK

16133-00

Unavailable

12

SPRING,RELEAF VALVE

16133-003

Unavailable

13

VALVE,OIL FILTER

16126-1108

$37.32

13

PISTON,RELEAF VALVE

16126-002

$9.34

14

CLAMP,WIRING HARNESS

21126-008

$3.60

14

CLAMP,WIRING HARNESS

21126-008

Unavailable

15

SCREW PAN HEAD 6X12

220B0612

Unavailable

16

RECEIVER,OIL

14015-005

Unavailable

17

SEAL-OIL,TB13225.5

92051-005

$5.91

18

PLUG,OIL DRAIN

92001-1183

$55.65

18

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

19

O RING,22MM

670B2022

$3.57

19

GASKET,12X22X2

92065-097

$0.66

20

PIN,DOWEL,6.3X8X14

92042-007

$4.31

21

PIN-DOWEL,6X12

551A0612

$0.78

22

PLATE

14082-001

$7.19

23

SCREW PAN HEAD 6X12

220B0612

Unavailable

24

CLAMP,OVERFLOW HOSE

92037-149

Unavailable

25

PIN,DOWEL,10X14

92043-1037

$0.66

26

SCREW PAN HEAD 6X12

220B0612

Unavailable

27

WASHER,6.2X11X1

92022-304

$2.76

28

NOZZLE,BLACK

92062-011

$8.37
