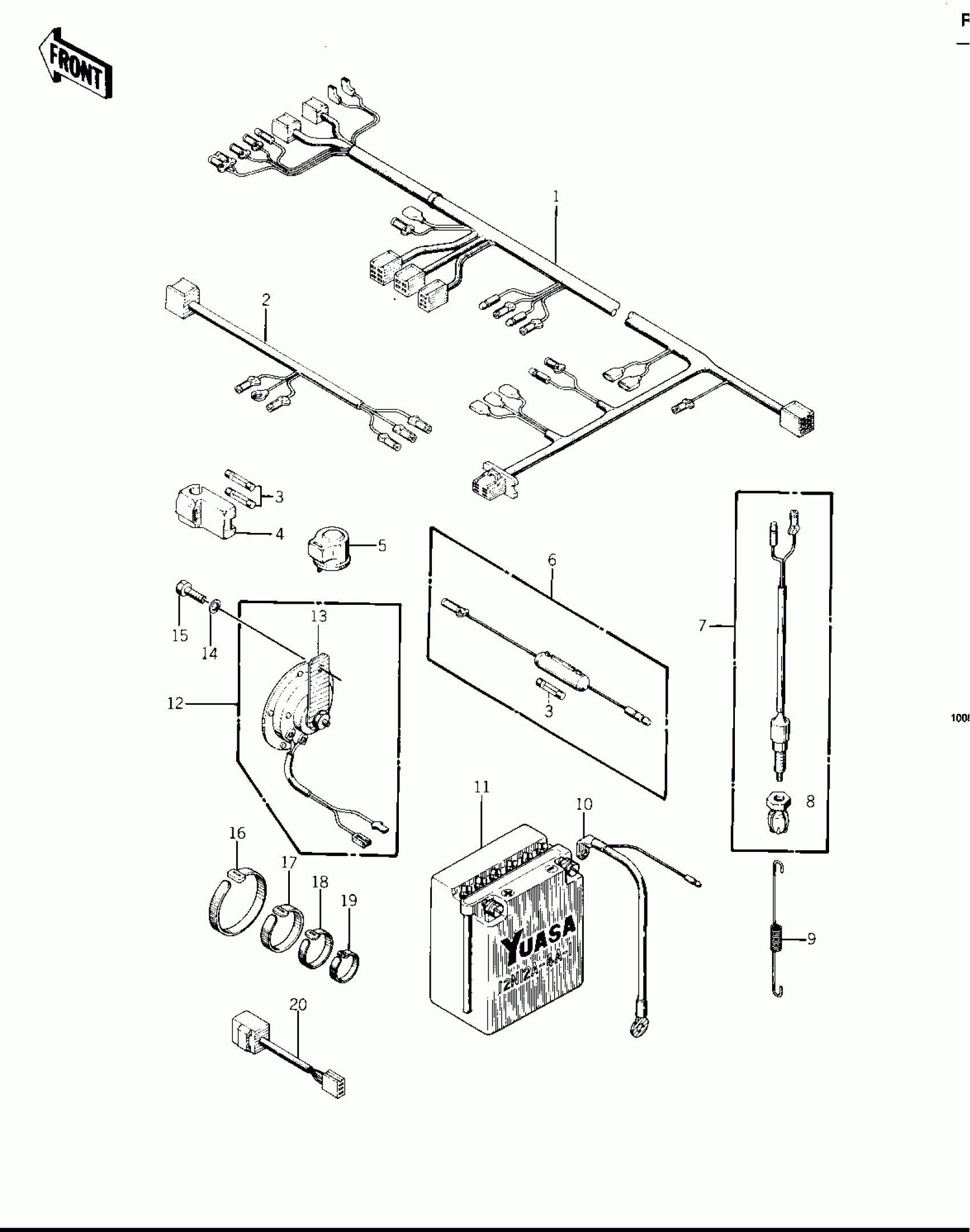

Kawasaki KZ400-D CHASSIS ELECTRICAL EQUIPMENT ('74 -'75 K Diagram

#

Description
Price

1

WIRING HARNESS MAIN

26001-119

Unavailable

2

WIRING HARNESS REAR

26002-049

Unavailable

3

FUSE,20A,L=25

26006-005

$5.06

4

HOLDER,SPARE FUSE

26016-002

Unavailable

5

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

6

FUSE ASSY 20A

26004-024

$22.50

7

SWITCH,BRAKE LAMP

27010-025

$29.24

8

NUT,BRAKE LAMP SWITCH

27037-001

$29.24

9

SPRING,BRAKE LIGHT SW

27011-015

$10.29

10

WIRE BATTERY LEAD

26010-036

$15.95

11

YUA BAT 12N12A-4A-1

26012-045

$57.01

12

HORN

27003-053

$207.36

13

BRACKET,HORN

27038-002

$2.42

14

WASHER SPRING 8MM

461F0800

$0.40

15

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

16

BAND,L=218

92072-032

$5.00

17

BAND,L=149

92072-031

$5.00

18

BAND,L=123

92072-030

$5.00

19

BAND,L=95

92072-067

Unavailable

20

SWITCH,BK LIGHT IND

28019-002

$67.73
