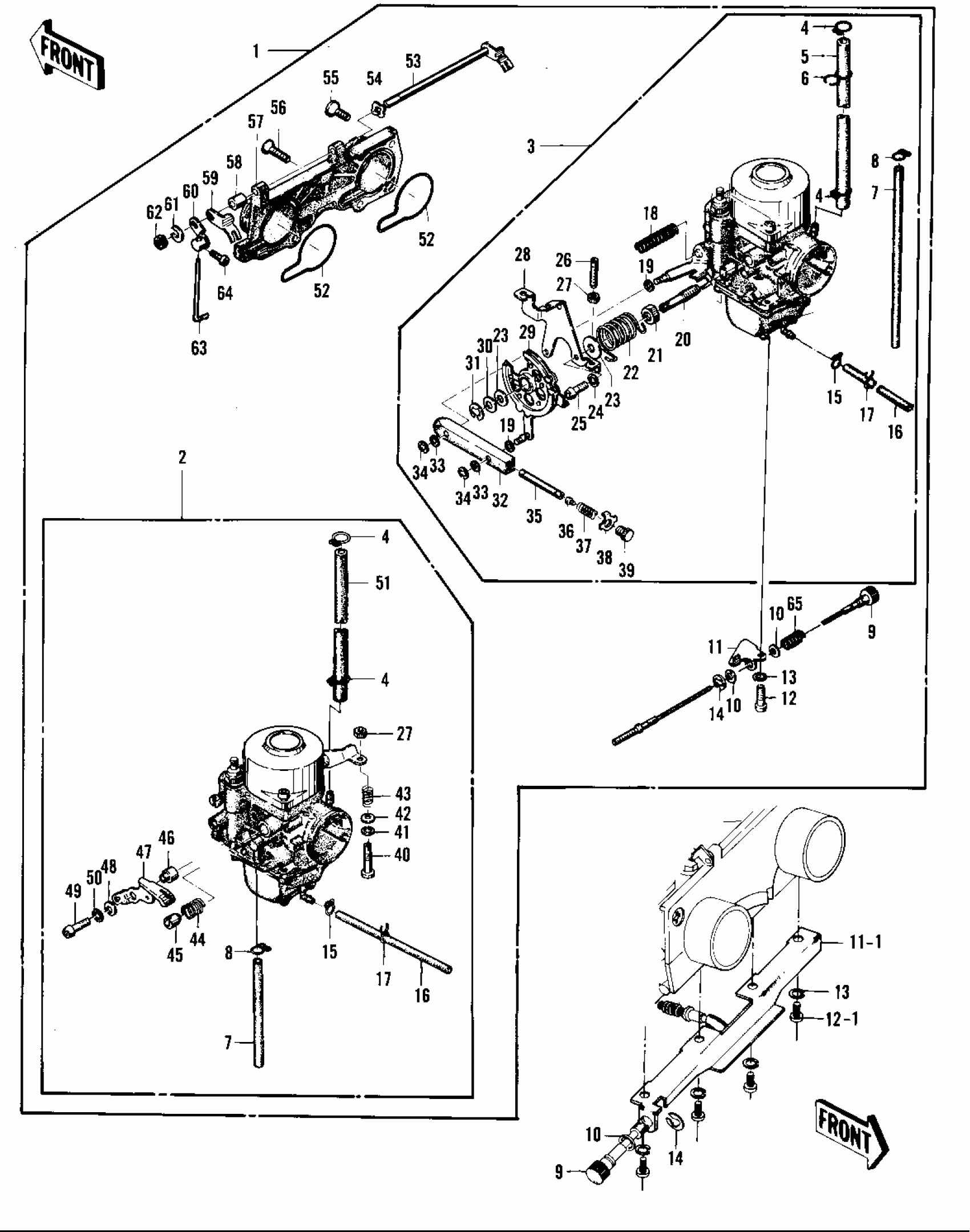

Kawasaki KZ400-D CARBURETOR ASSY ('74 -'75 KZ400/KZ Diagram
#
1
CARBURETOR ASSY
16001-246
$647.21
1
CARBURETOR ASSY
16001-246
$647.21
1
CARBURETOR ASSY
16001-246
$647.21
2
CARBURETOR,R.H
16001-247
$365.94
2
CARBURETOR,R.H
16001-247
$365.94
2
CARBURETOR,R.H
16001-247
$365.94
3
CARBURETOR,L.H
16001-248
$312.44
3
CARBURETOR,L.H
16001-248
$312.44
3
CARBURETOR,L.H
16001-248
$312.44
4
CLAMP,FUEL HOSE
92037-1040
Unavailable
5
HOSE,FUEL
92059-112
Unavailable
6
CLAMP,FUEL HOSE
16044-005
$1.20
7
TUBE,4.5X8X380
92059-110
Unavailable
8
CLAMP,HOSE
16044-004
$0.55
9
SCREW,THROTTLE STOP
16021-024
$21.53
10
WASHER,PLAIN,7MM
16039-029
$2.03
10
WASHER,PLAIN,7MM
16039-029
$2.03
11
PLATE,THR STOP SCREW
16055-008
$3.90
11-1
STAY PLATE
16065-044
$20.80
12
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
12-1
SCREW PAN HEAD 4X16
220B0416
$1.66
13
WASHER SPRING 4MM
461F0400
Unavailable
13
WASHER SPRING 4MM
461F0400
Unavailable
14
CIRCLIP-TYPE-E,6MM
482J6000
$0.69
15
CLAMP,TUBE
92037-1142
$4.31
16
TUBE,3.5X6.5X330
92059-111
$22.10
17
CLAMP,OVERFLOW HOSE
16044-002
Unavailable
18
SPRING,THR CABLE PLY
16040-013
$4.07
19
WASHER,WAVE
16034-009
$2.05
20
SCREW,BALANCE ADJUST
16041-008
$15.01
21
NUT,5MM
16003-010
$2.08
22
SPRING,ADJUST
16040-011
$9.06
23
WASHER,PLAIN
16039-023
$1.52
24
WASHER SPRING 5MM
461F0500
$0.69
25
SCREW PAN HEAD 5X10
220B0510
$0.69
26
SCREW,SLOTTED
16046-006
$3.73
27
NUT,5MM
16003-011
$2.24
28
HOLDER,THR CABL PULY
16070-002
$22.47
29
PULLEY,THROTTLE CABL
16074-003
$29.11
30
WASHER,PLAIN,8MM
16039-024
$1.57
31
CIRCLIP-TYPE-E,6MM
482J6000
$0.69
32
LINK,ADJUSTER
16071-002
$29.22
33
WASHER,PLAIN,3MM
16039-030
$2.67
34
CIRCLIP
16008-013
$2.05
34
CIRCLIP
16008-013
$2.05
35
ROD CABLE ADJUSTING
16002-015
$7.31
36
PLUG,CABLE ADJST ROD
16042-007
$2.60
37
SPRING,CABLE ADJUST
16040-012
$2.42
38
WASHER,LOCK,7MM
16054-006
$1.76
39
BOLT,HEX HEAD,7MM
16067-007
$4.45
40
SCREW,THROTTLE STOP
16021-025
$7.16
41
WASHER,PLAIN,5MM
16039-025
$3.15
42
WASHER,PLAIN,5MM
16039-026
$1.52
43
SPRING,THR STOP SCREW
16022-012
$2.21
44
SPRING,CHOKE LEVER
16040-014
Unavailable
45
CONTACT,CHOKE LEVER
16147-002
Unavailable
46
COLLAR,CHOKE LEVER
16073-010
Unavailable
47
LEVER,CHOKE
16063-006
Unavailable
48
WASHER,PLAIN
16039-027
Unavailable
49
SCREW-PAN-CROS
220B0520
$0.68
50
WASHER SPRING 5MM
461F0500
$0.69
51
HOSE,FUEL
92059-113
$11.39
52
"O" RING,CARB MOUNT
16038-015
Unavailable
53
SHAFT,THROTTLE VALVE
16041-009
$12.03
54
WASHER,WAVE
16034-010
$1.76
55
SCREW-PAN-CROS,6X16
220B0616
$2.84
56
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
57
PLATE,CARB MOUNTING
16070-003
$54.72
58
COLLAR,CHOKE LEV SHFT
16073-011
$2.05
59
LEVER,THROTTLE VALVE
16063-007
$4.30
60
LEVER,THROTTLE VALVE
16063-008
Unavailable
61
WASHER,LOCK,6MM
16054-007
Unavailable
62
NUT,6MM
16003-012
Unavailable
63
ROD
16024-013
Unavailable
64
SCREW PAN HEAD 3X5
220B0305A
$0.59
65
SPRING,THR STOP SCREW
16022-011
$7.24
