Description

Price

1

SHOCK ABSBR RR

45014-1003

Unavailable

2

DAMPER,SHOCKABSORBER

45017-015

Unavailable

3

COLLAR,SHOCKABSORBER

45016-008

$9.91

4

DAMPER,SHOCKABSORBER

45017-012

$14.90

5

NUT,CAP,10MM

92020-003

$6.52

6

WASHER SPRING 10MM

461F1000

$0.67

7

BOLT,8X50

92001-1399

$9.48

8

WASHER,10.5X22X4.5

92022-1022

$5.24

9

BOLT HEX HEAD 10X35

113N1035

$9.14

10

NUT-LOCK,14MM

92019-011

Unavailable

11

CAP,SWING ARM

11012-1029

$20.99

12

BEARING-NEEDLE,HK2216

92046-1115

$20.02

13

ARM-COMP-SWING

33001-1106

$203.73

14

GREASE NIPPLE

92005-002

Unavailable

15

SLEEVE,SWING ARM

42036-1017

Unavailable

16

SHAFT-SWING ARM

33032-1002

$65.01

17

ADJUSTER-CHAIN

33040-043

$28.47

18

NUT 8MM

312B0800

$0.58

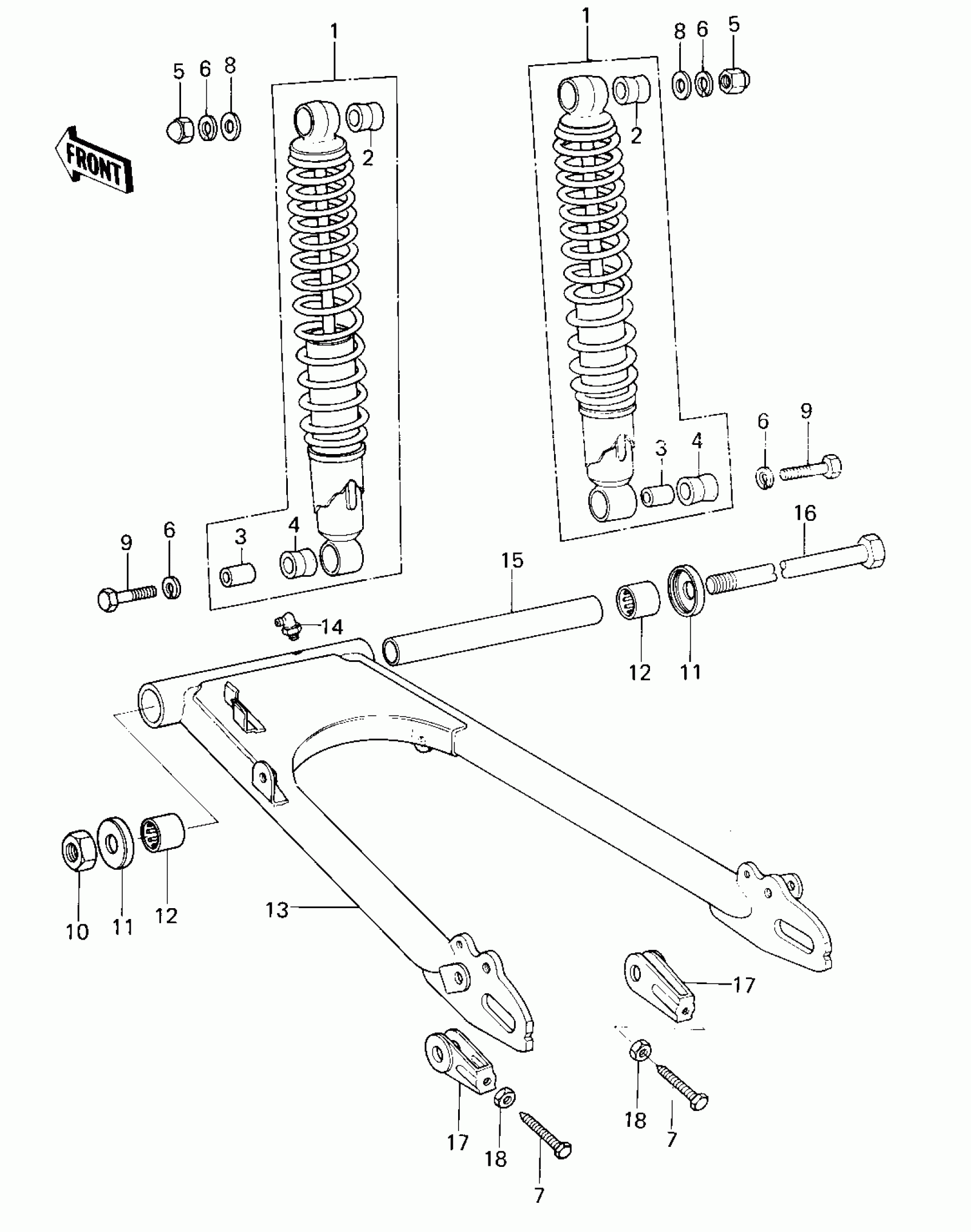

Kawasaki KZ400-C1 SWING ARM/SHOCK ABSORBERS Diagram

SHOCK ABSBR RR

DAMPER,SHOCKABSORBER

COLLAR,SHOCKABSORBER

DAMPER,SHOCKABSORBER

NUT,CAP,10MM

WASHER SPRING 10MM

BOLT,8X50

WASHER,10.5X22X4.5

BOLT HEX HEAD 10X35

NUT-LOCK,14MM

CAP,SWING ARM

BEARING-NEEDLE,HK2216

ARM-COMP-SWING

GREASE NIPPLE

SLEEVE,SWING ARM

SHAFT-SWING ARM

ADJUSTER-CHAIN

NUT 8MM
