Description

Price

1

SEAT-ASSY,DUAL

53001-1032

Unavailable

2

DAMPER RUBBER-SEAT

92075-156

Unavailable

3

DAMPER

92075-099

$5.52

4

HINGE,SEAT

53009-1007

$6.40

5

HINGE, REAR

53009-026

$16.61

6

HOOK,SEAT

53008-024

Unavailable

7

WASHER PLAIN 6MM

411B0600

$2.84

8

WASHER SPRING 6MM

461F0600

$0.69

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

PIN,SEAT PIVOT

92043-1064

Unavailable

11

COTTER PIN

92041-003

$5.72

12

PIN, DUAL SEAT PIVOT

53011-006

$5.24

13

BOLT,HELMET HOOK,6MM

92001-1021

$5.17

14

SCREW-PAN-CROS,6X14

220B0614

$1.48

15

WASHER SPRING 6MM

461F0600

$0.69

16

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

17

COVER,SEAT,L.COPPER

14025-1008-A2

Unavailable

18

SCREW,TAPPING,4X14

92008-010

$4.42

19

DAMPER

92075-1057

$4.92

20

PLATE,SEAT COVER

13169-1026

Unavailable

21

NUT,SEAT COVER

92018-006

$5.22

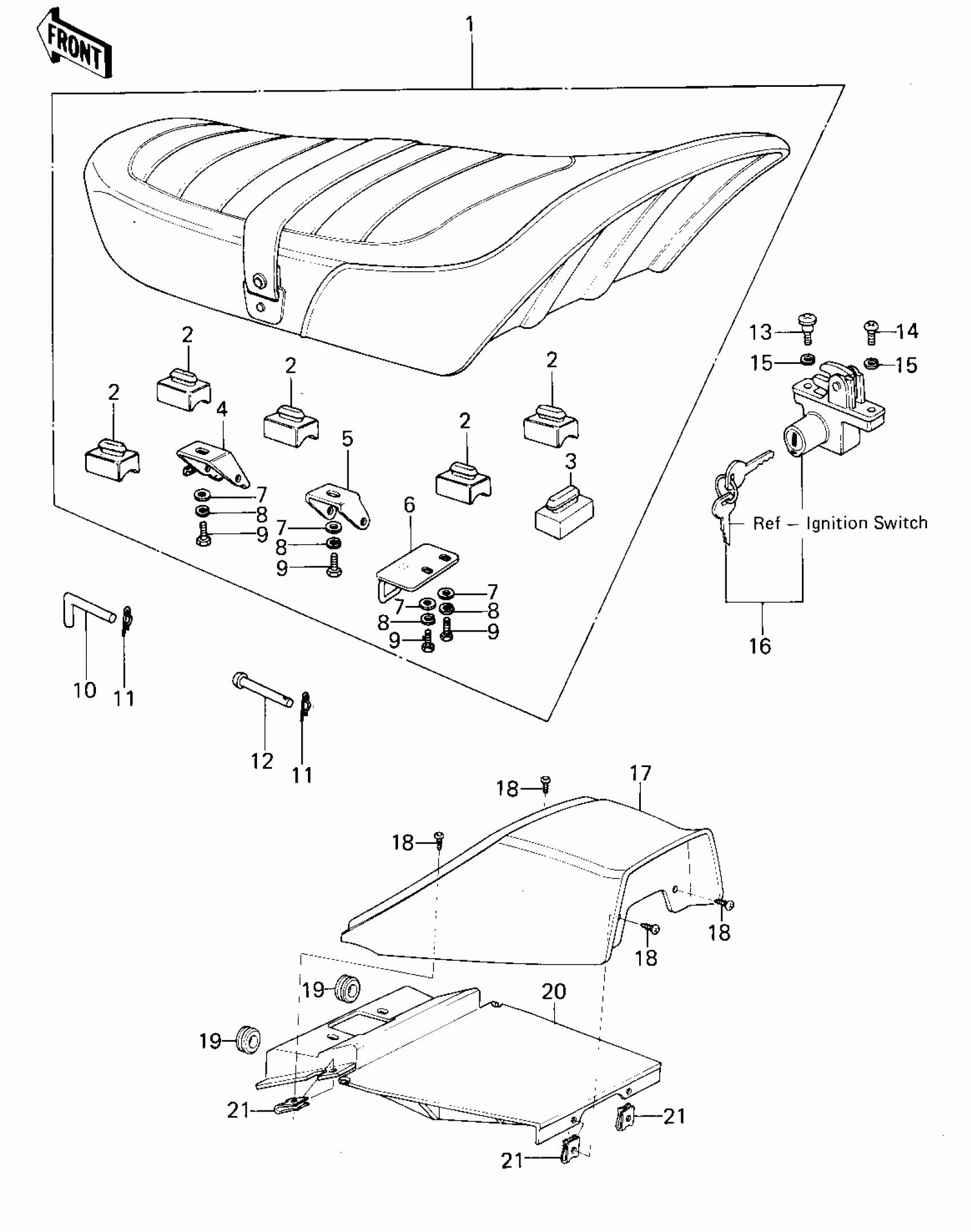

Kawasaki KZ400-C1 SEAT/SEAT COVER Diagram
