Description

Price

1

SHAFT,ROCKER

12020-1001

Unavailable

2

GASKET,16X19.7X1.5

11009-1106

$6.26

3

NUT,6MM

92016-061

$4.69

4

SCREW,6MM

92009-1032

$7.29

5

ARM,ROCKER

12016-1001

Unavailable

6

COLLET,RETAINER

12011-004

$5.46

7

RETAINER,VALVE SPRING

12009-006

$11.50

8

SPRING,OUTER VALVE

12007-013

$16.53

9

SPRING,INNER VALVE

12007-014

$16.53

10

SEAL-OIL,RV37129.5

92049-016

$18.35

11

SEAT,VLV INNER SPRING

12010-006

Unavailable

12

SEAT,VLV OUTER SPRING

12010-005

$8.12

13

VALVE,EXHAUST

12005-1001

Unavailable

14

VALVE,INTAKE

12004-1001

Unavailable

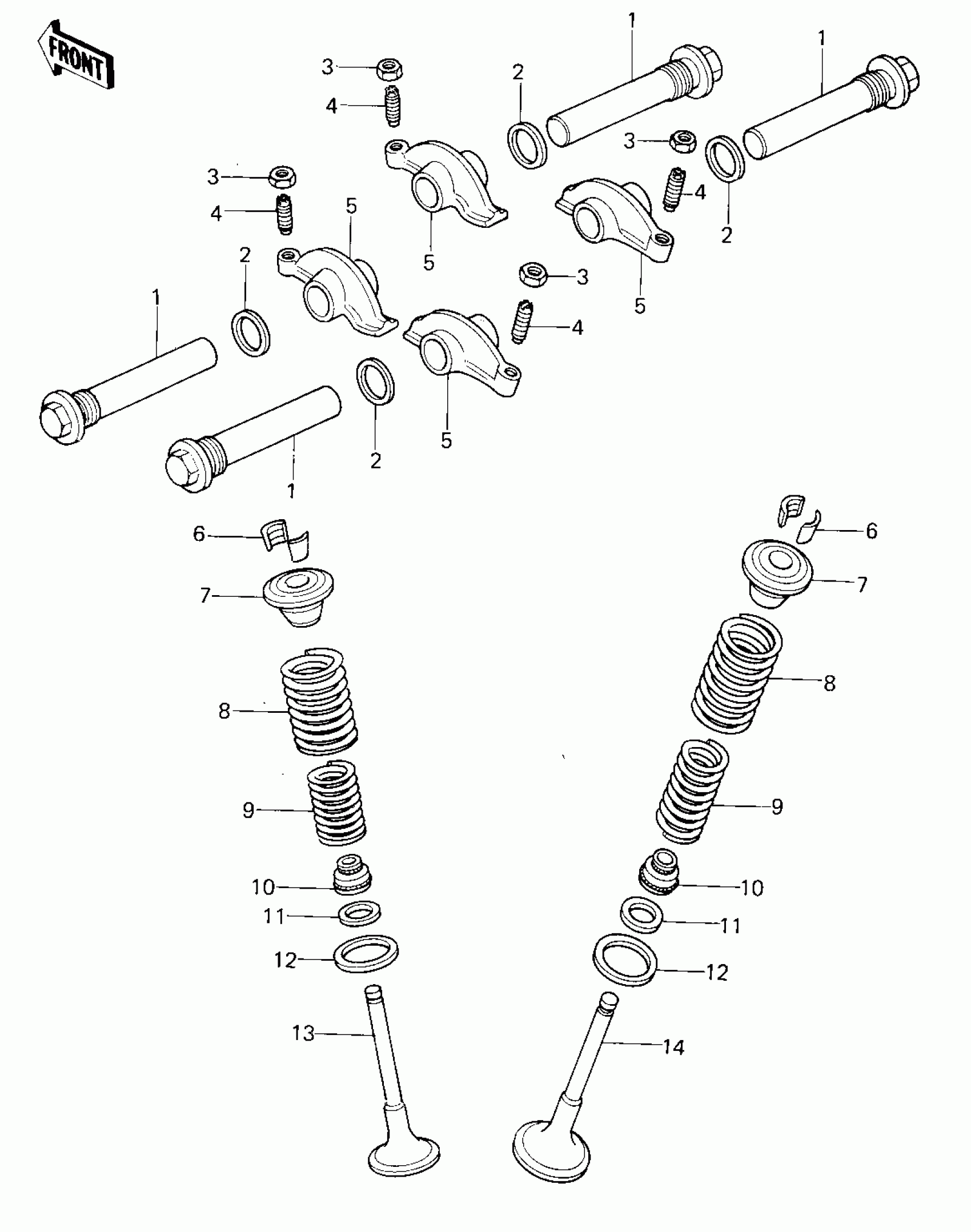

Kawasaki KZ400-C1 ROCKER ARMS/VALVES Diagram

SHAFT,ROCKER

GASKET,16X19.7X1.5

NUT,6MM

SCREW,6MM

ARM,ROCKER

COLLET,RETAINER

RETAINER,VALVE SPRING

SPRING,OUTER VALVE

SPRING,INNER VALVE

SEAL-OIL,RV37129.5

SEAT,VLV INNER SPRING

SEAT,VLV OUTER SPRING

VALVE,EXHAUST

VALVE,INTAKE
