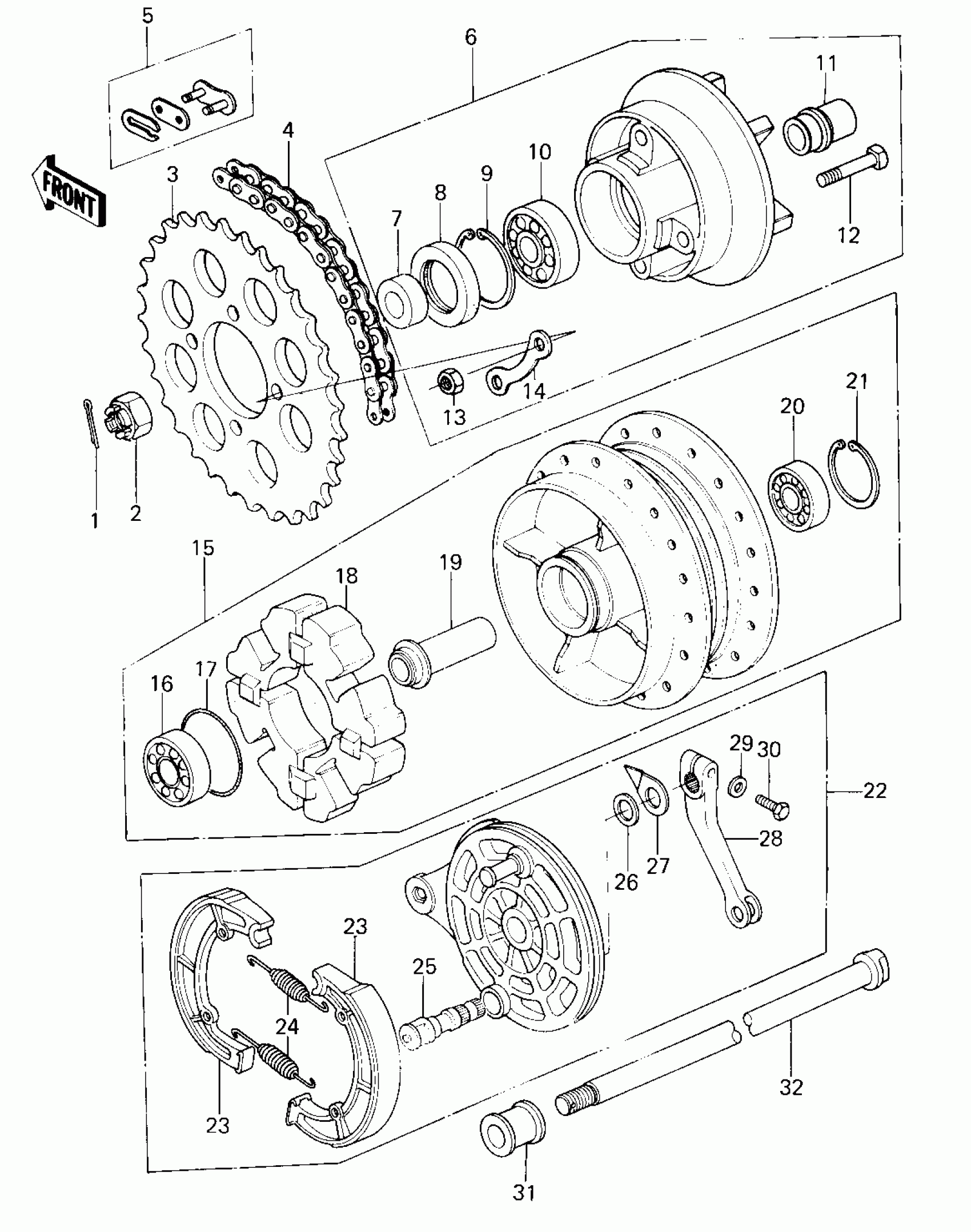

Kawasaki KZ400-C1 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.57

2

NUT,16MM

92015-055

$11.03

3

REAR SPROCKET,45T

42041-145

$175.08

4

DR CHAIN 530X100

92057-092

$164.88

5

CHAIN JOINT 530

92058-008

Unavailable

6

COUPLING ASSY,REAR

42033-1002

$194.50

7

COLLAR,COUPLING,L.H.

92027-1014

$25.63

8

SEAL-OIL,TWC35527

92052-006

Unavailable

9

RING-SNAP,52MM

92033-1043

$6.15

10

BEARING-BALL,#6205C3

601B6205

$14.76

11

SLEEVE,RR HUB COUPLING

42036-1002

Unavailable

12

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

13

NUT-HEX-FINE,10MM

314B1000

Unavailable

14

WASHER,SPROCKET LOCK

92088-005

$4.88

15

DRUM-ASSY,RR BRK

41034-1005

$292.06

16

BEARING-BALL,#6303C3

601B6303

$6.32

17

O RING,60MM

671B2560

$5.13

18

DAMPER,SHOCK,RR HUB

92075-1008

Unavailable

19

COLLAR,REAR HUB BRG.

92027-1013

$14.71

20

BEARING-BALL

601B6303U

$21.35

21

RING-SNAP,47MM

92033-1042

$3.22

22

PANEL-ASSY-BRAKE,RR

41035-1089

$378.74

23

SHOE-BRAKE

41048-1069

$22.11

24

SPRING,BRAKE SHOE

42020-004

$6.48

25

CAM-BRAKE

41050-1001

$36.94

26

SEAL,BRAKE CAM

41051-003

$3.25

27

INDICATOR,BRAKE SHOE

41085-004

Unavailable

28

LEVER-BRAKE CAM

41053-1001

$36.34

29

WASHER PLAIN 8MM

410B0800

Unavailable

30

BOLT HEX HEAD 8X28

114G0828

Unavailable

31

COLLAR,REAR AXLE,R.H.

92027-1015

$11.22

32

AXLE,REAR

41068-1004

$41.68
