Description

Price

1

ELEMENT-OIL FILTER

16099-003

$12.20

2

WASHER,20.5X30X1

92022-1012

$4.34

3

SPRING,OIL FILTER

92081-1018

$4.65

4

O RING,90MM

671B2590

$9.91

5

COVER,OIL FILTER

16101-004

$44.52

6

O RING,16MM

670B2016

$1.36

7

VALVE,OIL FILTER

16126-1108

$41.98

8

SPRING

92081-109

$11.29

9

BALL-STEEL,3/8"

600A1200

$1.56

10

PIN,SPRING,2X20

92043-111

$6.27

11

FILTER,OIL

16111-003

$20.68

12

GASKET,OIL FILTER COVER

11009-1874

$7.55

13

COVER,OIL STRAINER

16101-003

$19.22

14

SCREW PAN HEAD 6X30

220B0630

$3.41

15

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16

OIL PUMP ASSY

16082-1001

Unavailable

17

PIN-DOWEL,6X12

551A0612

$0.94

18

GASKET,OIL PUMP

11009-1014

Unavailable

19

SCREW PAN HEAD 6X10

220B0610

$3.14

20

SCREW PAN HEAD 6X25

220B0625

$2.60

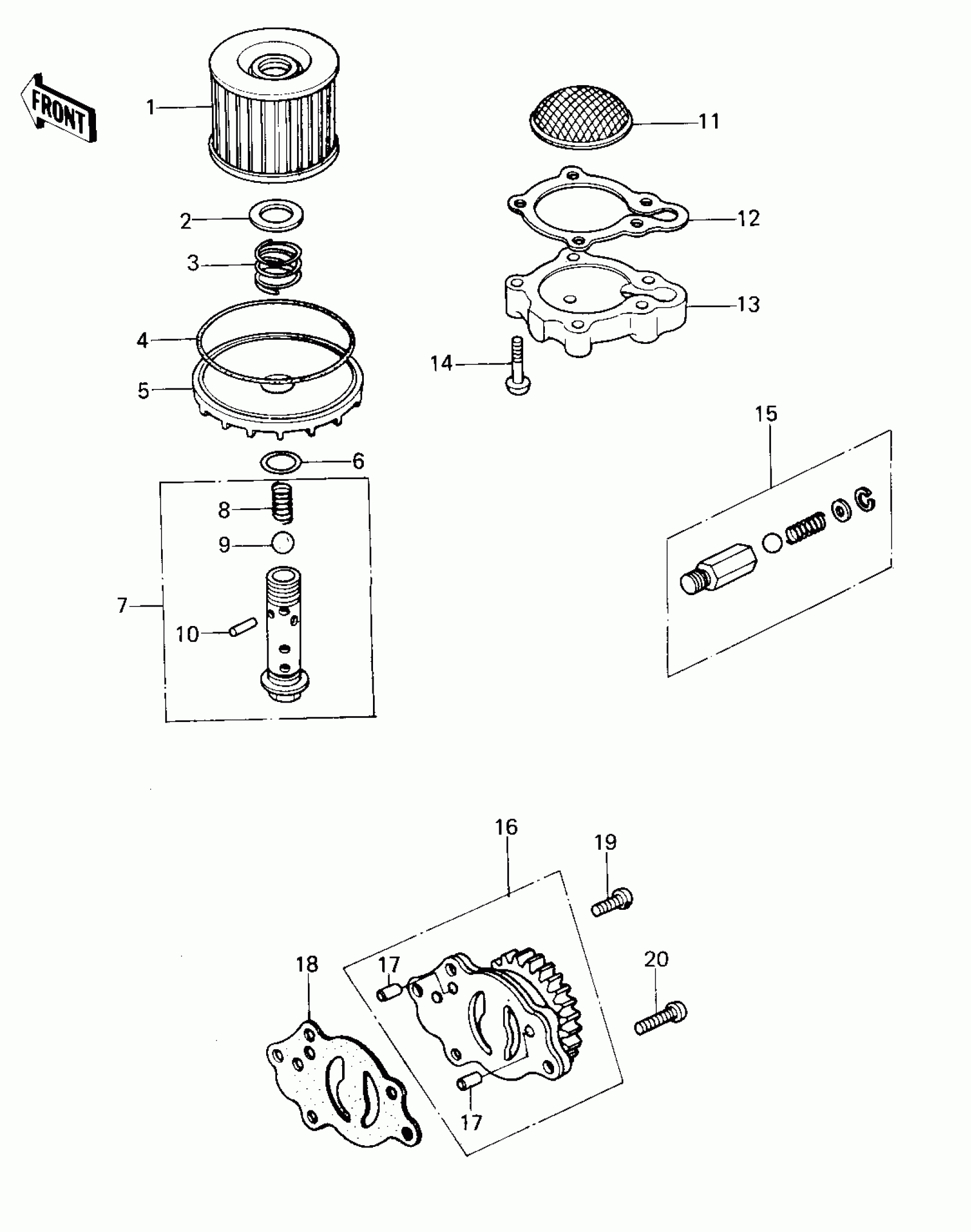

Kawasaki KZ400-C1 OIL PUMP/OIL FILTER Diagram

ELEMENT-OIL FILTER

WASHER,20.5X30X1

SPRING,OIL FILTER

O RING,90MM

COVER,OIL FILTER

O RING,16MM

VALVE,OIL FILTER

SPRING

BALL-STEEL,3/8"

PIN,SPRING,2X20

FILTER,OIL

GASKET,OIL FILTER COVER

COVER,OIL STRAINER

SCREW PAN HEAD 6X30

VALVE-ASSY-RELIEF

OIL PUMP ASSY

PIN-DOWEL,6X12

GASKET,OIL PUMP

SCREW PAN HEAD 6X10

SCREW PAN HEAD 6X25
