Description

Price

1

MUFFLER ASSY

18001-1031

$336.15

2

PIPE,EXHAUST,L.H

18049-1027

$115.81

3

NUT,LOCK 6MM

92017-014

$7.51

4

HOLDER,EX PIPE,BARREL

18069-056-2H

$62.95

5

COLLAR,MUFFLER

92027-1007

$8.03

6

GASKET,EXHAUST PIPE

11060-1242

Unavailable

7

BOLT (6X10)

110R0610

$3.44

8

CLAMP,EXH PIPE CONNCT

92037-180

Unavailable

9

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

10

BRACKET,MUFFLER

18024-031

Unavailable

11

WASHER SPRING 8MM

461F0800

$0.40

12

NUT-HEX-SMALL,8MM

317B0800

$0.67

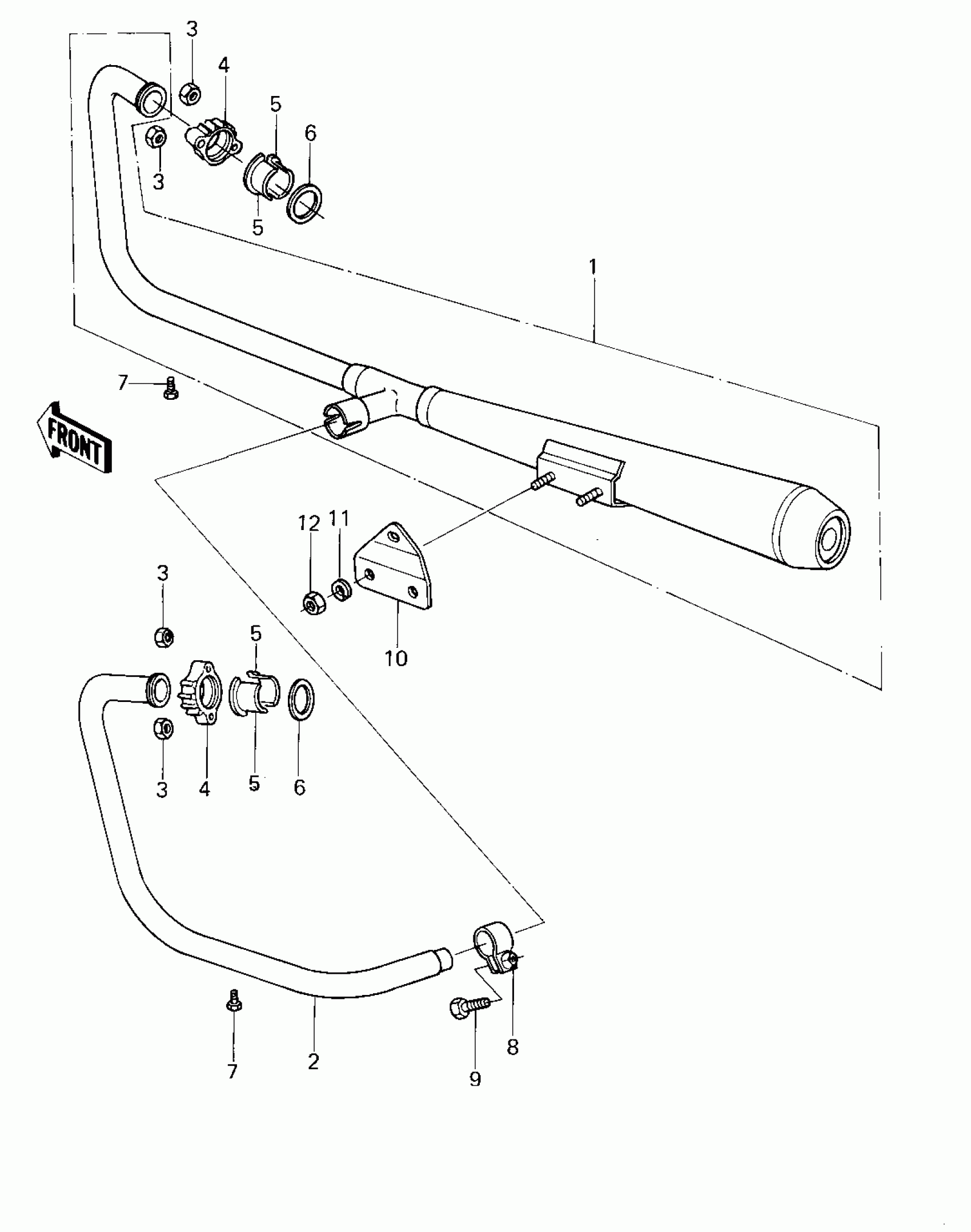

Kawasaki KZ400-C1 MUFFLER Diagram

MUFFLER ASSY

PIPE,EXHAUST,L.H

NUT,LOCK 6MM

HOLDER,EX PIPE,BARREL

COLLAR,MUFFLER

GASKET,EXHAUST PIPE

BOLT (6X10)

CLAMP,EXH PIPE CONNCT

BOLT-SMALL-UPSET 8X25

BRACKET,MUFFLER

WASHER SPRING 8MM

NUT-HEX-SMALL,8MM
