1978 Kawasaki KZ400-C1 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

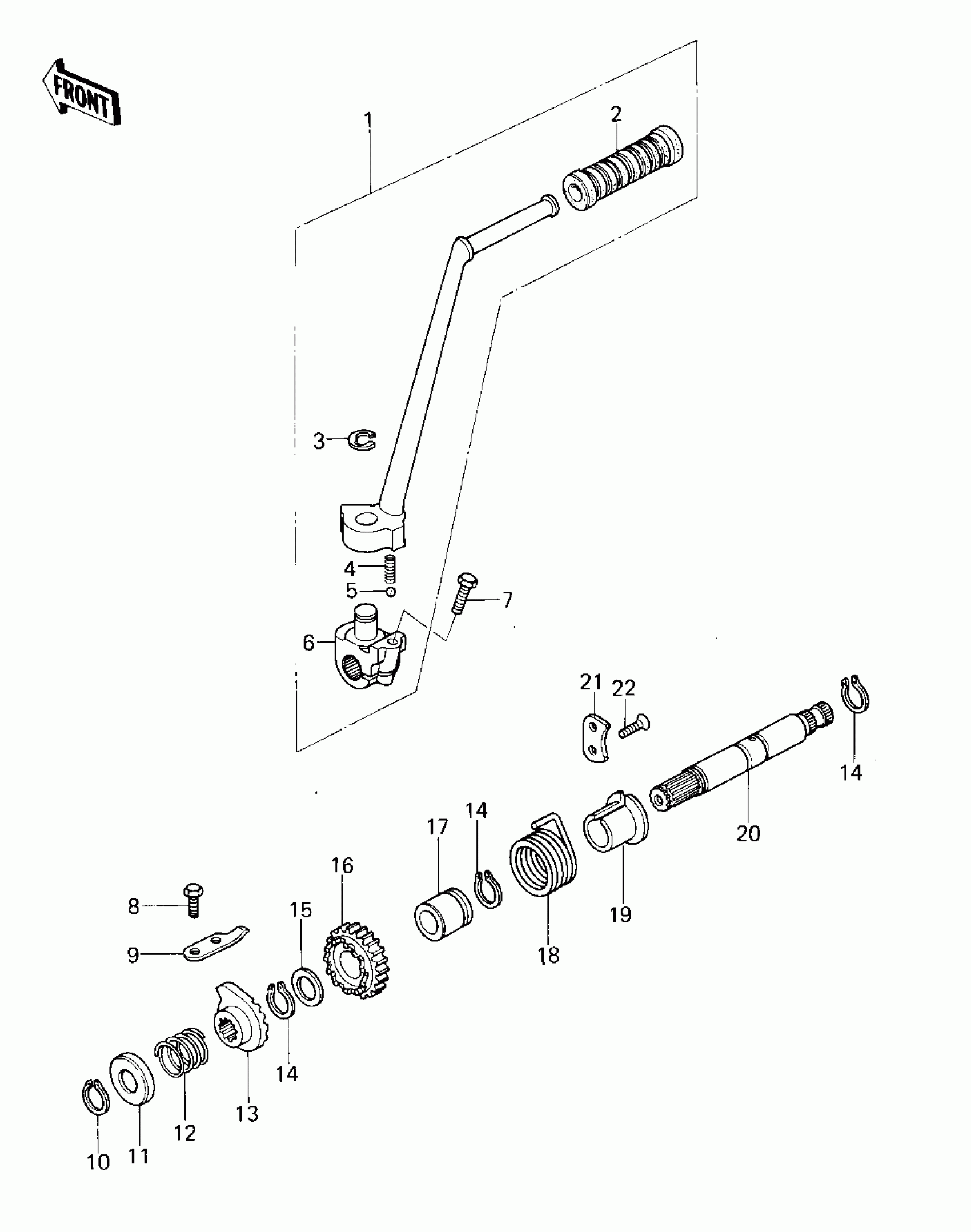

1978 Kawasaki KZ400-C1 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL ASSY,KICK

13064-1002

1
Out of stock

2

DAMPER,KICK PEDAL

13063-004

1
Out of stock

3

CIRCLIP-TYPE-E,9MM

482K9000

1
Out of stock

4

SPRING,KICK PEDAL

92081-020

1
Out of stock

5

BALL-STEEL,1/4

600A0800

1
Out of stock

6

BOSS,KICK PEDAL

13061-1001

1
Out of stock

7

BOLT,FLANGED,8X35

92001-1577

1
Out of stock

8

BOLT-UPSET

112G0614

1
Out of stock

9

STOPPER,KICKSTARTER

13072-012

1
Out of stock

10

CIRCLIP-TYPE-C,19MM

480J1900

1
Out of stock

11

CAP,KICKSTARTER

92102-008

1
Out of stock

12

SPRING RATCHET

92081-104

1
Out of stock

13

RATCHET,KICK SHAFT

13078-011

1
Out of stock

14

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

15

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

16

GEAR,KICK,23T

59051-1002

1
Out of stock

17

BUSHING,KICK SHAFT

92028-175

1
Out of stock

18

SPRING,KICK RETURN

92082-006

1
Out of stock

19

GUIDE,KICK SPRING

13070-009

1
Out of stock

20

SHAFT,KICK

13066-1001

1
Out of stock

21

PLATE-DRUM LEV POSTON

13169-007

1
Out of stock

22

SCREW-CSK-CROS,6X16

221B0616

1
Out of stock
