1978 Kawasaki KZ400-C1 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

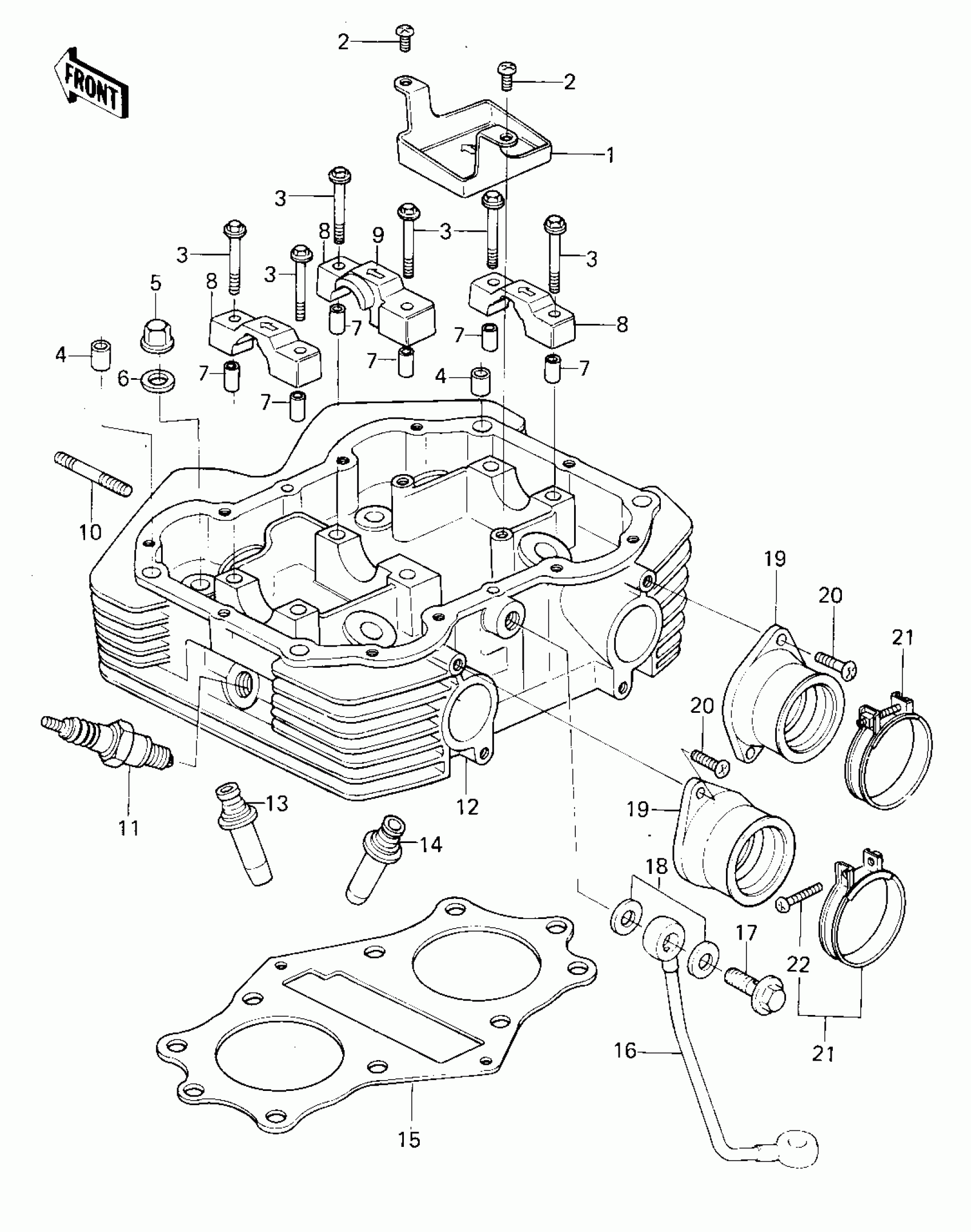

1978 Kawasaki KZ400-C1 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,CYLINDER HEAD OIL

11012-1027

1
Out of stock

2

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

3

BOLT,HEX HEAD,6X38

92003-206

1
Out of stock

4

PIN,DOWEL,10X14

92043-1037

1
Out of stock

5

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

6

WASHER,10.5X22X1.6

92022-1005

1
Out of stock

7

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

8

CAP,BRG,HEAD,L.H&R.H

14022-1002

1
Out of stock

9

CAP,BRG.HEAD,CENTER

14022-1003

1
Out of stock

10

STUD,6X46

92004-049

1
Out of stock

11

SPARK PLUG B7ES

B7ES

1
Out of stock

11

SPARK PLUG B7ES

B7ES

—
Out of stock

12

CYLINDER HEAD

11002-1003

1
Out of stock

13

GUIDE,EXHAUST VALVE

49002-1010

1
Out of stock

14

GUIDE,INLET VALVE

12013-003

1
Out of stock

15

GASKET,CYLINDER HEAD

11004-1008

1
Out of stock

16

PIPE,OIL

32032-1084

1
Out of stock

17

BOLT,BANJO,10X25

92001-1017

1
Out of stock

18

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

19

HOLDER,CARBURETOR

16065-1002

1
Out of stock

20

SCREW PAN HEAD 6X18

220B0618

1
Out of stock

21

CLAMP,CARBURETOR

92037-1021

1
Out of stock

22

SCREW PAN HEAD 5X30

220B0530

1
Out of stock
