Description

Price

1

LIGHT UNIT HEAD

23003-022

Unavailable

2

SCREW ASY FOCUS ADJST

23013-008

Unavailable

3

RIM-LAMP

23006-044

$92.87

4

SCREW ASY LENS UNIT

23013-009

$12.53

5

LENS-COMP,"001-1269" MARK

23007-059

$99.38

6

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

7

BODY,HEAD LIGHT

23005-053

$92.96

8

NUT,10MM

23020-021

Unavailable

9

COLLAR,10.2X13.4X8.1

92027-231

Unavailable

10

WASHER-PLAIN,10MM

411B1000

$0.93

11

BOLT,HEX HEAD,10X25

92007-045

$10.62

12

WASHER

23021-010

$4.31

13

WASHER SPRING 5MM

461F0500

$0.69

14

SCREW,5MM

92011-024

$2.58

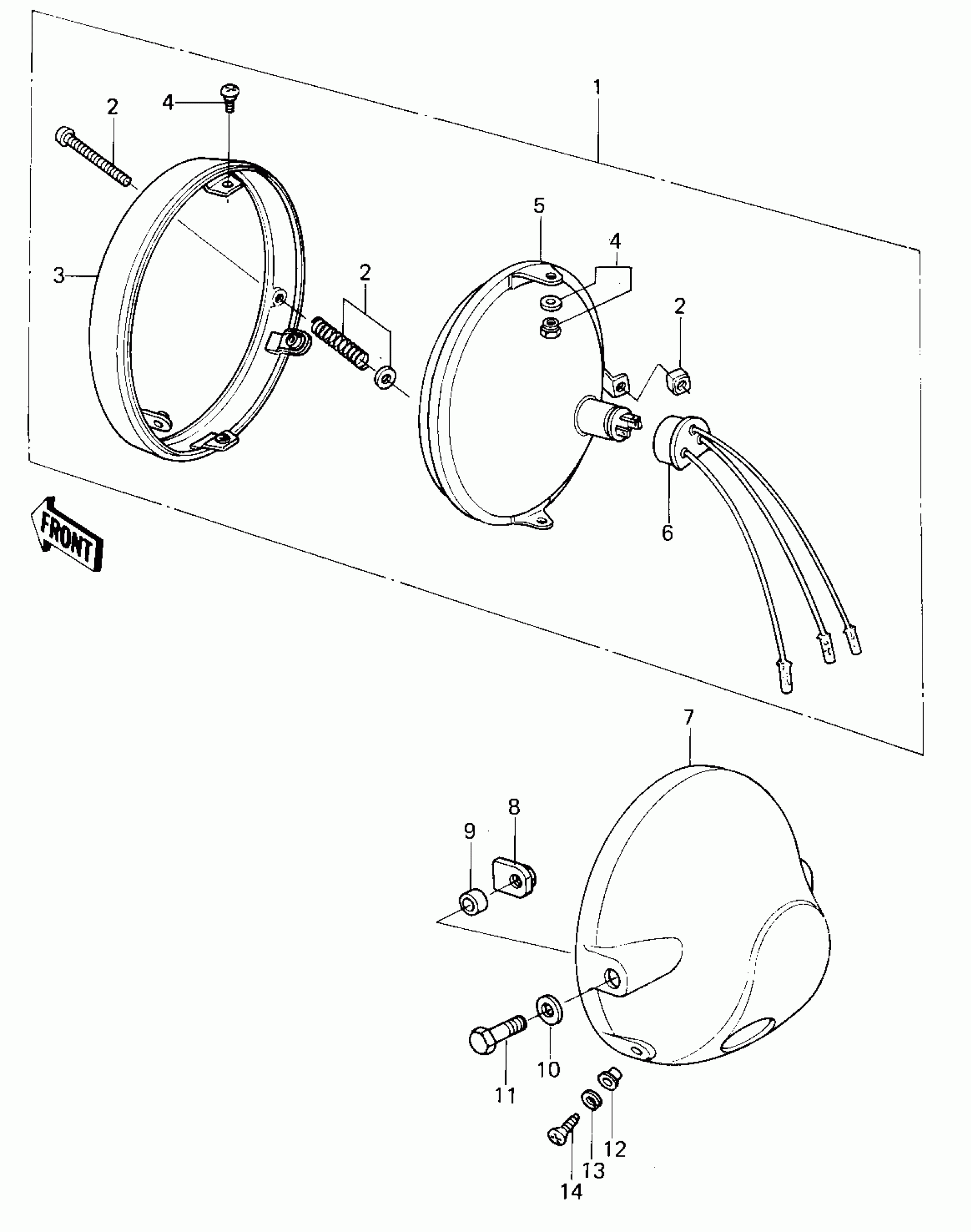

Kawasaki KZ400-C1 HEADLIGHT Diagram

LIGHT UNIT HEAD

SCREW ASY FOCUS ADJST

RIM-LAMP

SCREW ASY LENS UNIT

LENS-COMP,"001-1269" MARK

SOCKET ASSY,HEAD LAMP

BODY,HEAD LIGHT

NUT,10MM

COLLAR,10.2X13.4X8.1

WASHER-PLAIN,10MM

BOLT,HEX HEAD,10X25

WASHER

WASHER SPRING 5MM

SCREW,5MM
