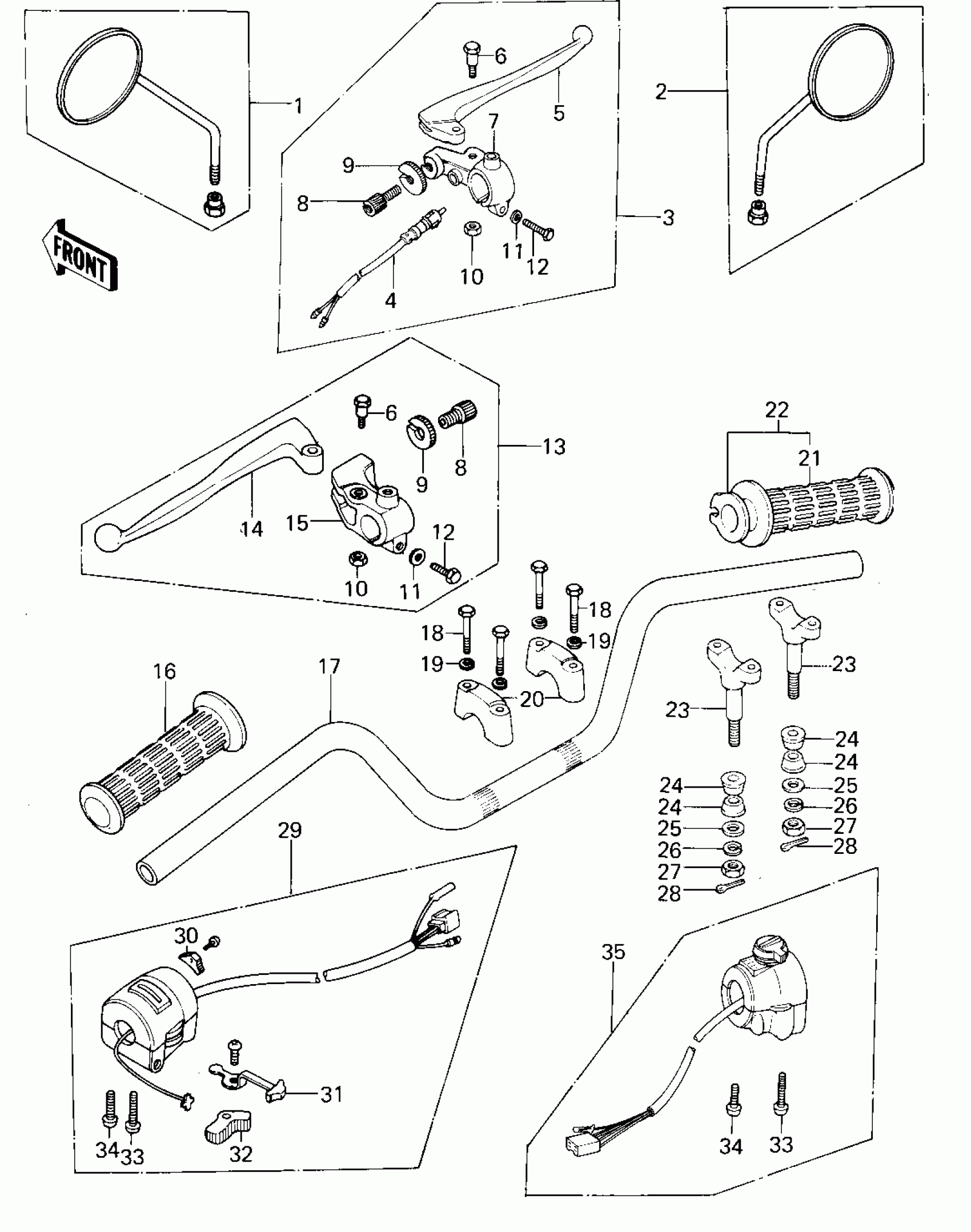

Kawasaki KZ400-C1 HANDLEBAR Diagram
#
Description
Price
1
REAR VIEW MIRROR,L.H.
56001-1015
Unavailable
2
REAR VIEW MIRROR,R.H.
56001-1016
Unavailable
3
LEVER-ASSY-GRIP,BRAKE
46021-031
$47.47
4
SWITCH,FR BRAKE LAMP
27021-004
$35.78
5
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
6
BOLT,5X22
92007-046
$7.62
7
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
$40.69
8
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
9
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
10
NUT,LOCK,5MM
92019-014
$4.50
11
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
12
BOLT HEX HEAD 6X25
110N0625
$5.46
13
LEVER-ASSY-GRIP,CLUTCH
46076-044
$41.66
14
LEVER-GRIP,CLUTCH
46092-015
Unavailable
15
HOLDER,F.BLACK
46094-011-21
Unavailable
16
RUBBER,L.H GRIP
46075-028
$39.98
17
HANDLEBAR
46003-1019
$83.22
18
BOLT 8X38
92001-1405
$16.50
19
WASHER SPRING 8MM
461F0800
$0.40
20
HOLDER-HANDLE,UPP
46012-008
$37.74
21
RUBBER,R.H GRIP
46061-018
Unavailable
22
GRIP ASSY,THROTTLE
46019-038
$118.44
23
HOLDER-HANDLE,LWR
46012-010
$30.76
24
DAMPER,HANDLE HOLDER
92075-039
$4.69
25
PLATE,HANDLE HOLDER
46016-003
Unavailable
26
WASHER SPRING 10MM
461F1000
$0.67
27
NUT-HEX-FINE,10MM
314B1000
$0.67
28
PIN-SNAP,8MM
554A0800
$1.26
29
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
30
KNOB,LIGHTING SW L.H
46044-013
$12.37
31
KNOB,LIGHTING SW L.H
46043-005
Unavailable
32
BUTTON, HORN PUSH
46028-006
Unavailable
33
SCREW-PAN-CROS
220B0535
$3.70
34
SCREW PAN HEAD 5X30
220B0530
$3.41
35
HOUSING ASSY,R,H,
46091-1043
$119.01
