Description

Price

1

STATOR.ASSY,GENERATER

21003-1009

Unavailable

2

BOLT,10X40

92002-1303

Unavailable

3

BOLT-SOCKET,6X28

120P0628

$4.65

4

FLYWHEEL

21050-1004

$909.80

5

COLLAR

92027-1046

$21.18

6

PLATE,LEAD CLAMP

13169-1008

Unavailable

7

SCREW PAN HEAD 6X10

220B0610

$3.14

8

CLAMP,WIRING HARNESS

21126-008

$4.73

9

NUT-6MM

322N0600

$1.08

10

COVER,STARTER

14025-1284

Unavailable

11

GASKET,STARTER COVER

11009-1006

Unavailable

12

STUD

92004-055

Unavailable

13

GROMMET

92071-1006

Unavailable

14

"0" RING,0R42.5X2

92055-1019

Unavailable

15

PLUG,STARTER

92066-1015

Unavailable

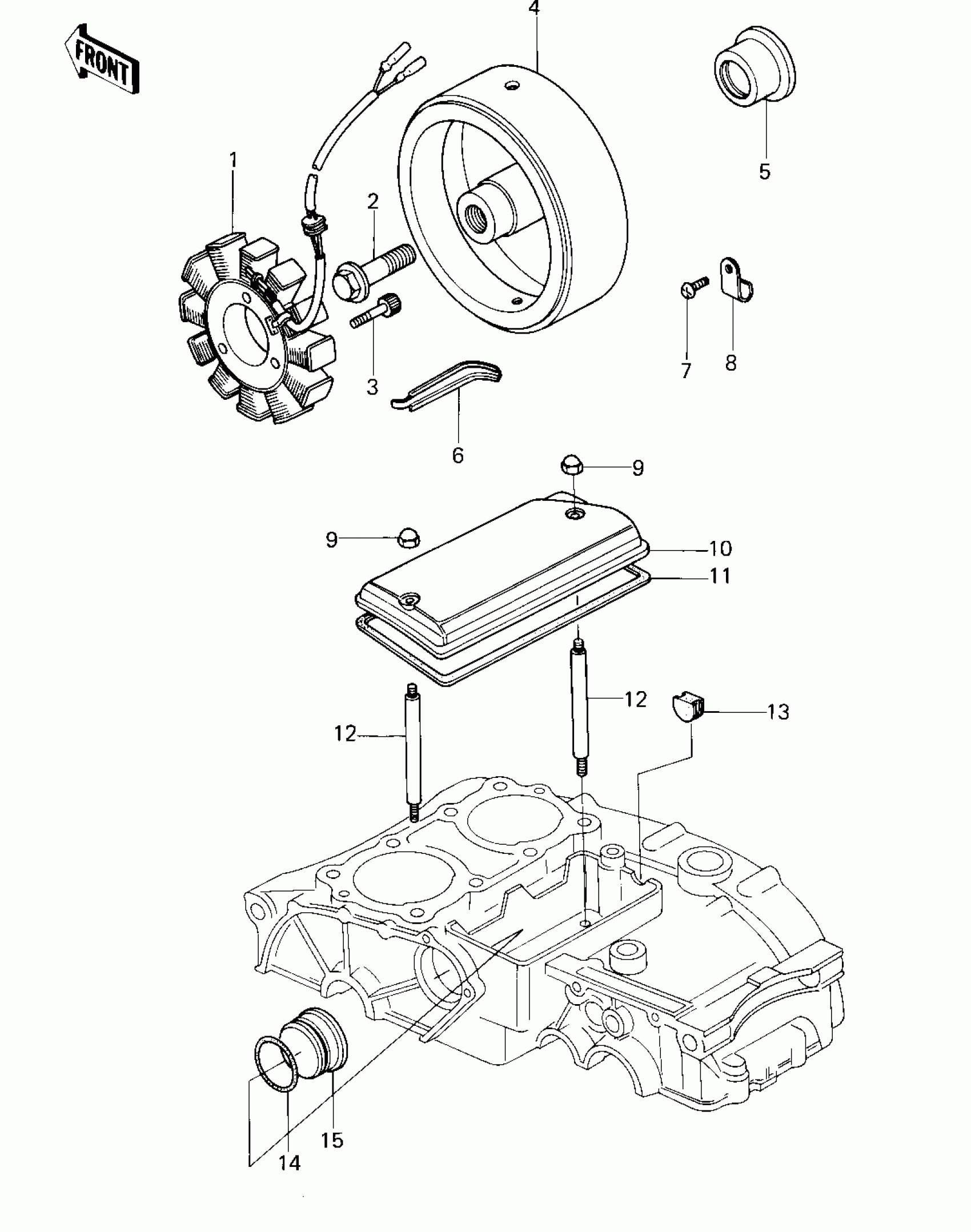

Kawasaki KZ400-C1 GENERATOR Diagram

STATOR.ASSY,GENERATER

BOLT,10X40

BOLT-SOCKET,6X28

FLYWHEEL

COLLAR

PLATE,LEAD CLAMP

SCREW PAN HEAD 6X10

CLAMP,WIRING HARNESS

NUT-6MM

COVER,STARTER

GASKET,STARTER COVER

STUD

GROMMET

"0" RING,0R42.5X2

PLUG,STARTER
