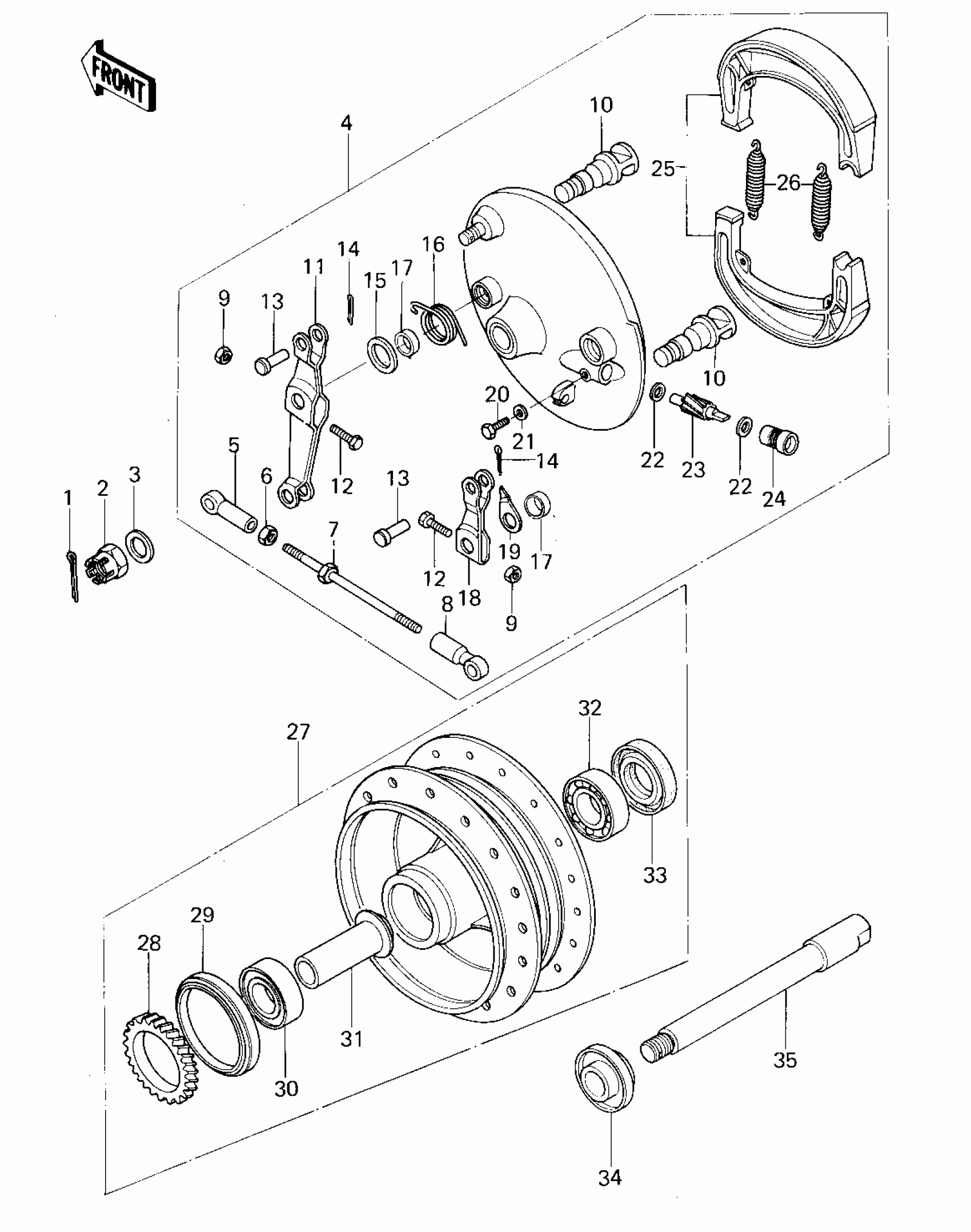

Find the part on the Front Hub/brake diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Kawasaki KZ400-C1 Front Hub/brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIN-COTTER,3.0X25

550D3025

1
Out of stock

2

NUT,CASTLE,14MM

42045-020

1

$7.80

In stock

3

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

4

PANEL-ASY,FR BRK

41035-1005

1

$385.23

In stock

5

ROD END,BRK CONNECT

41058-008

1
Out of stock

6

NUT-HEX

311B0500

1

$0.51

In stock

7

ROD BRK CAM LEV CONCT

41057-004

1
Out of stock

8

ROD END,BRK CONNECT

41058-009

1
Out of stock

9

NUT,6MM

41072-007

1

$3.12

In stock

10

1

$47.79

In stock

11

LEVER FRT BRK CAM 1ST

41053-011

1
Out of stock

12

BOLT-UPSET

112G0630

1
Out of stock

13

1

$8.78

In stock

14

1

$1.73

In stock

15

WASHER,BRAKE CAMSHAFT

41052-005

1
Out of stock

16

SPRING FR BRK CAM LEV

41056-001

1
Out of stock

17

SEAL,BRAKE CAM

41051-001

1

$3.39

In stock

18

LEVER FRT BRK CAM 2ND

41053-012

1
Out of stock

19

1

$7.85

In stock

20

BOLT-UPSET

112G0618

1
Out of stock

21

WASHER PLAIN 6MM

411B0600

1
Out of stock

22

WASHER PINION THRUST

41063-003

1
Out of stock

23

PINION SPEEDOMETER

41060-007

1
Out of stock

24

1

$30.16

In stock

25

SHOE,BRAKE

41048-019

1
Out of stock

26

SPRING FRNT BRK SHOE

41049-004

1
Out of stock

27

DRUM-ASSY,FR BRK

41034-1008

1

$212.18

In stock

28

1

$15.88

In stock

29

OIL SEAL WOC55687

92050-017

1
Out of stock

30

1

$25.71

In stock

31

1

$7.93

In stock

32

1

$8.80

In stock

33

OIL SEAL WTC25428

92052-005

1
Out of stock

34

COLLAR,FRONT AXLE

92027-1049

1
Out of stock

35

AXLE,FRONT

41068-045

1
Out of stock
