Description

Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

WASHER,25X36X2.3

92022-250

$5.00

3

PIN,8X31

92043-080

$5.52

4

HOLDER-STEP,FR,LH

34003-1078

$56.43

5

PIN COTTER 2.5X16

550D2516

$2.79

6

BOLT-HEX HEAD,12X36

113B1236A

$5.16

7

WASHER-SPRING,12MM

461F1200

$0.96

8

HOLDER-STEP,FR,RH

34003-1079

$29.88

9

BAR-FOOTREST,R.H

34028-012

$29.20

10

RUBBER,FOOTREST

92076-027

$37.21

11

WASHER-PLAIN (OPT)

92022-199

Unavailable

12

BRACKET,STEP

32054-1021

Unavailable

13

PIN,6X28

92043-1464

$8.10

14

PIN-COTTER,2.0X12

550D2012

$1.11

15

BOLT,HEX HEAD,10X50

92001-1254

$4.38

16

WASHER PLAIN 10MM

410B1000

$0.58

17

WASHER SPRING 10MM

461F1000

$0.67

18

NUT-HEX-FINE,10MM

314B1000

$0.67

19

BOLT-SMALL-FINE,10X45

113G1045

$3.98

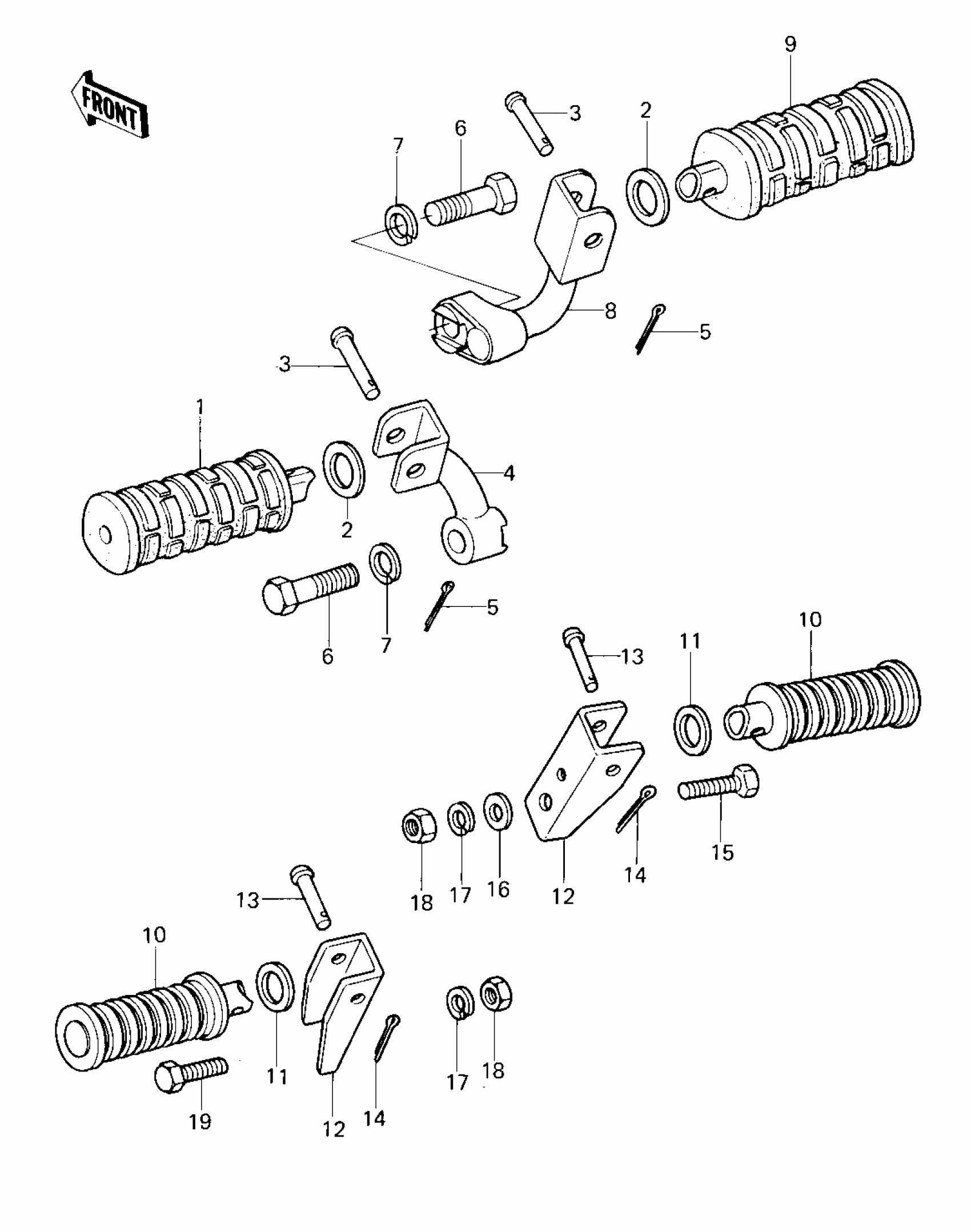

Kawasaki KZ400-C1 FOOTRESTS Diagram

BAR-FOOTREST,L.H

WASHER,25X36X2.3

PIN,8X31

HOLDER-STEP,FR,LH

PIN COTTER 2.5X16

BOLT-HEX HEAD,12X36

WASHER-SPRING,12MM

HOLDER-STEP,FR,RH

BAR-FOOTREST,R.H

RUBBER,FOOTREST

WASHER-PLAIN (OPT)

BRACKET,STEP

PIN,6X28

PIN-COTTER,2.0X12

BOLT,HEX HEAD,10X50

WASHER PLAIN 10MM

WASHER SPRING 10MM

NUT-HEX-FINE,10MM

BOLT-SMALL-FINE,10X45
