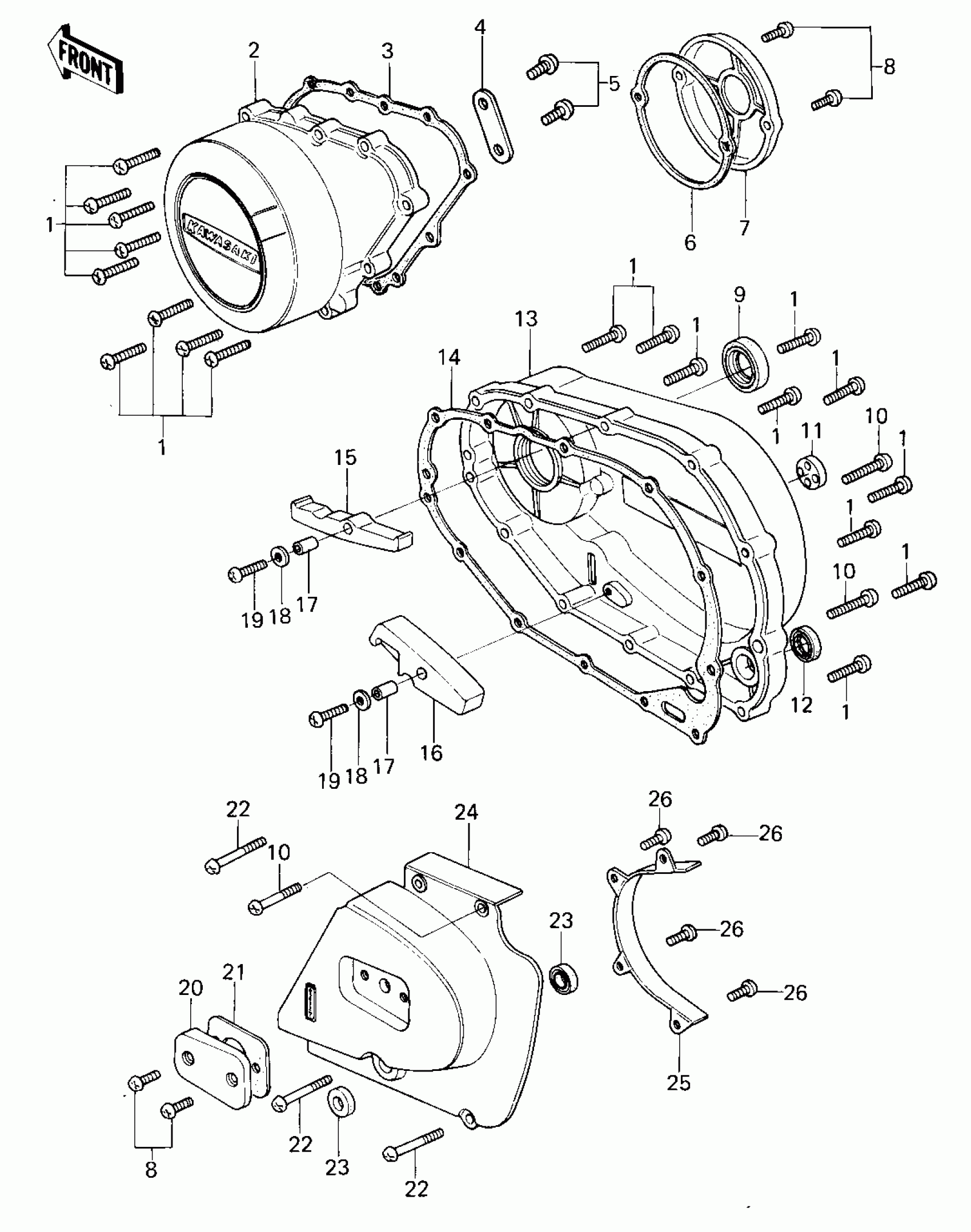

Kawasaki KZ400-C1 ENGINE COVERS Diagram
#
Description
Price
1
SCREW PAN HEAD 6X30
220B0630
$3.41
2
COVER, DYNAMO
14031-1001-80
Unavailable
3
GASKET,GENERATER COV.
11009-1032
Unavailable
4
PLATE,DYNAMO LEAD
13169-1080
Unavailable
5
SCREW PAN HEAD 5X8
220B0508
$0.46
6
GASKET,BREAKER COVER
14050-010
Unavailable
7
COVERBRK POINT,BUFF
14027-019-80
Unavailable
8
SCREW PAN HEAD 6X18
220B0618
$3.67
9
SEAL-OIL,S25407
92050-065
Unavailable
10
SCREW PAN HEAD 6X40
220B0640
Unavailable
11
GAUGE,OIL LEVEL
52015-004
$48.05
12
SEAL-OIL,SB20285
92049-012
$10.89
13
COVER,CLUTCH,BUFF
14032-1013
Unavailable
14
GASKET,CLUTCH COVER
11009-1033
Unavailable
15
GUIDE,PRIMARY CHAIN
12053-1004
Unavailable
16
GUIDE,PRIMARY CHAIN
12053-1005
Unavailable
17
COLLAR,6.2X8.1X15
92027-1079
$3.96
18
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
19
SCREW PAN HEAD 6X25
220B0625
$2.60
20
COVER,CLUTCH ADJUSTNG
14028-006-80
Unavailable
21
GASKET,CLUTCH ADJ CAP
14049-004
$10.50
22
SCREW PAN HEAD 6X50
220B0650
$1.25
23
SEAL-OIL,TB13225.5
92051-005
$7.74
24
COVER,CHAIN
14026-1001-80
Unavailable
25
GUIDE,CHAIN
12053-1009
Unavailable
26
SCREW PAN HEAD 6X10
220B0610
$3.14
