Description

Price

1

CYLINDER

11005-1002

Unavailable

2

PIN,DOWEL,10X14

92043-1037

$0.74

3

GASKET,CYLINDER BASE

11009-1176

Unavailable

4

RING SET,PISTON,STD

13008-5019

Unavailable

4

RING SET,0.020",O.S.

13025-5010

Unavailable

4

RING SET,0.040",O.S.

13024-5010

Unavailable

5

PISTON,STD

13001-1001

Unavailable

5

PISTON,0.020",O/S

13029-1006

Unavailable

5

PISTON,0.040",O/S

13027-1008

Unavailable

6

PIN-PISTON

13002-1001

$6.22

7

RING-SNAP

92036-005

$4.07

8

CONNECTING ROD ASSY,J

13251-1008-JJ

Unavailable

8

CONNECTING ROD ASSY,J

13251-1008-JJ

Unavailable

8

CONNECTING ROD ASSY,J

13251-1008-JJ

Unavailable

9

BOLT,CONNECTING ROD,7MM

92001-1793

$8.58

10

NUT,7MM

92016-060

$5.52

11

METAL,CONNECT ROD BRG

13034-050

Unavailable

11

METAL,CONNECT ROD BRG

13034-051

$34.53

11

METAL,CONNECT ROD BRG

13034-052

$32.14

12

CRANKSHAFT ASSY

13037-1034

Unavailable

13

BUSHING,CRANKSHAFT,BROWN

92028-1102

$16.90

14

SCREW,SLOTTED,6X8

291H0608

$2.53

15

PIN-SPRING,4X8

555A0408

$3.92

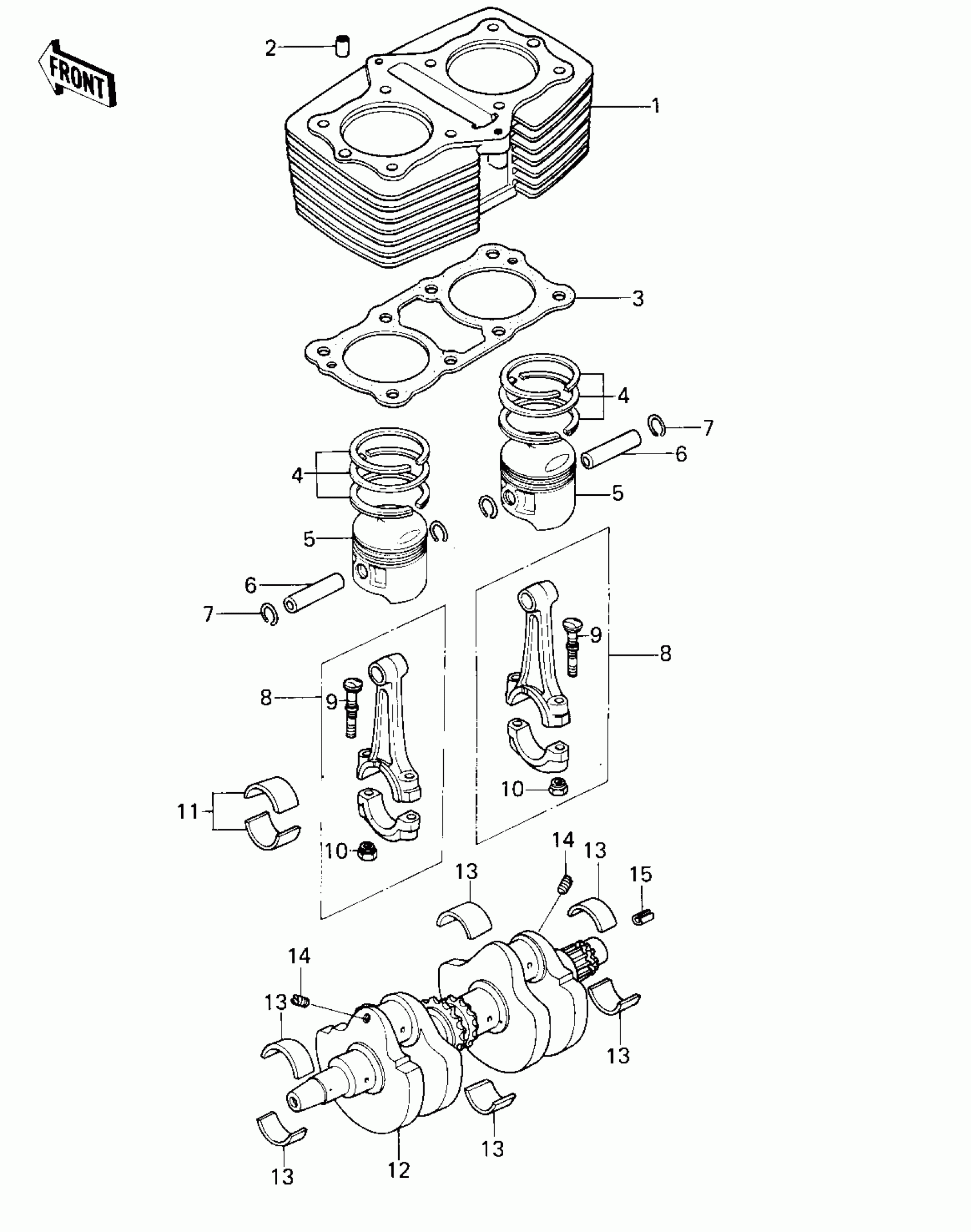

Kawasaki KZ400-C1 CYLINDER/PISTONS/CRANKSHAFT Diagram

CYLINDER

PIN,DOWEL,10X14

GASKET,CYLINDER BASE

RING SET,PISTON,STD

RING SET,0.020",O.S.

RING SET,0.040",O.S.

PISTON,STD

PISTON,0.020",O/S

PISTON,0.040",O/S

PIN-PISTON

RING-SNAP

CONNECTING ROD ASSY,J

CONNECTING ROD ASSY,J

CONNECTING ROD ASSY,J

BOLT,CONNECTING ROD,7MM

NUT,7MM

METAL,CONNECT ROD BRG

METAL,CONNECT ROD BRG

METAL,CONNECT ROD BRG

CRANKSHAFT ASSY

BUSHING,CRANKSHAFT,BROWN

SCREW,SLOTTED,6X8

PIN-SPRING,4X8
