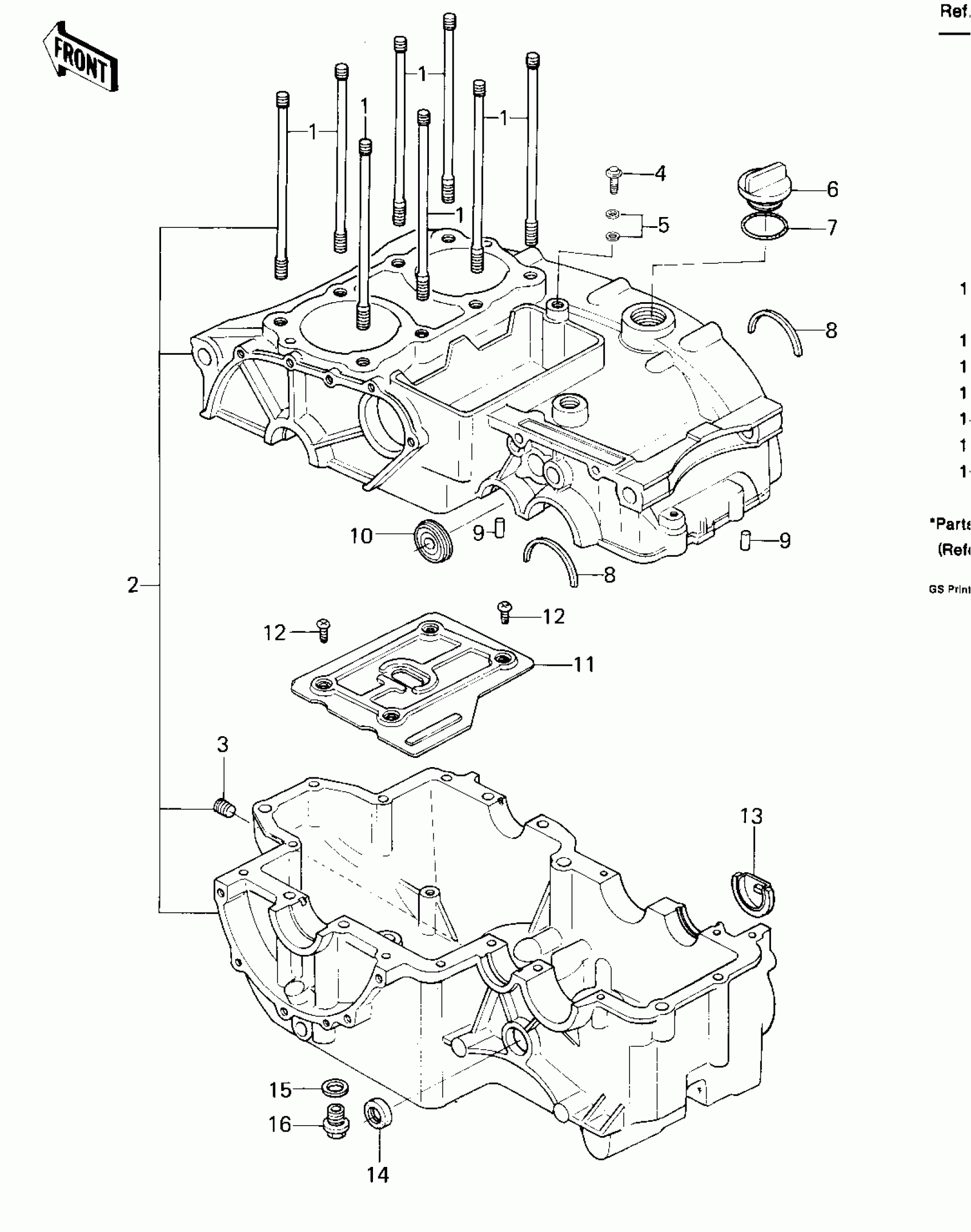

Kawasaki KZ400-C1 CRANKCASE Diagram

#

Description
Price

1*

STUD,10X153

92004-062

$18.74

1*

STUD,10X153

92004-062

$18.74

2*

CRANKCASE SET

14001-5010

Unavailable

2*

CRANKCASE SET

14001-5010

Unavailable

3*

PLUG,OIL LINE,1/8X7

92066-059

Unavailable

3*

PLUG,OIL LINE,1/8X7

92066-059

Unavailable

4

BOLT,BANJO,10X25

92001-1017

Unavailable

5

GASKET,10X14.5X1.5

11009-1105

$6.51

6

CAP-OIL FILLER

16115-013

$19.96

7

RING-O,31.5X2.6

92055-049

$4.31

8

RING-POSITION

14013-004

$10.19

9

PIN,DOWEL,6X16

92042-016

$5.00

10

OIL SEAL,PUSH ROD

92050-068

$32.73

10

OIL SEAL,PUSH ROD

92049-1041

$25.75

11

PLATE,CRANKCASE

13169-1103

Unavailable

12

SCREW PAN HEAD 6X12

220B0612

Unavailable

13

RECEIVER,OIL

13045-1001

Unavailable

14

SEAL-OIL,TB13225.5

92051-005

$7.74

15

GASKET,12X22X2

92065-097

$0.74

16

PLUG,OIL DRAIN,12X15

92066-1174

$6.16
