1978 Kawasaki KZ400-C1 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1978 Kawasaki KZ400-C1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

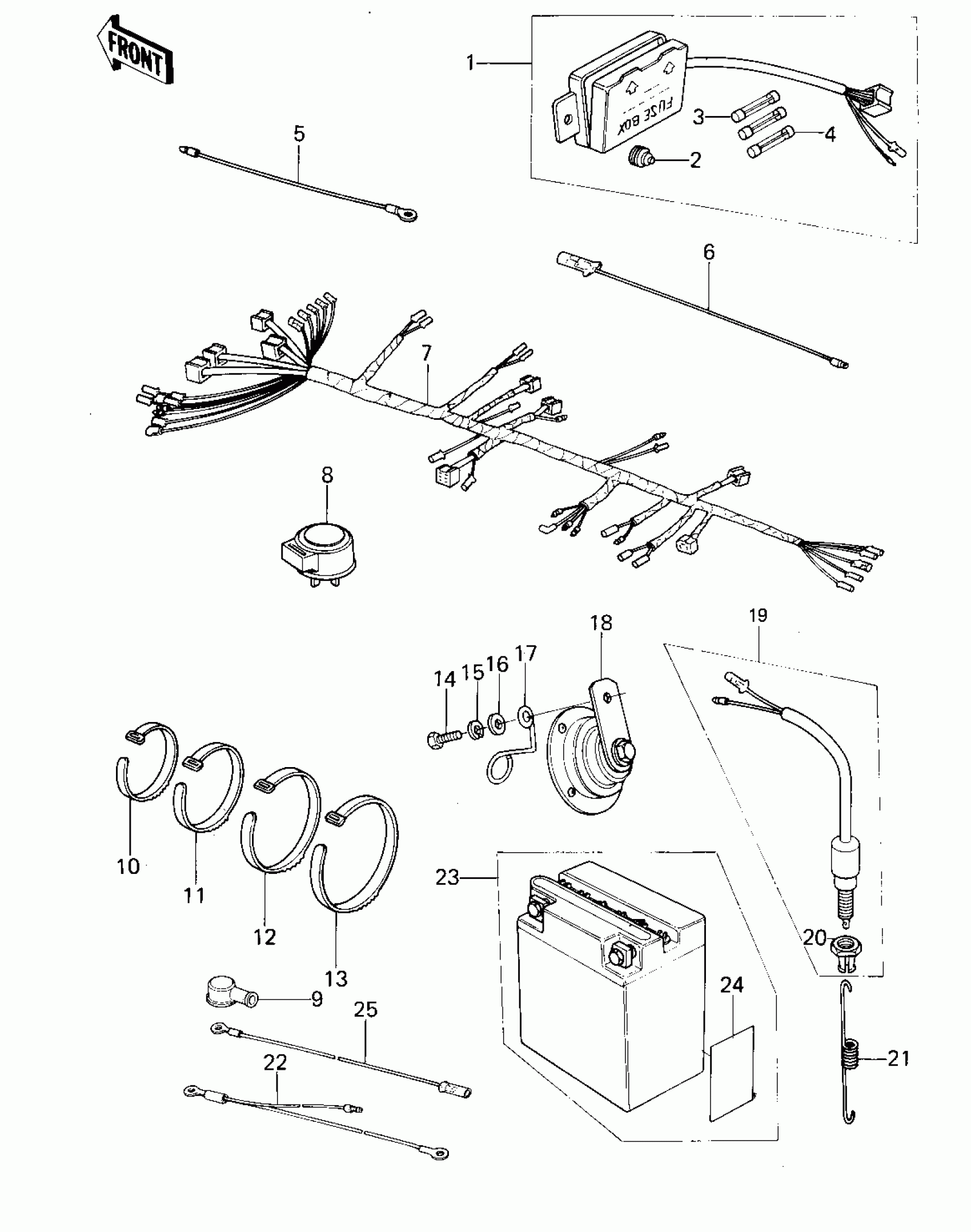

1978 Kawasaki KZ400-C1 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUSE-ASSY

26004-035

1
Out of stock

2

DAMPER,FUSE

92075-279

1
Out of stock

3

FUSE,20A,L=25

26006-005

1
Out of stock

4

FUSE,10A,L=25

26006-003

1
Out of stock

5

LEAD WIRE,SIGNAL LAMP

26011-063

1
Out of stock

6

WIRE,LEAD,REAR SIGNAL

26011-1021

1
Out of stock

7

HARNESS,MAIN

26001-1128

1
Out of stock

8

RELAY-ASSY,TURN SIGNAL

27002-011

1
Out of stock

9

CAP BAT TERMINAL RUBB

92073-001

1
Out of stock

10

BAND,L=95

92072-067

1
Out of stock

11

BAND,L=123

92072-030

1
Out of stock

12

BAND,L=149

92072-031

1
Out of stock

13

BAND,L=218

92072-032

1
Out of stock

14

BOLT,8X20

115G0820

1
Out of stock

15

WASHER SPRING 8MM

461F0800

1
Out of stock

16

WASHER PLAIN 8MM

410B0800

1
Out of stock

17

CLAMP,CABLE

92037-155

1
Out of stock

18

HORN

27003-1005

1
Out of stock

19

SWITCH,BRAKE LAMP

27010-025

1
Out of stock

20

NUT,BRAKE LAMP SWITCH

27037-001

1
Out of stock

21

SPRING,BRAKE LIGHT SW

27011-015

1
Out of stock

22

WIRE,LEAD,BATTERY GRD

26011-1024

1
Out of stock

23

YUA BAT 12N5.5-4A

K26012-022

1
Out of stock

24

LABEL-WARNING,BATTERY

56040-1036

1
Out of stock

25

WIRE,LEAD,BATTERY

26011-1023

1
Out of stock
