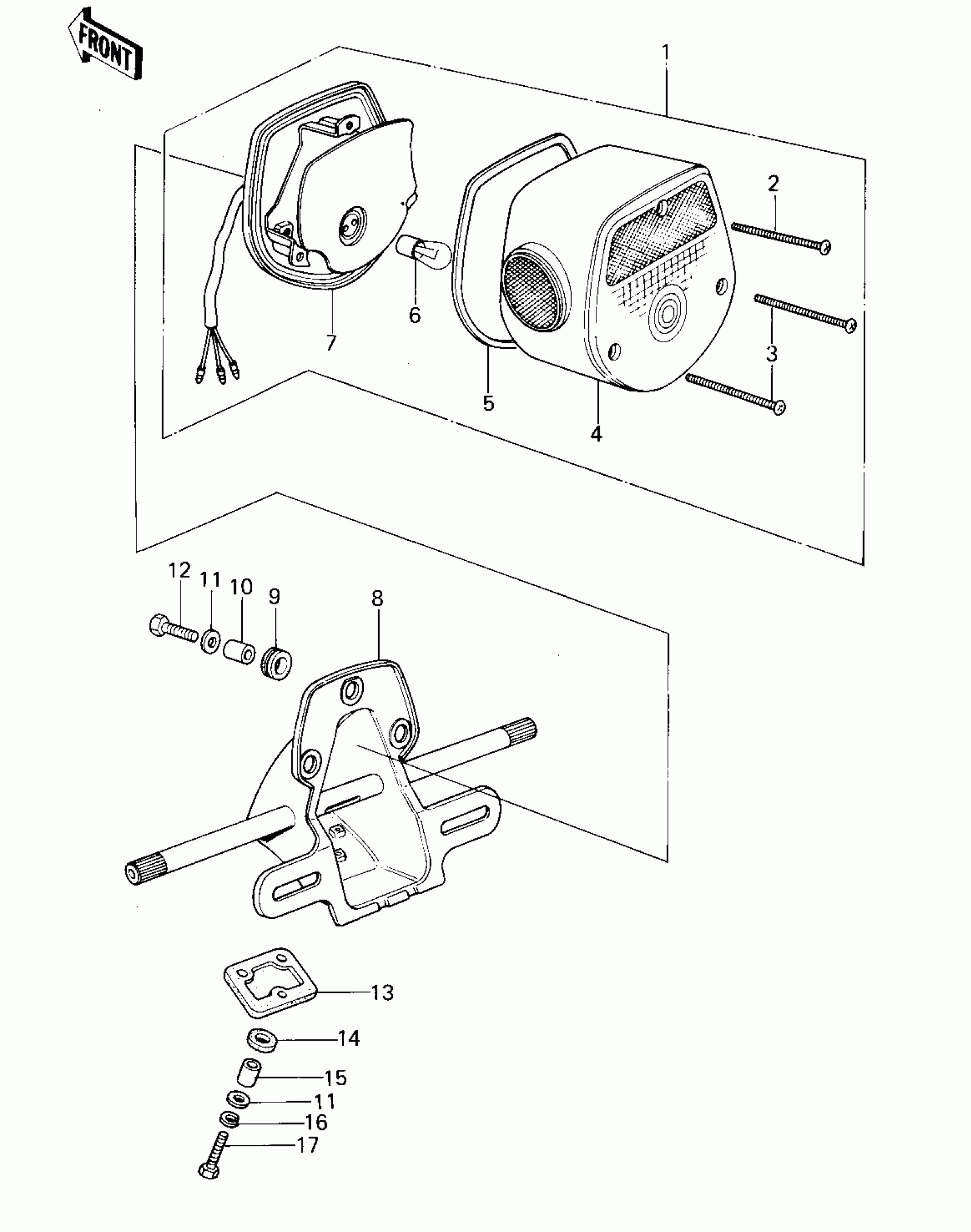

Kawasaki KZ400-C1 TAILLIGHT Diagram

#

Description
Price

1

LAMP-TAIL

23025-1031

Unavailable

2

SCREW

220R0455

$4.44

3

SCREW PAN HEAD 4X50

220E0450

$5.37

4

LENS,TAIL LAMP

23026-028

$57.72

5

GASKET,TAIL LAMP LENS

23028-019

Unavailable

6

BULB,12V 27/8W

92069-059

$6.19

7

BODY-COMP-TAIL LAMP

23027-1019

$68.34

8

BRACKET,TAIL LAMP

23036-1002

Unavailable

9

DAMPER RUBBER

92075-076

$3.80

10

COLLAR,6.8X10X8.5

92027-129

$3.81

11

WASHER,6.5X20X1.6

92022-125

$1.08

12

BOLT-UPSET,6X20

112G0620

Unavailable

13

DAMPER,TAIL LAMP

35039-004

$17.22

14

DAMPER,FENDER

92075-121

$3.49

15

COLLAR,6.8X10X14.5

92027-156

$3.81

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET

112G0625

Unavailable
