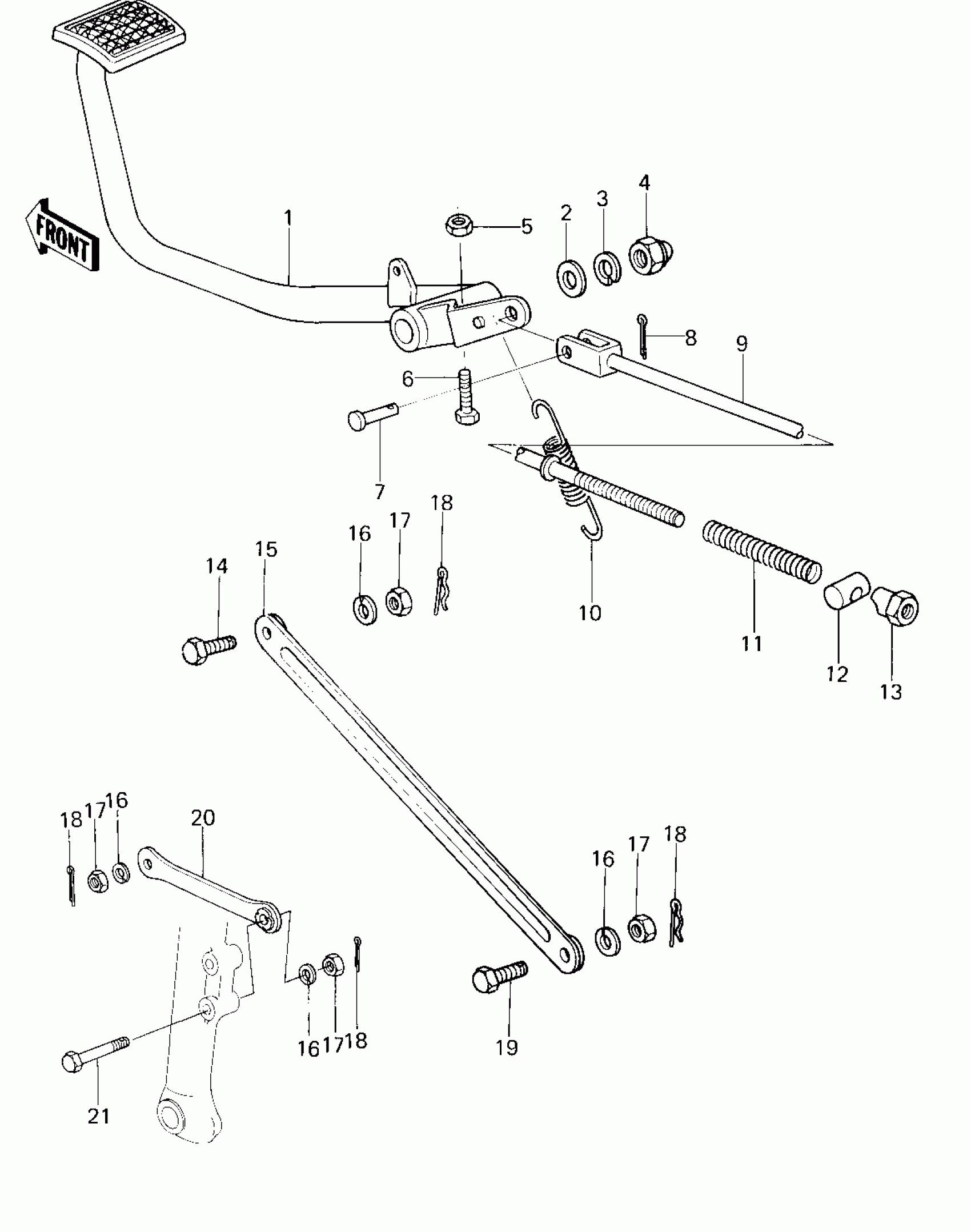

Kawasaki KZ400-C1 BRAKE PEDAL/TORQUE LINK Diagram

#

Description
Price

1

PEDAL,BRAKE

43001-1010

$189.14

2

WASHER,8.5X20X1.6

92022-1561

$4.31

3

WASHER SPRING 8MM

461F0800

$0.40

4

NUT,CAP AND LOCK,8MM

92019-013

$14.88

5

NUT 6MM

311B0600

$0.93

6

BOLT,6X25

92001-1090

$4.11

7

PIN,BRAKE ROD FITTING

92043-090

Unavailable

8

PIN COTTER 2.5X16

550D2516

$2.79

9

ROD,BRAKE

43011-026

$18.69

10

SPRING,BRAKE PEDAL

43005-029

$9.34

11

SPRING,BRAKE ROD

43012-001

$4.65

12

PIN,BRAKE ROD

92043-065

$5.57

13

NUT,BRAKE ROD

92015-042

$6.22

14

BOLT,10X25

92003-017

Unavailable

15

TORQUE LINK REAR BRK

43007-016

Unavailable

16

WASHER SPRING 10MM

461F1000

$0.67

17

NUT-HEX-FINE,10MM

315B1000

$0.58

18

PIN-SNAP,8MM

554A0800

$1.26

19

BOLT,10X35

92003-034

$13.21

20

ROD,TORQUE

43007-1004

$13.67

21

BOLT,10X62

92001-1070

$3.45
